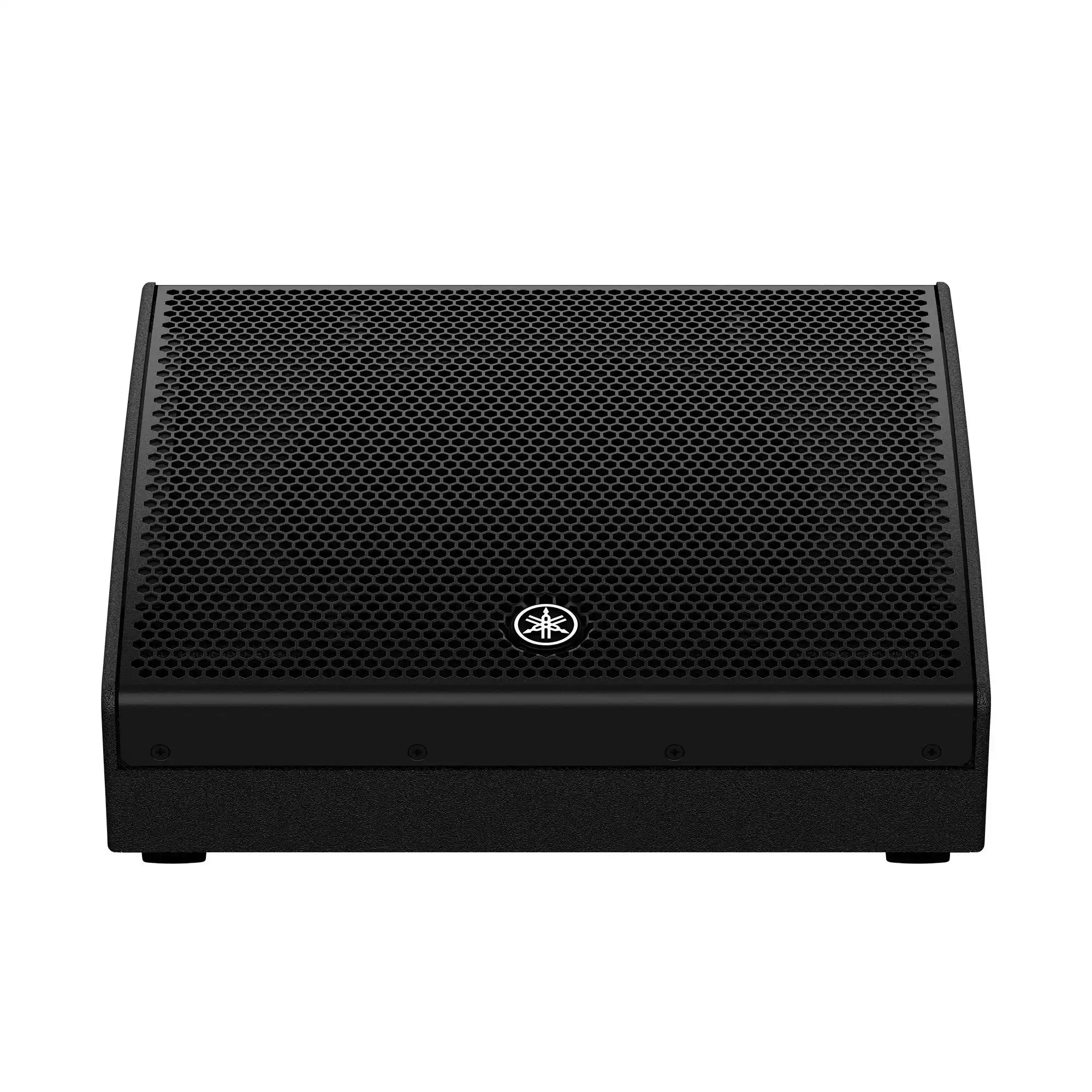

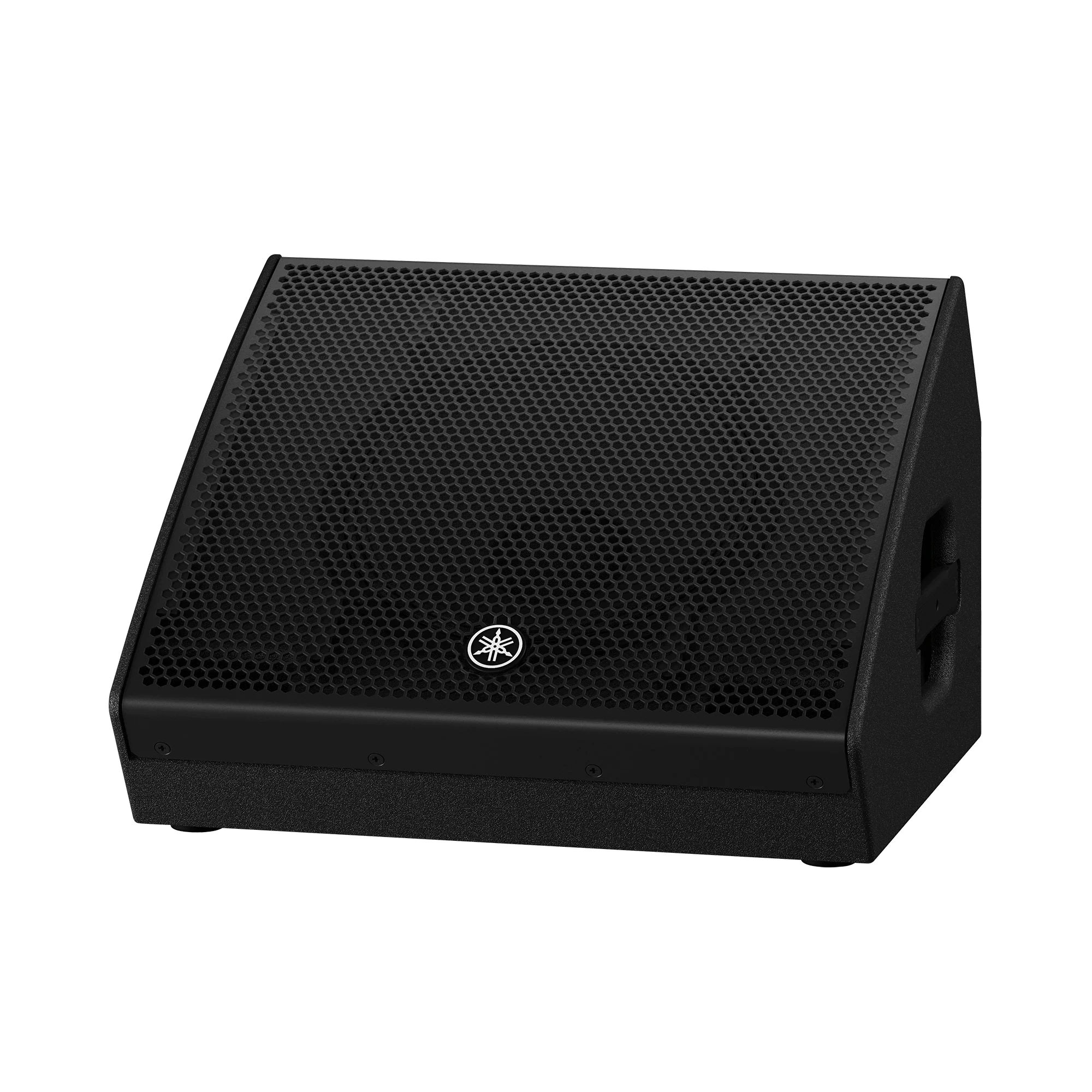

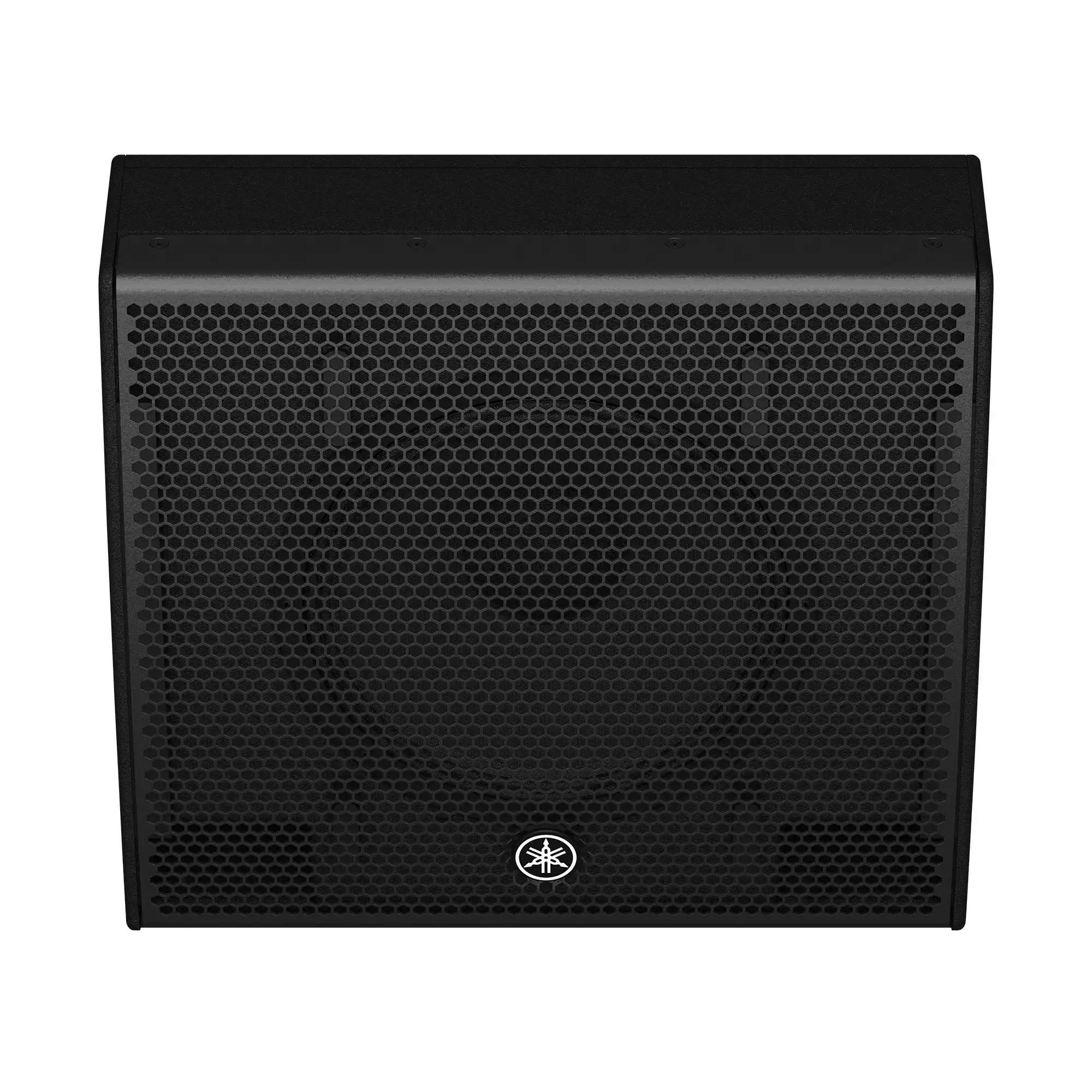

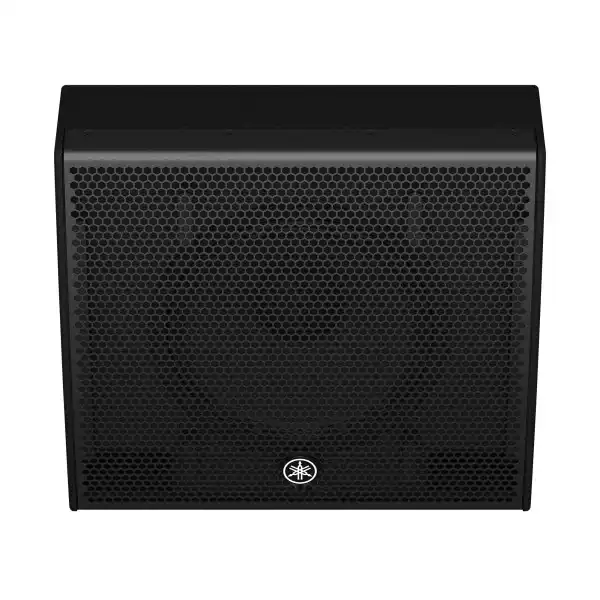

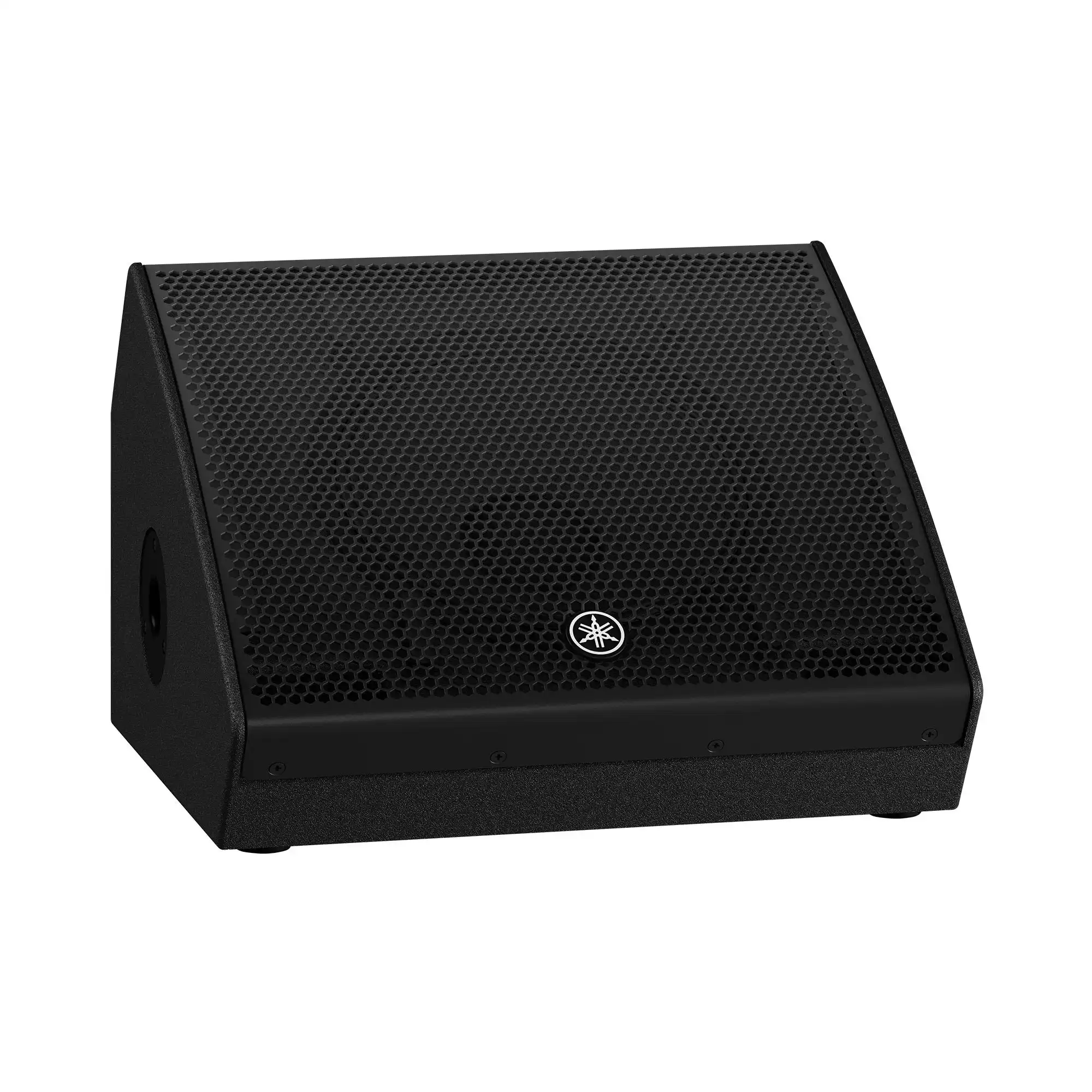

Check DeliveryThe DHR12M is a 2-way bi-amp powered loudspeaker with a 12-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration, perfect for use as a floor monitor. Combining a 1000W amplifier and high performance DSP with the same plywood construction found on Yamaha’s high-end DZR Series, the DHR12M offers best-in-class sound quality and durability.
The DHR and CHR Series are ideal solutions for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class. Each model has been optimized to meet the demands of a variety of sound reinforcement applications.
Premium quality. Performance-driven loudspeakers. The Yamaha legacy. Get it all in the Yamaha DHR and CHR range of speakers, which offer matchless clarity, sound, and versatility. Get them now!
| DHR12M | ||
|---|---|---|
| Speaker type | 2-way, Bi-amped Powered Speaker, Bass-reflex | |
| Frequency range (-10dB) | 55 Hz - 20 kHz | |
| Coverage area | H90ﾟ x V90ﾟ | |
| Crossover | 1.8 kHz: FIR-X tuning™ (linear phase FIR filter) | |
| Maximum Output Level (Measured peak, IEC noise@1m) | 129 dB SPL | |

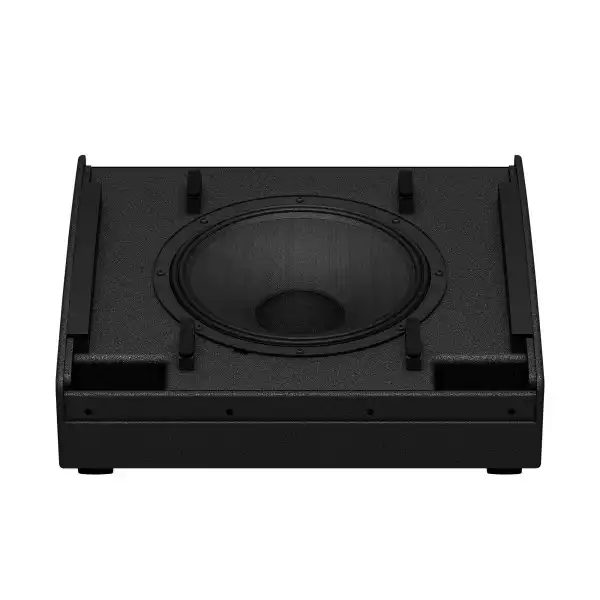

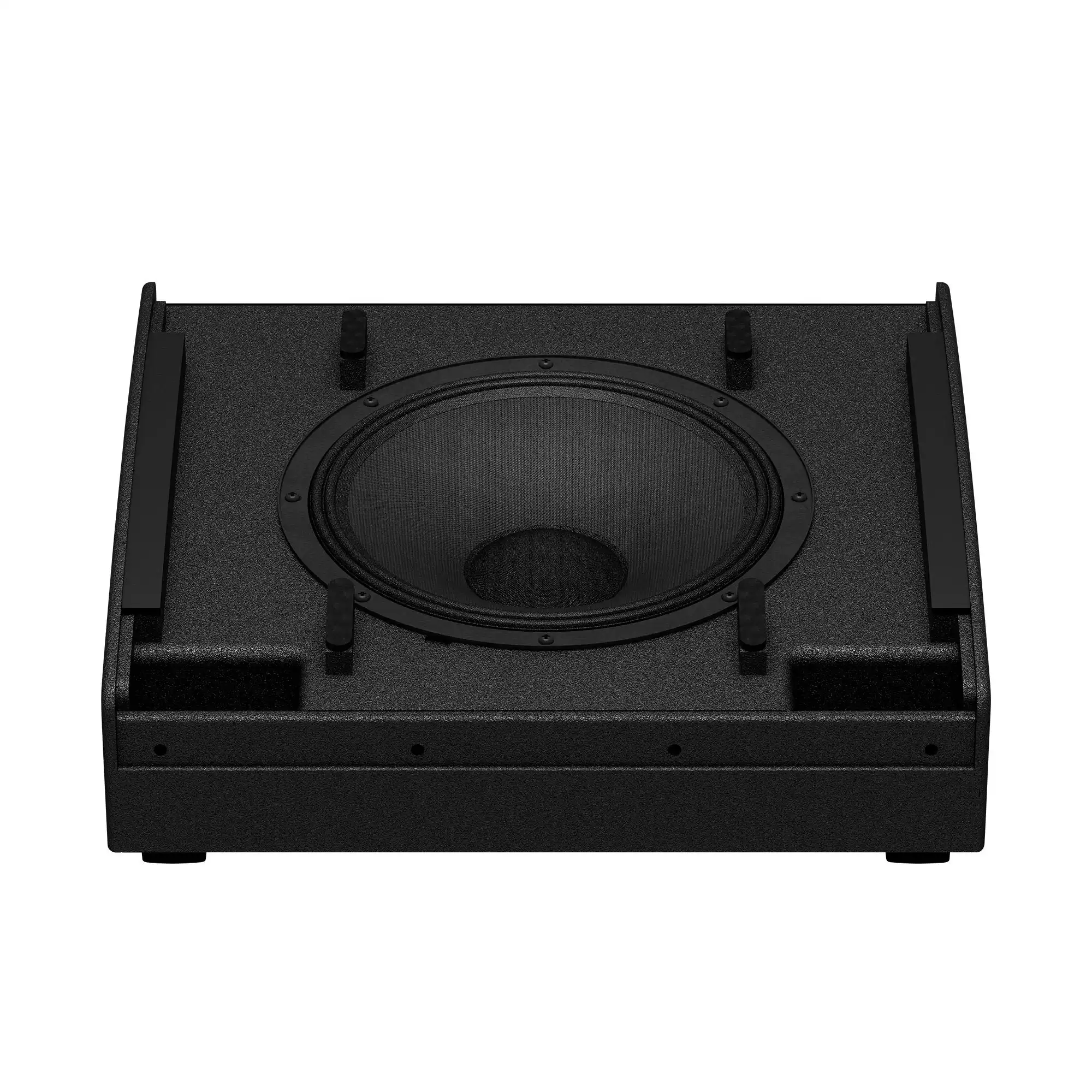

| Components | LF | Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite |
| HF | Diaphragm: 1.75", Type: 1" throat coaxial compression driver, Magnet: Ferrite | |
| Amplifier class | Class-D | |
| Power rating | Dynamic | 1,000 W (LF: 800 W, HF: 200 W) *1 |
| Continuous | 465 W (LF: 400 W, HF: 65 W) | |
| Cooling | Fan cooling, 4 speeds | |
| Power consumption | 74 W (1/8power), 18 W (Idle) | |
| Power requirements | 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz | |
| A/D D/A Converters | 24 bit 48 kHz Sampling | |
| Processors | HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF | |

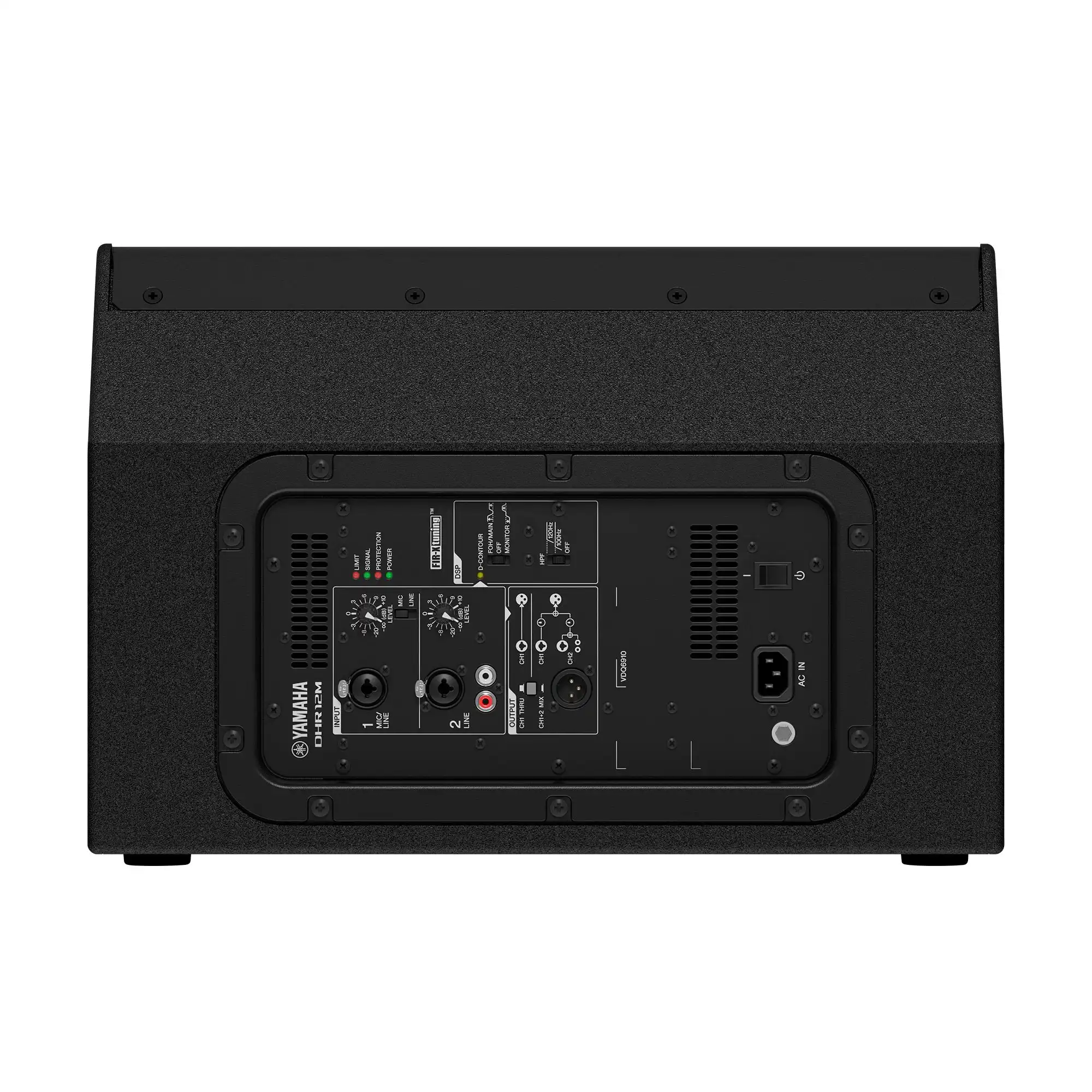

| I/O connectors | INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) | |
| Cabinet material | Plywood | |
| Finish | Durable Polyurea Painting, Black | |
| Handle | Side x1 | |
| Pole socket | Φ35 mm x1 (Bottom) | |
| Rigging | - | |
| Floor Monitor Angle | 57° | |
| Dimensions | W | 500 mm (19.7") |
| H | 343 mm (13.5") (with rubber feet) | |
| D | 454 mm (17.9") | |
| Net weight | 16.5 kg (36.4 lbs) | |
| Options | - | |
Country of origin: India
Importer Details: Yamaha Music India Pvt. Ltd ; Unit No. 601∼608, 6th Floor, Tower-D,Global Business Park, Sector-26,Mehrauli-Gurgaon Road,Gurugram-122002 Haryana, India
