Yamaha CHR10 Loudspeaker

Name: Yamaha CHR10 Loudspeaker
Brand: Yamaha
SKU: VDX3800
Price: 35000 INR
Availability: OutOfStock

Yamaha CHR10 Loudspeaker

MRP

₹ 35,000

Inclusive of all taxes

Offers

Bank Offer No Cost EMI is available on cart value

Save ₹4,995 Offer Details

Check Delivery

Highlights

Featuring a plywood cabinet that delivers a clear sound with minimal vibration.
Plywood enclosure with a polyurea coating for a robust, scratch resistant surface.
Compact appearance thanks to the 10-inch LF driver that provides excellent low frequency response.
Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments.
Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use.
A pole socket for use on a stand.
Rigging points for use with eye bolts.
Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance

Description
Technical Specification

The CHR10 is a 2-way loudspeaker, equipped with a 10-inch woofer and a 1.4-inch HF driver, and perfect for use in fixed installations. Combining carefully selected and customized transducers with the same high-grade plywood construction found on Yamaha’s high-end CZR Series, the CHR10 offers best-in-class sound quality and durability.

Performance. Optimized

The DHR and CHR Series are ideal solutions for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class. Each model has been optimized to meet the demands of a variety of sound reinforcement applications.

Better experience

Premium quality. Performance-driven loudspeakers. The Yamaha legacy. Get it all in the Yamaha DHR and CHR range of speakers, which offer matchless clarity, sound, and versatility. Get them now!

CHR10
Speaker type		2-way Speaker, Bass-reflex
Frequency range (-10dB)		55 Hz - 20 kHz
Coverage area		H90ﾟ x V60ﾟ (Rotatable)
Crossover		2.5 kHz
Nominal impedance		8 Ω
SPL	Sensitivity (1W; 1m on axis)	93 dB SPL
SPL	Peak (Calculated)	122 dB SPL

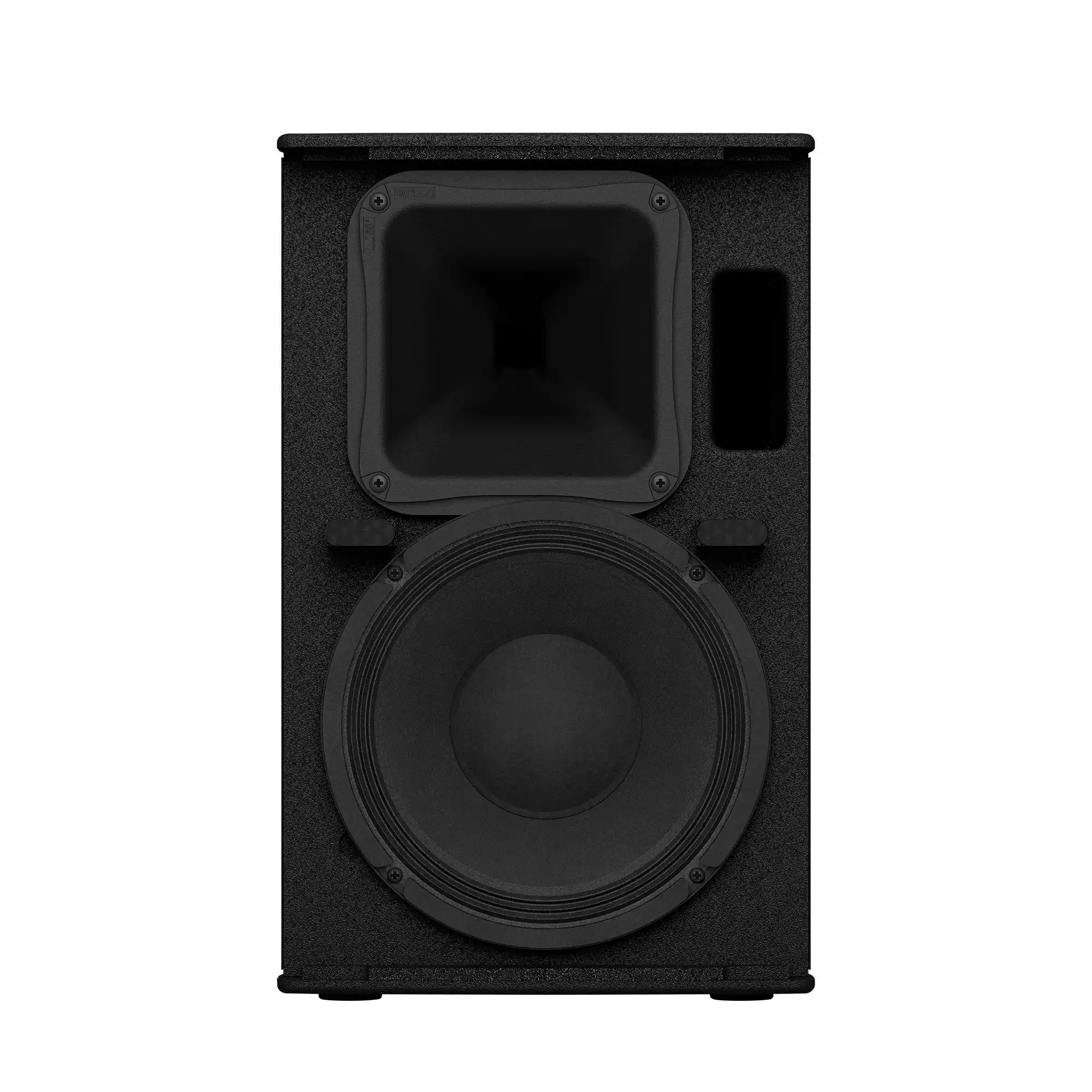

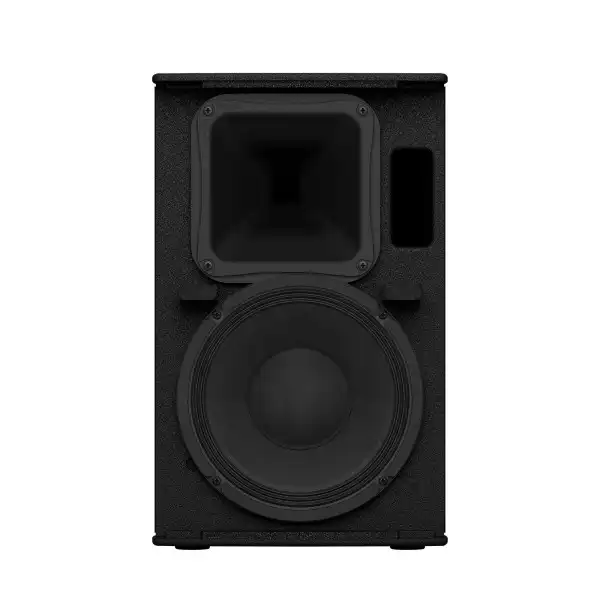

Components	LF	Diameter: 10" cone, Voice Coil: 2", Magnet: Ferrite
Components	HF	Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
Power rating	NOISE	175 W
Power rating	PGM	350 W
PEAK		700 W

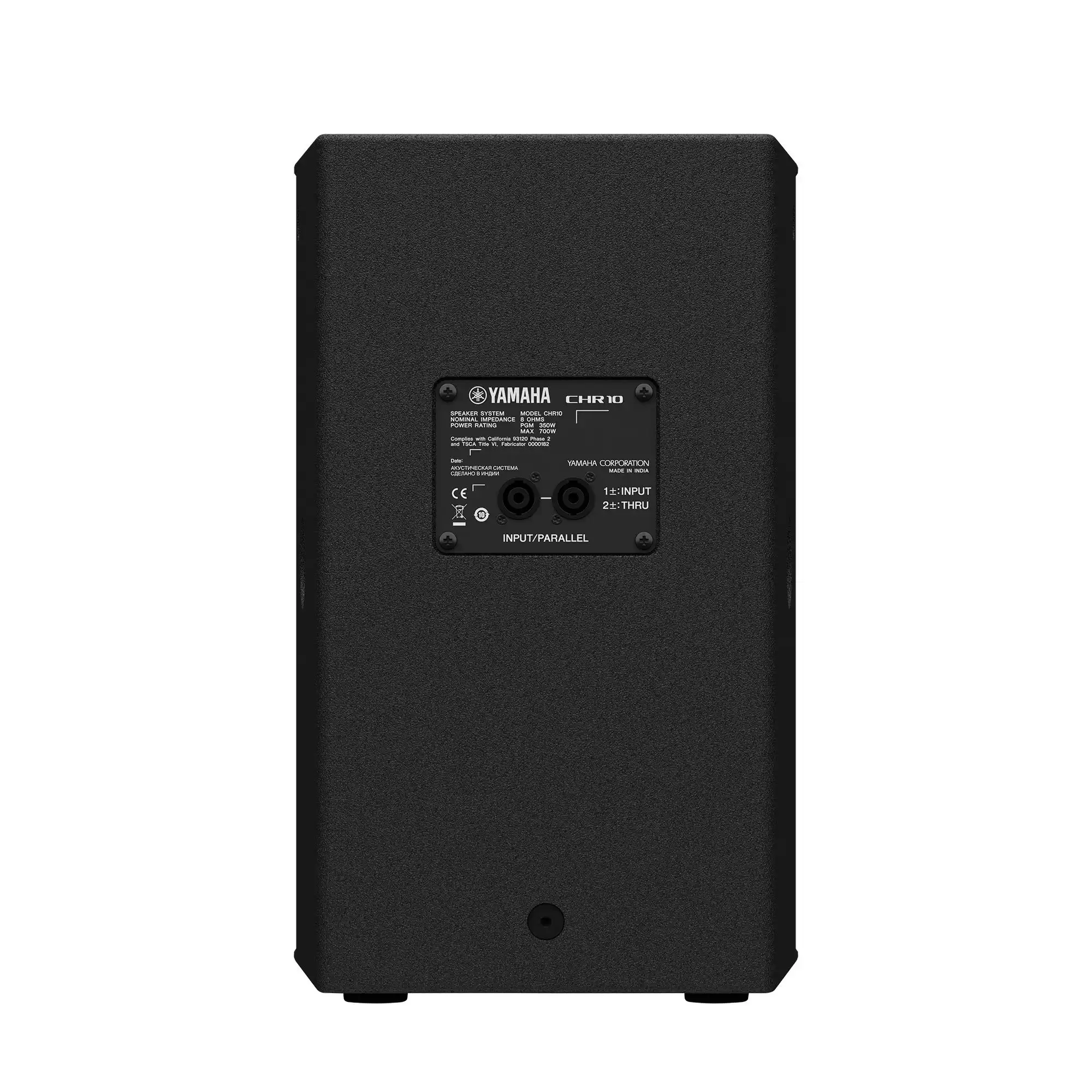

I/O connectors		SpeakON NL4MP x 2 (Parallel)
Cabinet material		Plywood
Finish		Durable Polyurea Painting, Black
Handle		Top x1
Pole socket		Φ35 mm x1 (Bottom)
Rigging		Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
Floor Monitor Angle		-
Dimensions	W	305 mm (12.0")
	H	494 mm (19.5") (with rubber feet)
	D	300 mm (11.8")
Net weight		13.7 kg (30.2 lbs)
Options		U-bracket: UB-DXRDHR10

Country of origin: India

Importer Details: Yamaha Music India Pvt. Ltd ; Unit No. 601∼608, 6th Floor, Tower-D,Global Business Park, Sector-26,Mehrauli-Gurgaon Road,Gurugram-122002 Haryana, India
