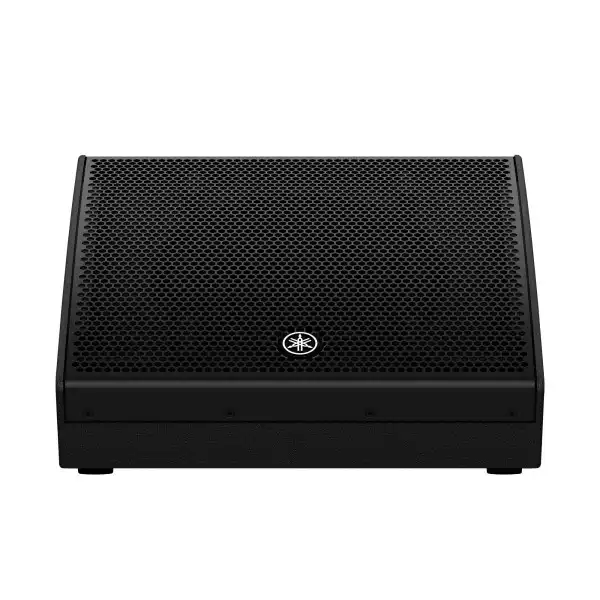

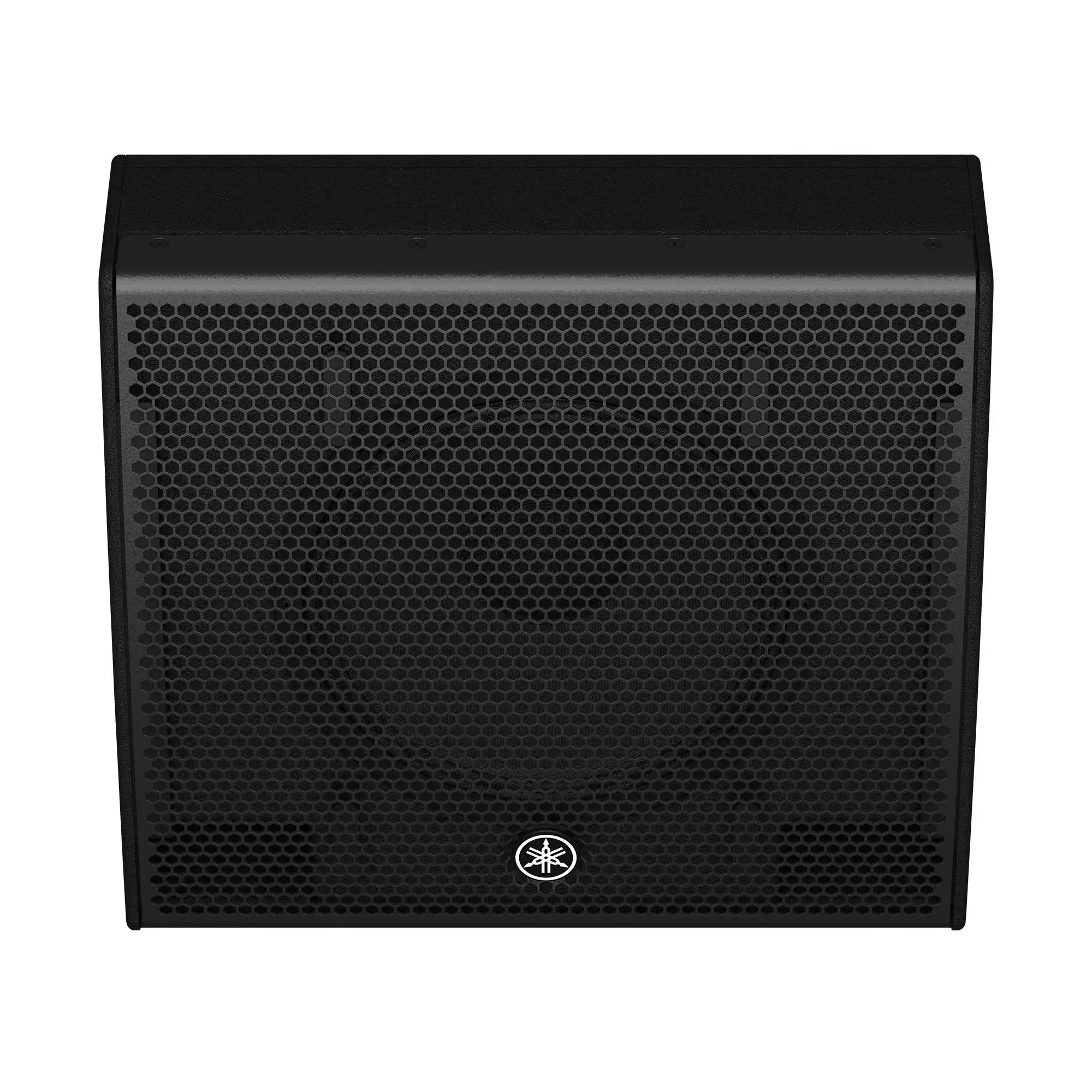

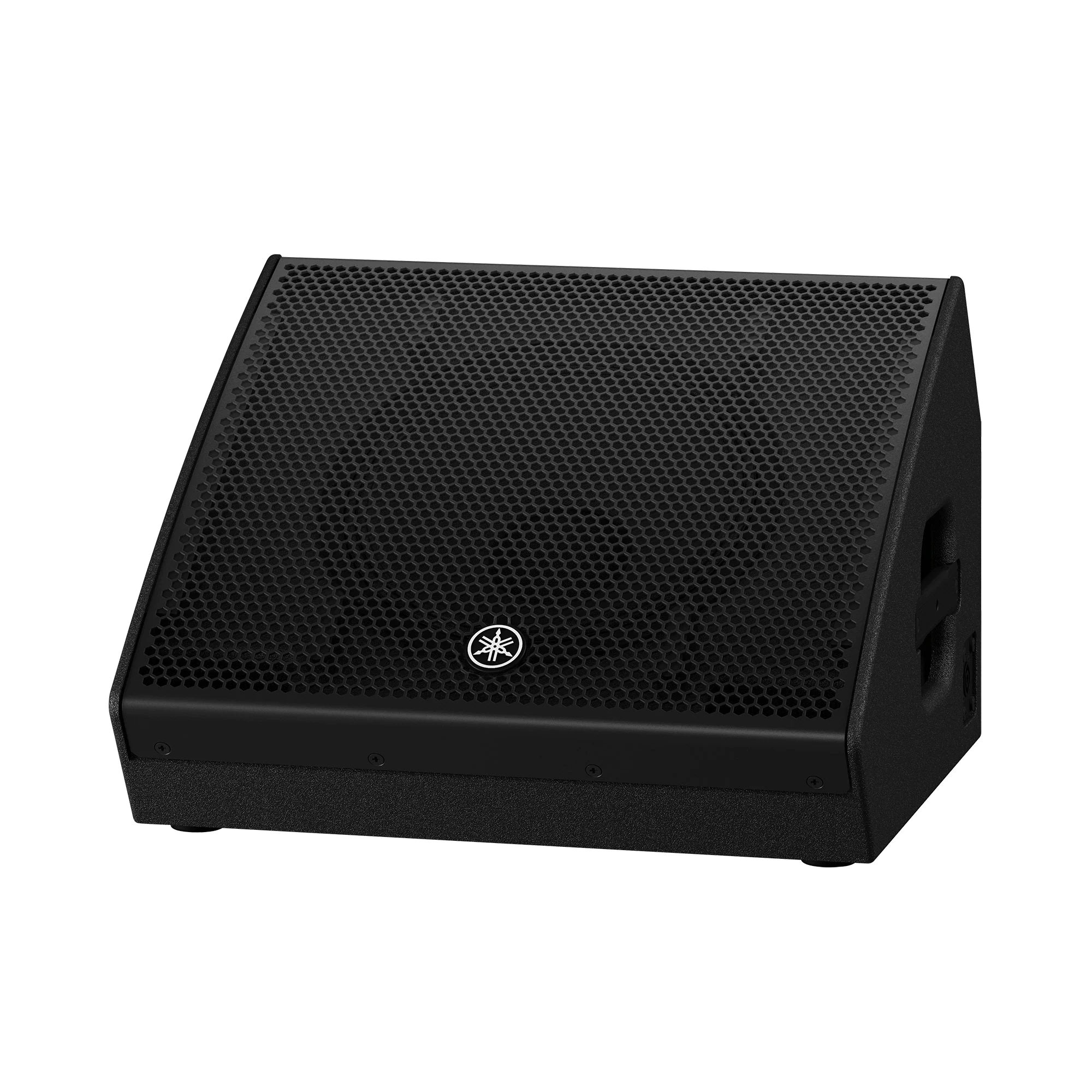

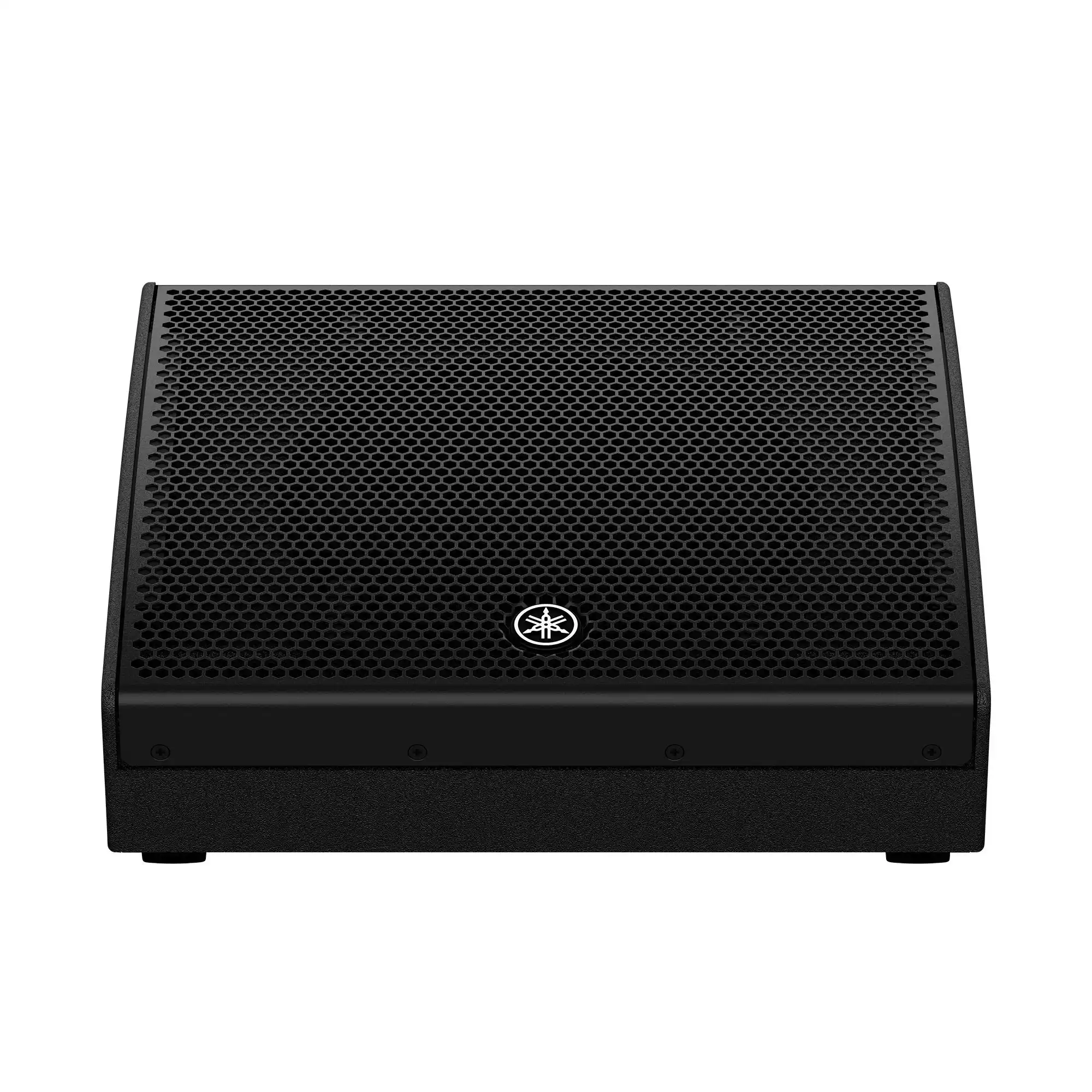

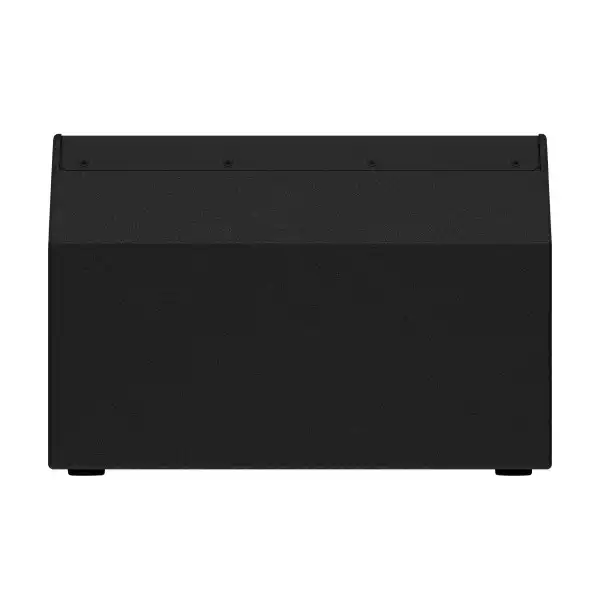

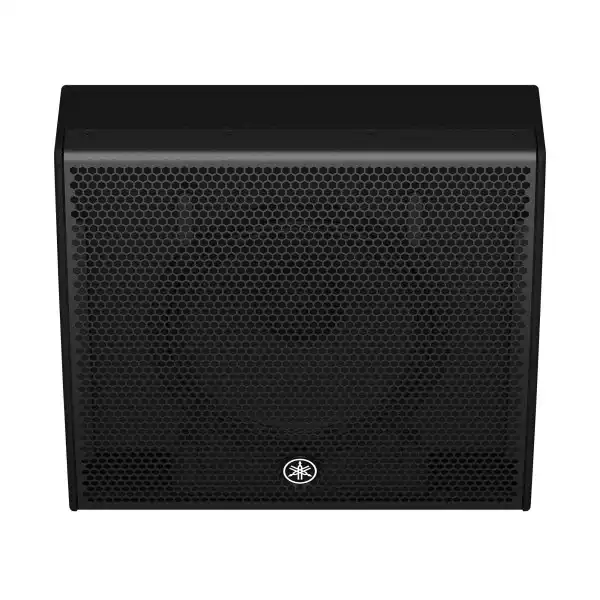

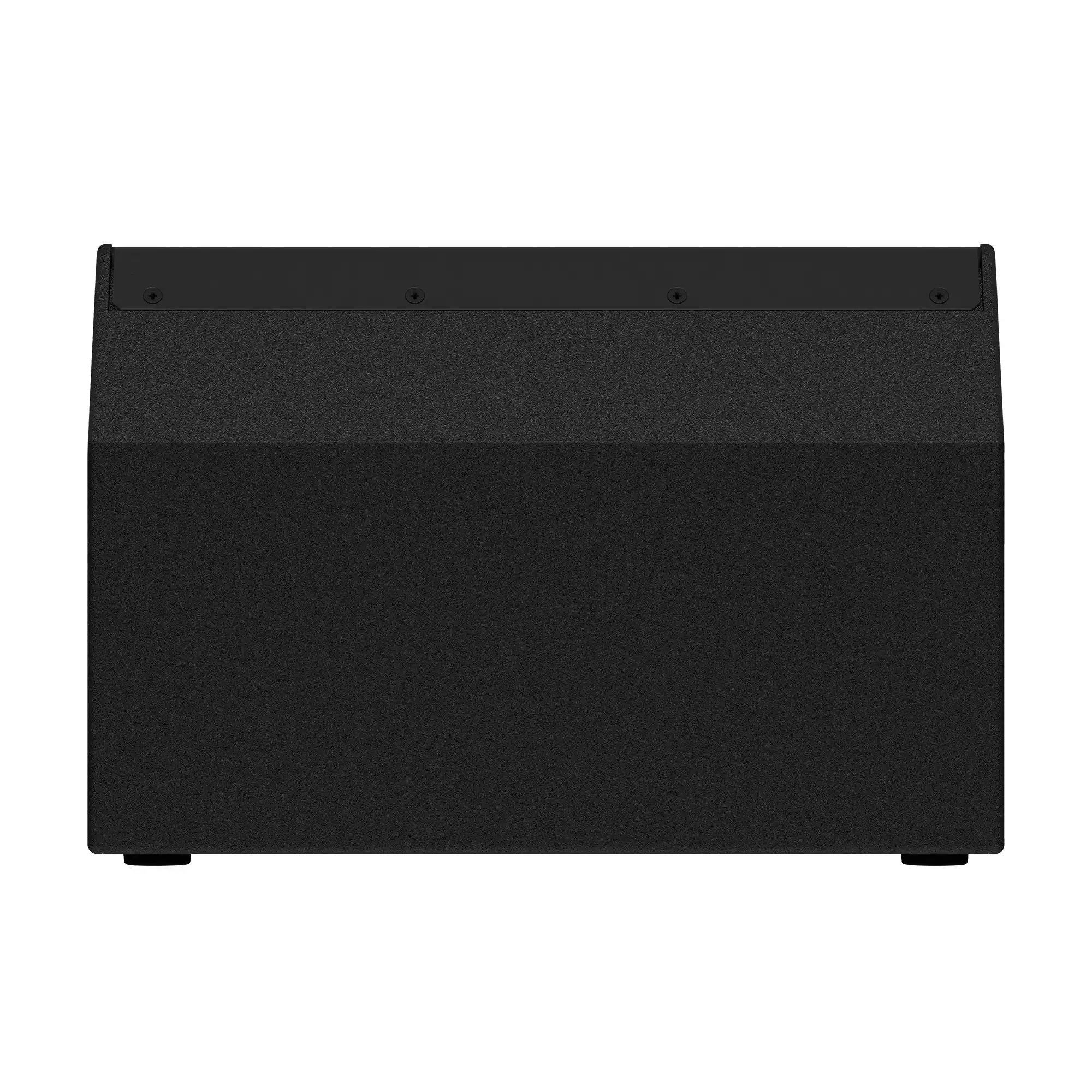

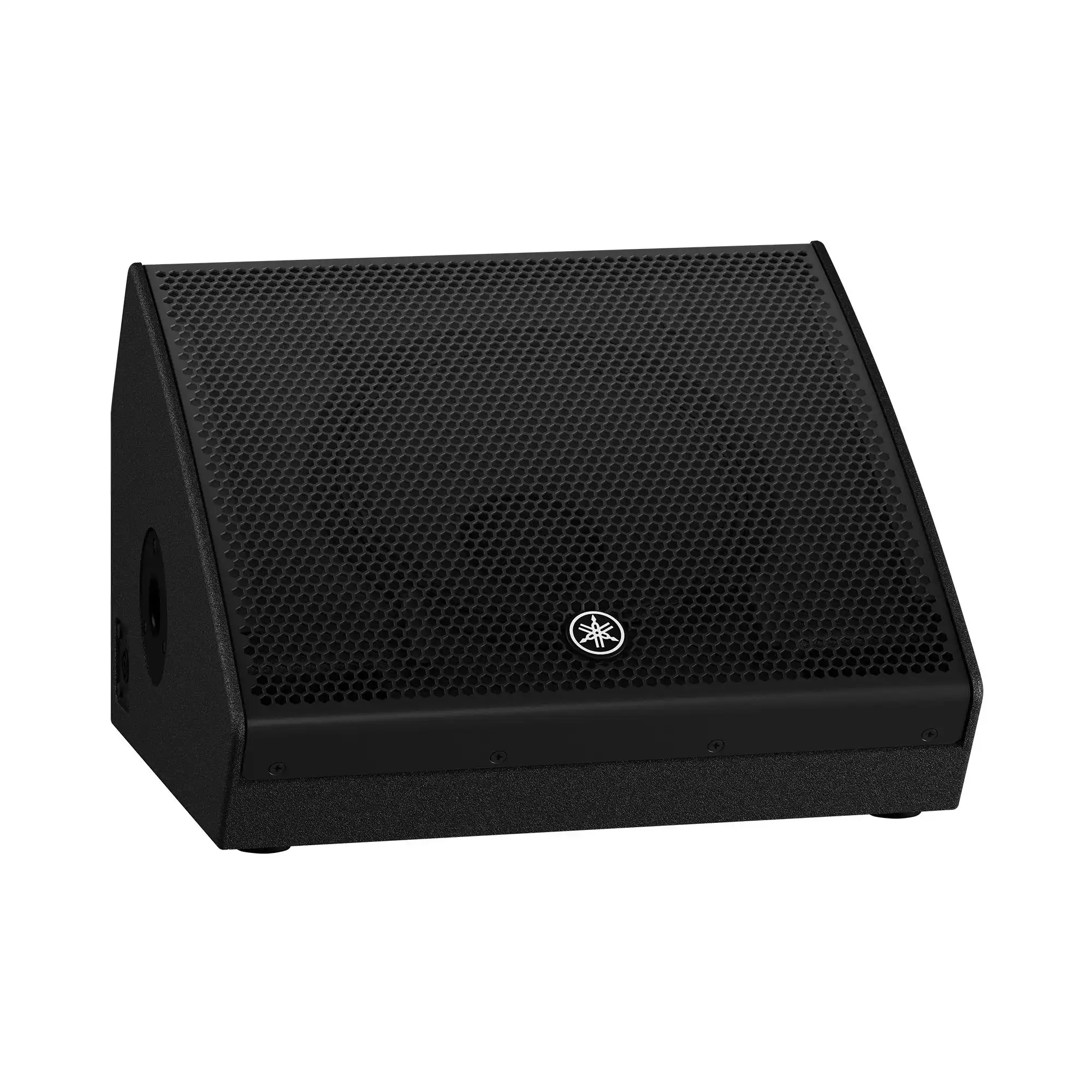

Yamaha CHR12M Loudspeaker

Name: Yamaha CHR12M Loudspeaker
Brand: Yamaha
SKU: VHP8670
Price: 44300 INR
Availability: OutOfStock

Yamaha CHR12M Loudspeaker

MRP

₹ 44,300

Inclusive of all taxes

Offers

Bank Offer No Cost EMI is available on cart value

Save ₹4,995 Offer Details

Check Delivery

Highlights

The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications.
Featuring a plywood cabinet that delivers a clear sound with minimal vibration.
Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface.
A pole socket for use on a stand.
Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance.

Description
Technical Specification

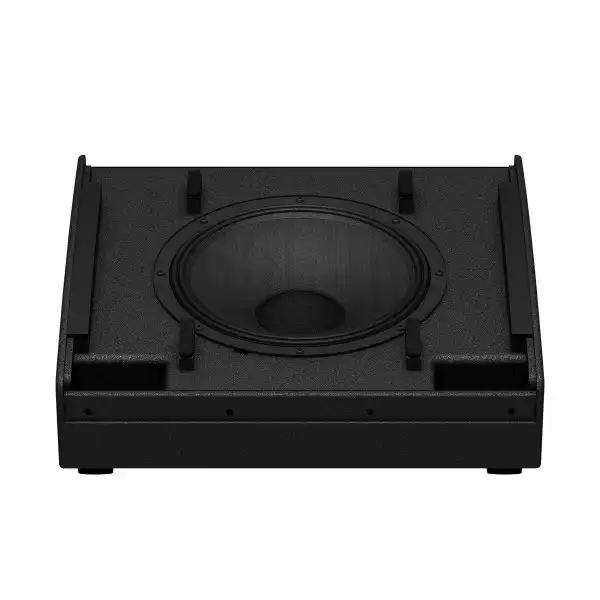

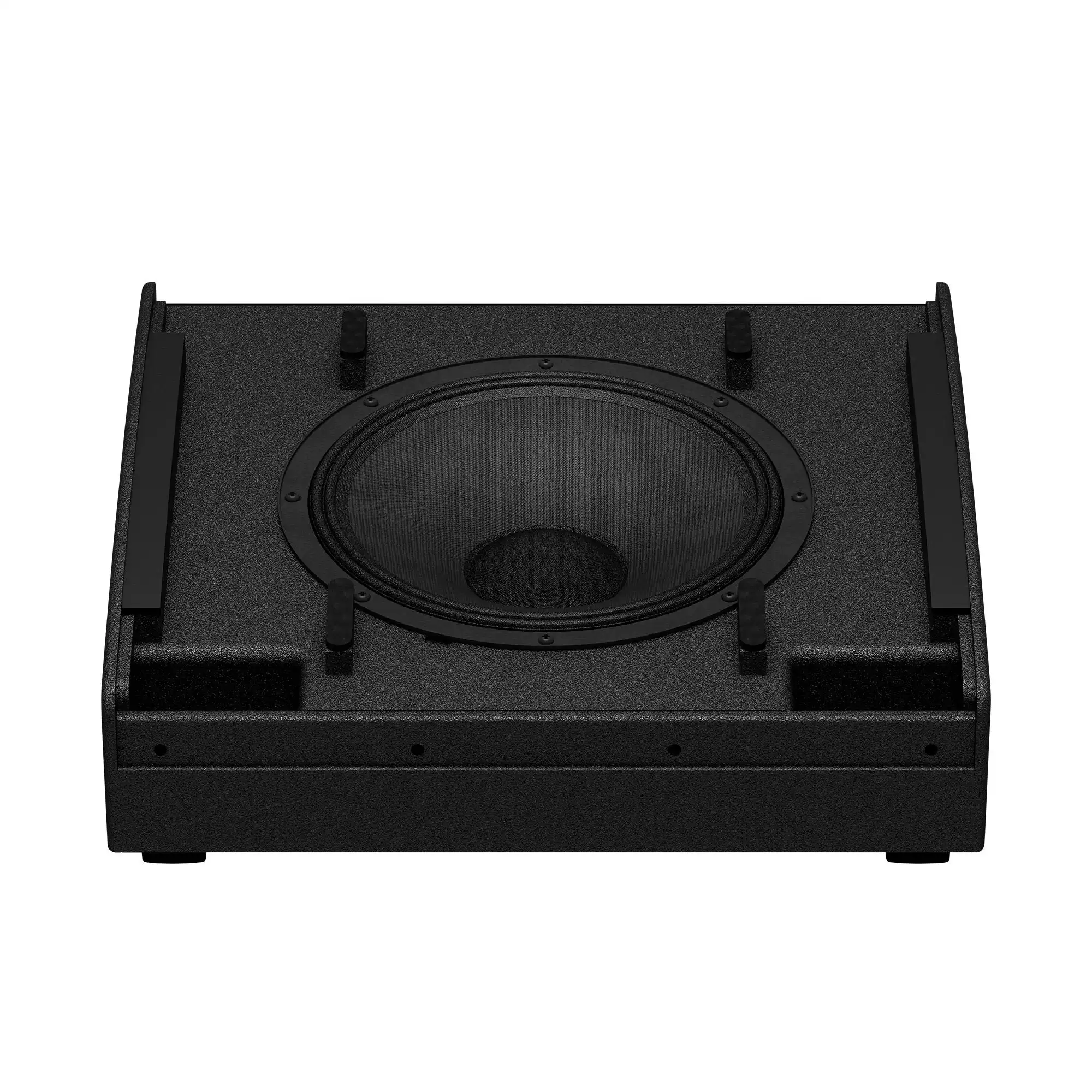

The CHR12M is a 2-way loudspeaker with a 12-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration, perfect for use as a floor monitor. Combining carefully selected and customized transducers with the same plywood construction found on Yamaha’s high-end CZR Series, the CHR12M offers best-in-class sound quality and durability.

Performance. Optimized

The DHR and CHR Series are ideal solutions for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class. Each model has been optimized to meet the demands of a variety of sound reinforcement applications.

Better experience

Premium quality. Performance-driven loudspeakers. The Yamaha legacy. Get it all in the Yamaha DHR and CHR range of speakers, which offer matchless clarity, sound, and versatility. Get them now!

CHR12M
Speaker type		2-way Speaker, Bass-reflex
Frequency range (-10dB)		61 Hz - 20 kHz
Coverage area		H90ﾟ x V90ﾟ
Crossover		1.8 kHz
Nominal impedance		8 Ω
SPL	Sensitivity (1W; 1m on axis)	93 dB SPL
SPL	Peak (Calculated)	123 dB SPL
Components	LF	Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite
Components	HF	Diaphragm: 1.75", Type: 1" throat coaxial compression driver, Magnet: Ferrite
Power rating	NOISE	250 W
Power rating	PGM	500 W
PEAK		1,000 W
I/O connectors		SpeakON NL4MP x 2 (Parallel)
Cabinet material		Plywood
Finish		Durable Polyurea Painting, Black

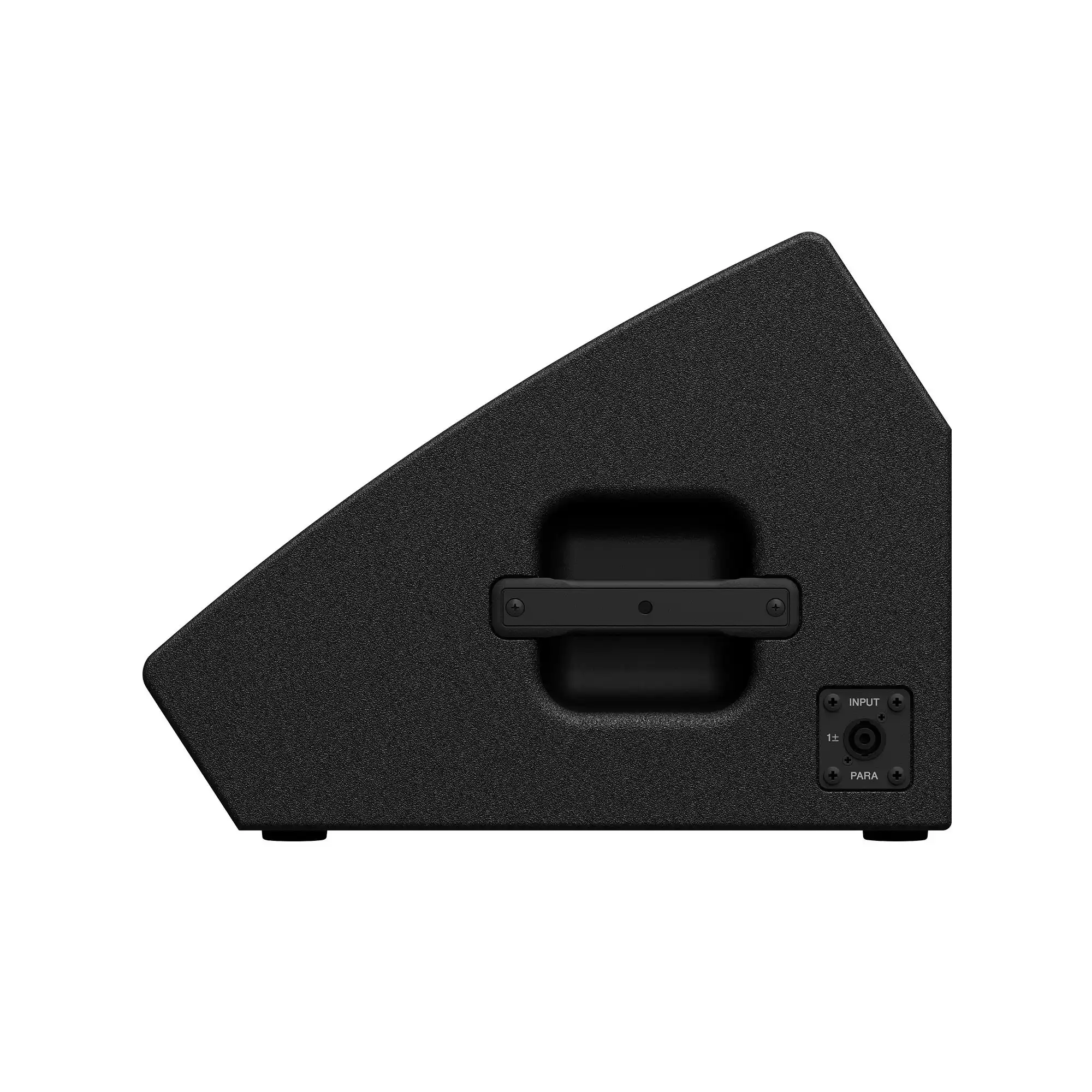

Handle		Side x1

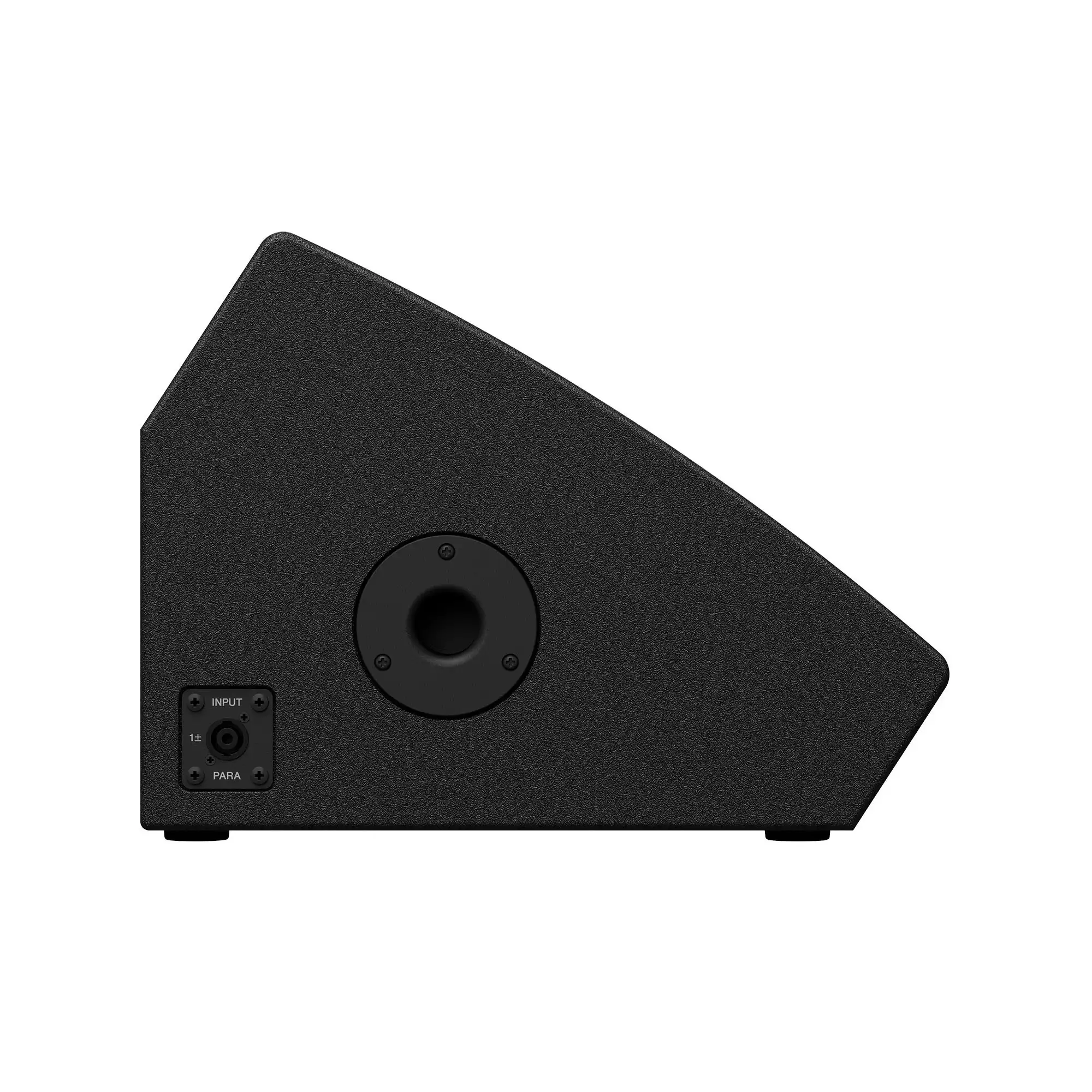

Pole socket		Φ35 mm x1 (Bottom)
Rigging		-
Floor Monitor Angle		57°
Dimensions	W	500 mm (19.7")
	H	343 mm (13.5") (with rubber feet)
	D	454 mm (17.9")
Net weight		15.6 kg (34.4 lbs)
Options		-

Country of origin: India

Importer Details: Yamaha Music India Pvt. Ltd ; Unit No. 601∼608, 6th Floor, Tower-D,Global Business Park, Sector-26,Mehrauli-Gurgaon Road,Gurugram-122002 Haryana, India
