Yamaha DHR10 Loudspeaker

Name: Yamaha DHR10 Loudspeaker
Brand: Yamaha
SKU: VDV8680
Price: 54500 INR
Availability: OutOfStock

Yamaha DHR10 Loudspeaker

MRP

₹ 54,500

Inclusive of all taxes

Offers

Bank Offer No Cost EMI is available on cart value

Save ₹4,995 Offer Details

Check Delivery

Highlights

Featuring a plywood cabinet that delivers a clear sound with minimal vibration
Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
Compact appearance thanks to a 10-inch LF driver that provides excellent low frequency response
Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments
Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use
A pole socket for use on a stand
Rigging points for use with eye bolts
Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

Description
Technical Specification

The DHR10 is a 2-way bi-amp powered loudspeaker, equipped with a 10-inch woofer and a 1.4-inch HF driver, and perfect for use in fixed installations. Combining a 700W amplifier module and high-performance DSP with the same high-grade plywood construction found on Yamaha’s high-end DZR Series, the DHR10 offers best-in-class sound quality and durability.

Performance. Optimized

The DHR and CHR Series are ideal solutions for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class. Each model has been optimized to meet the demands of a variety of sound reinforcement applications.

Better experience

Premium quality. Performance-driven loudspeakers. The Yamaha legacy. Get it all in the Yamaha DHR and CHR range of speakers, which offer matchless clarity, sound, and versatility. Get them now!

DHR10
Speaker type		2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency range (-10dB)		52 Hz - 20 kHz
Coverage area		H90ﾟ x V60ﾟ (Rotatable)
Crossover		1.9 kHz: FIR-X tuning™ (linear phase FIR filter)
Maximum Output Level (Measured peak, IEC noise@1m)		128 dB SPL
Components	LF	Diameter: 10" cone, Voice Coil: 2", Magnet: Ferrite
Components	HF	Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
Amplifier class		Class-D
Power rating	Dynamic	700 W (LF: 500 W, HF: 200 W) *1
Power rating	Continuous	325 W (LF: 260 W, HF: 65 W)
Cooling		Fan cooling, 4 speeds
Power consumption		60 W (1/8power), 18 W (Idle)
Power requirements		100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz
A/D D/A Converters		24 bit 48 kHz Sampling
Processors		HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF

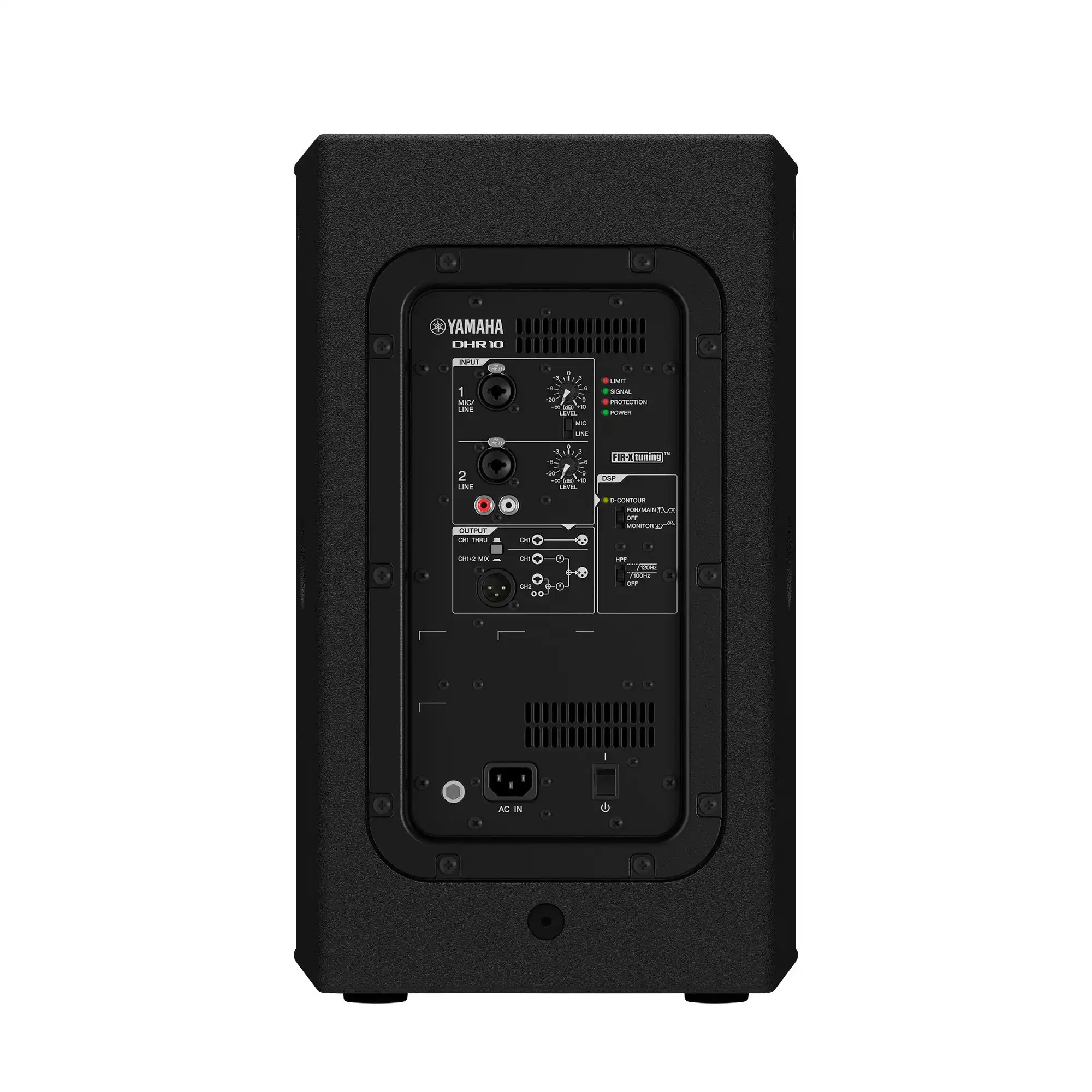

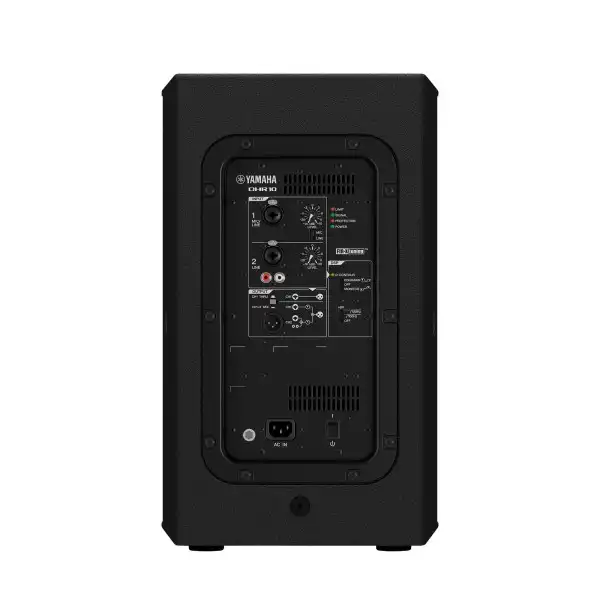

I/O connectors		INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Cabinet material		Plywood
Finish		Durable Polyurea Painting, Black
Handle		Top x1
Pole socket		Φ35 mm x1 (Bottom)
Rigging		Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
Floor Monitor Angle		-
Dimensions	W	305 mm (12.0")
	H	494 mm (19.5") (with rubber feet)
	D	300 mm (11.8")
Net weight		15.0 kg (33.1 lbs)
Options		U-bracket: UB-DXRDHR10

Country of origin: India

Importer Details: Yamaha Music India Pvt. Ltd ; Unit No. 601∼608, 6th Floor, Tower-D,Global Business Park, Sector-26,Mehrauli-Gurgaon Road,Gurugram-122002 Haryana, India
