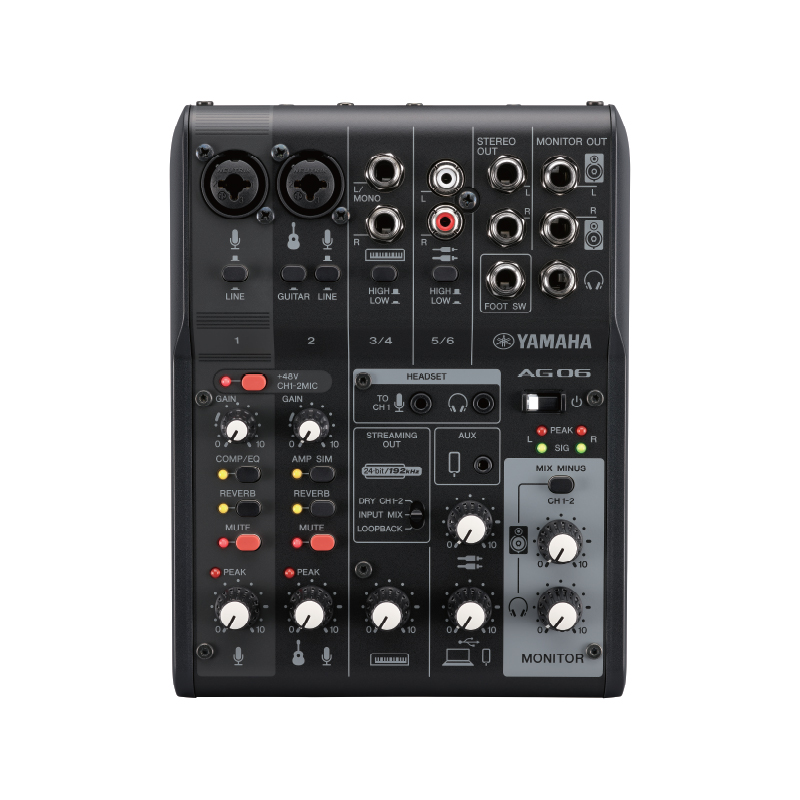

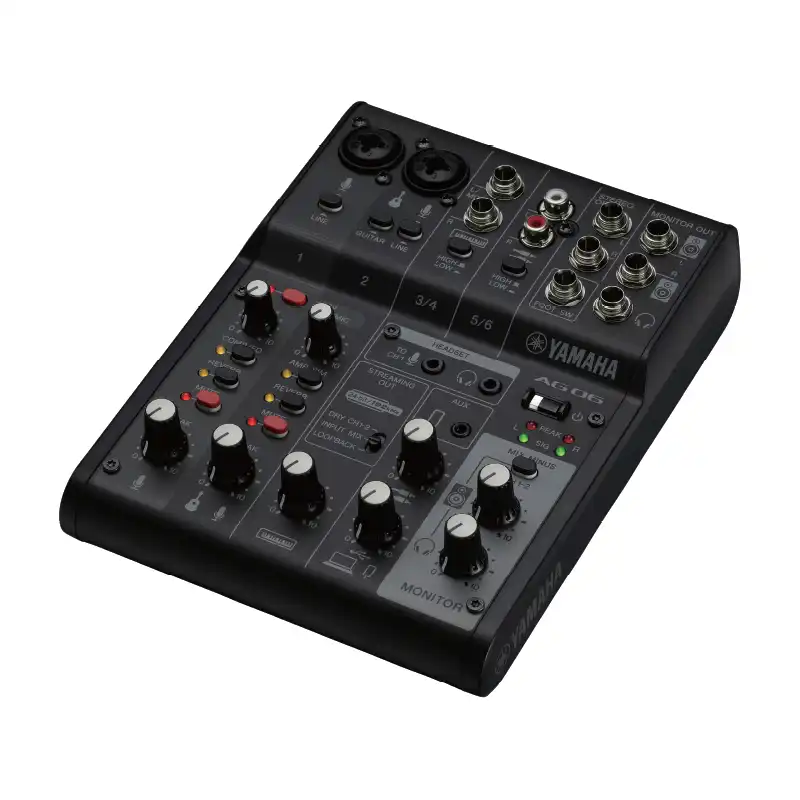

Check DeliveryAG06MK2 Live Streaming mixer with USB audio interface. Its flexible connectivity, DSP effects, and LOOPBACK features help you shape and manage the audio you stream to your audience in a simple and intuitive way via physical controls.

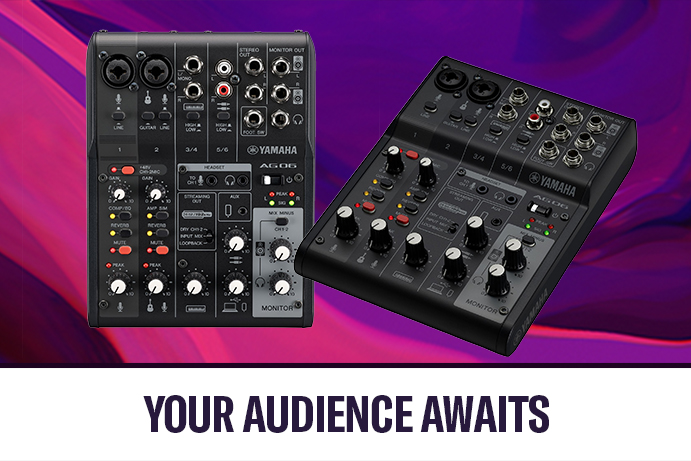

Two heads are better than one, and when it comes to live streaming, the same can be said for microphone inputs. The AG06MK2 offers the same user-friendly configuration and operation that has become synonymous with the AG series, but also comes equipped with two phantom powered mic inputs for condenser microphones. Combined with flexible connectivity including an upgraded 4-pole mini I/O, the AG06MK2 opens up a broader range of dialogue, interview, musical ensemble performance, or other streaming applications that the AG01 or AG03MK2 setups can’t cover.

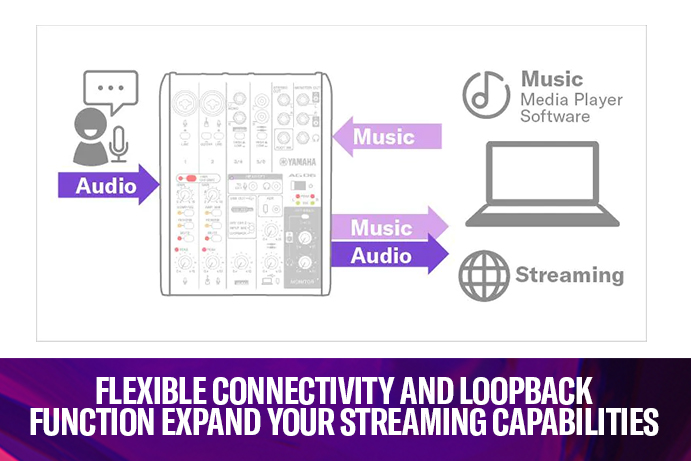

The AG06MK2 allows you to connect two condenser microphones of your choice, as well as two stereo line inputs for instruments, and an upgraded 4-pole mini jack (TRRS) for smartphone input/output capability. Of course, it is also possible to add audio from devices connected via USB in LOOPBACK mode as with previous AG models. This diverse range of connectivity makes it possible to use high-sensitivity microphones along with each of the audio sources for a variety of streaming applications such as podcasts with dialogue, interviews, vocal performances with an acoustic instrument, or even a live band.

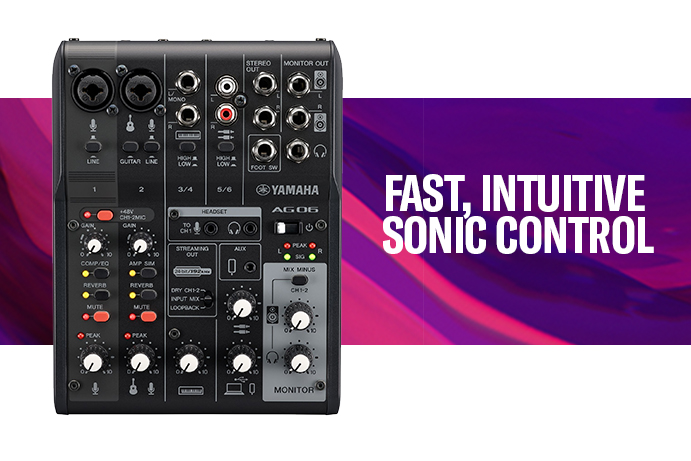

With a design similar to a mixing console, the AG06MK2 is equipped with a variety of physical controls that help you shape and manage the audio you stream to your audience. The newly added mute button allows you to cut your mic input at a moment's notice if your situation demands it, and can even be controlled using Yamaha’s FC5 dedicated foot switch (sold separately) which can also add reverb to your signal while keeping your hands free for other tasks.
Sound quality can often be a deciding factor for whether or not someone will tune in to your live streaming content. With the adoption of USB-C and the requisite improved internal circuitry, the AG06MK2 sees a significant improvement in sound quality compared to previous models giving your streaming a more professional edge.

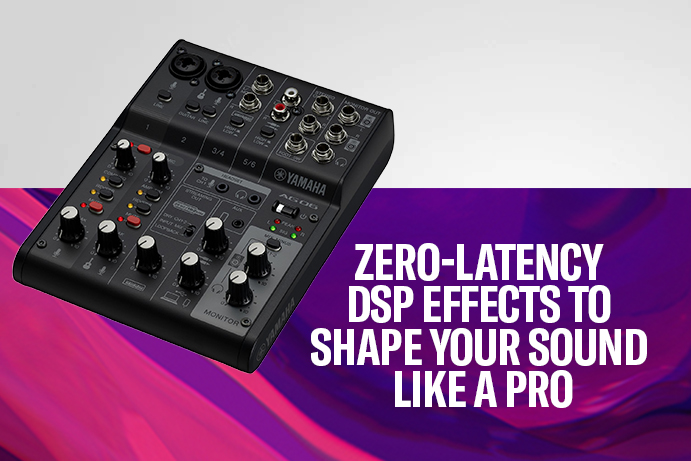

Regardless of your particular streaming application, you’ll likely want to add some depth and dimension to the audio you’re broadcasting to add professionalism to your streaming content. The AG06MK2 is equipped with optimized 1-TOUCH COMP/EQ and REVERB controls to dial in the sound that best suits your style, and a 1-TOUCH amp simulator to add authenticity and punch to your guitar input.
All these tools are processed by the internal DSP chip so there is no delay, making it particularly valuable for live streaming when real-time accuracy is crucial.
You also have the option to turn these effects off completely to capture pure, raw recordings through your favorite microphone for music/audio production that will be edited by an engineer later.

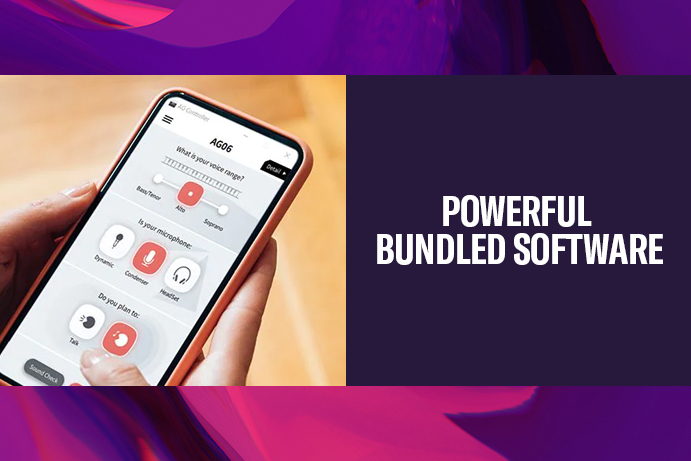

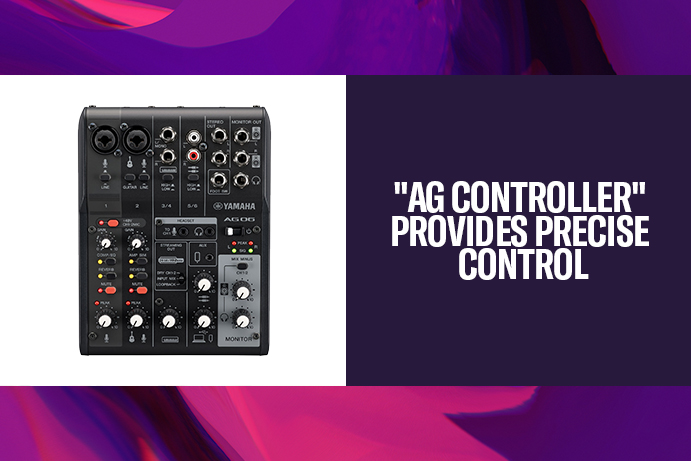

AG Controller software allows users to easily and precisely check and configure the DSP audio processing inside the AG. Offering two modes of operation, "Simple" and "Detail", AG Controller gives users of varying music production experience detailed management of their audio from any Windows/Mac or iOS device connected to the AG06MK2 via USB.

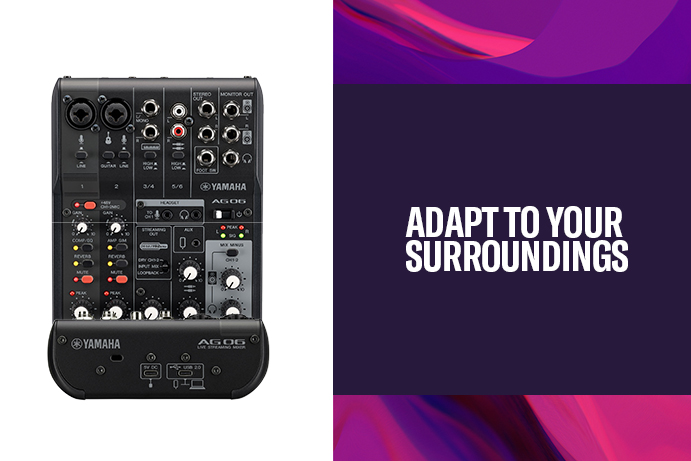

The sleek, slim, and compact body of the AG06MK2 can be placed on virtually any flat surface.
By combining it with the optional BMS-10A adaptor, it can be installed on a microphone stand. It can also be connected to a mobile battery to configure a minimalistic, mobile streaming station anywhere.
*For stable operation of the AG06MK2, a power supply of DC 5V 900mA or more is required.
*BMS-10A and mobile battery are sold separately.
The AG06MK2 comes bundled with Cubase AI music production software, as well as WaveLab Cast for audio production and editing. The AG06MK2 is also compatible with Rec'n'Share and Cubasis LE applications for iOS devices which are available free of charge from Yamaha and Steinberg to support and inspire your audio content creation.
| AG06MK2 | ||
|---|---|---|
| Outline | ||
| Input Channels | Mono[MIC/LINE] | 2 - CH1: Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power), CH2: Combo (Mic, +48 V phantom power / Guitar input / Line) *CH1 input and Headset mic cannot be used simultaneously |
| Stereo[LINE] | 2 - L/R Stereo: Phone, RCA | |
| Smartphone | 1 - PHONES / HEADSET PHONES *Cannot be used simultaneously | |
| USB | 1 | |
| Output Channels | PHONES | 2 - PHONES / HEADSET PHONES *Cannot be used simultaneously |
| Smartphone | 1 - 4-pole mini input/output (TRRS) | |
| MONITOR OUT | 1 | |
| STEREO OUT | 1 | |
| USB | 1 | |
| Bus | 1 Stereo | |
| Functions | MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF) | |
| On-board processors | DSP | COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller |
| USB | USB Audio | 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C |
| USB DC Power input | 1 - Type-C, 5 V DC, 900 mA | |
| General specifications | ||
| Power requirements | 5 V DC, 900 mA | |
| Power consumption | Max. 4.5 W | |
| Dimensions | W | 152 mm (6.0") |
| H | 63 mm (2.5") | |
| D | 201 mm (7.9") | |
| Net weight | 0.9 kg (2.0 lbs) | |
| Included Accessories | USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information | |
| Others | Operating Temperature: 0 to +40˚C | |
Country of origin: Malaysia
