Home Professional Audio Audio Streaming Yamaha AG03MK2 Live Streaming Mixer White
₹17,000

Inclusive of all taxes

No Cost EMI available for this product - T&Cs

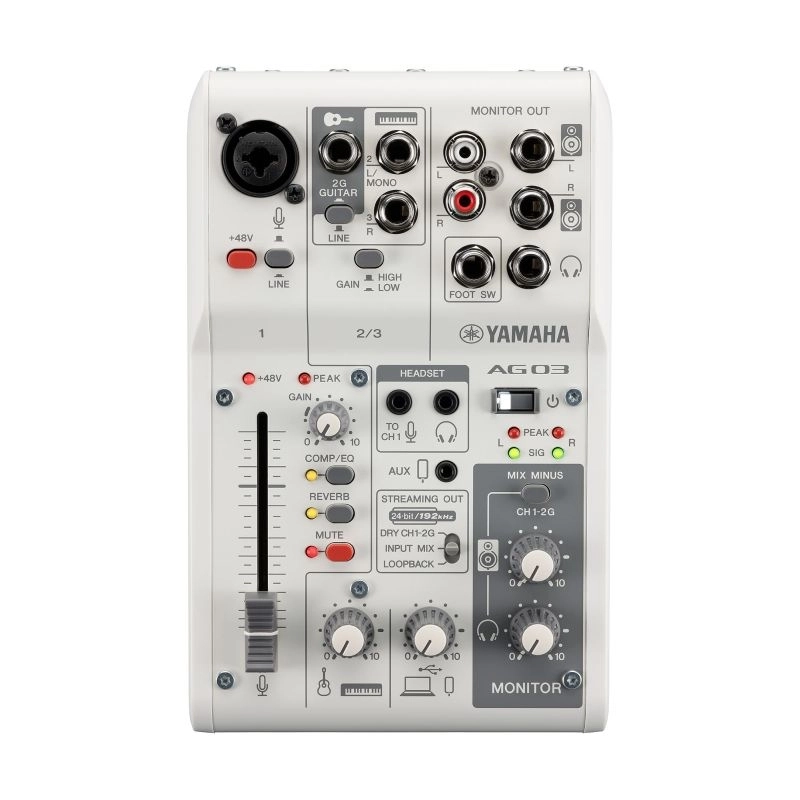

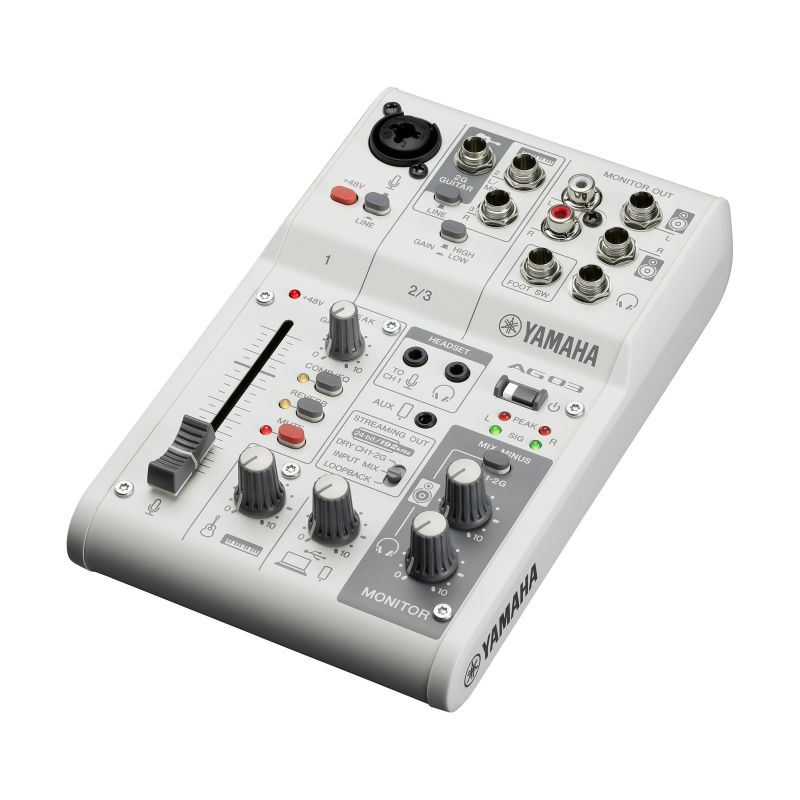

AG03MK2 is a 3-channel live streaming mixer with USB audio interface.

  • 60 mm faders for mic CH1
  • +48 V phantom power on CH1 input for condenser mics or Dl boxes
  • Hi-Z input for guitars on CH2
  • High resolution (24-bit, 192 kHz) 2-track audio recording and playback
  • 4-pole mini input/output (TRRS) to support a wider range of streaming applications
  • Flexible inputs and LOOPBACK function ideal for live streaming or recording
  • Mute button for convenient live streaming
  • Easy control and pro sound with Amp Simulator and 1-TOUCH COMP/EQ, REVERB
  • AG Controller (Windows/Mac/iOS) for precise parameter control
  • Windows/Mac support by USB-C connection
  • iOS connectivity via Apple Camera Adapter (requires external USB power supply)
  • Android supported by 4-pole mini input/output (TRRS)
  • USB-C power input (5 V DC, 900 mA)
  • Cubase Al, WaveLab Cast, Cubasis LE and Rec'n'Share are available

Yamaha Live Streaming Mixer: AG03MK2

AG03MK2 Live Streaming mixer with USB audio interface. Its flexible connectivity, DSP effects, and LOOPBACK features help you shape and manage the audio you stream to your audience in a simple and intuitive way via physical controls.

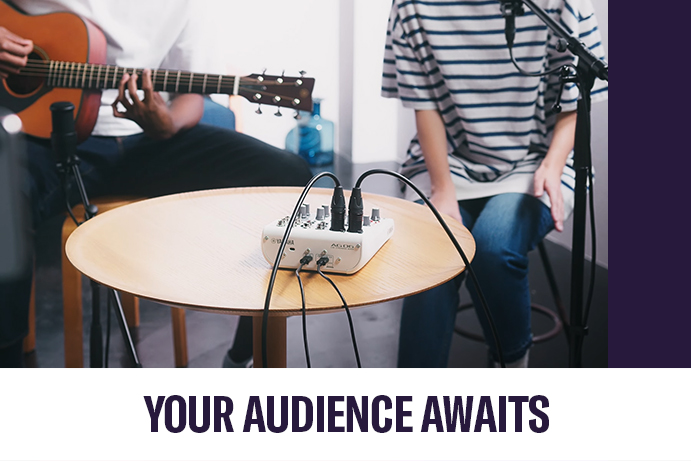

Your Audience Awaits

With its variety of inputs and outputs, DSP effects, and LOOPBACK function, the original AG03 quickly established itself as a staple amongst live streamers looking to configure a simple yet comprehensive setup without compromising on sound quality. The next generation AG03MK2 adds more flexible connectivity including 4-pole mini I/O expanding the range of streaming styles, as well as a new mute button crucial for various live streaming applications. Along with improvements in build, design, internal circuitry, and overall sound, the MK2 will further solidify the AG series as an industry standard that all others will be compared to.

Your Audience Awaits

With its variety of inputs and outputs, DSP effects, and LOOPBACK function, the original AG03 quickly established itself as a staple amongst live streamers looking to configure a simple yet comprehensive setup without compromising on sound quality. The next generation AG03MK2 adds more flexible connectivity including 4-pole mini I/O expanding the range of streaming styles, as well as a new mute button crucial for various live streaming applications. Along with improvements in build, design, internal circuitry, and overall sound, the MK2 will further solidify the AG series as an industry standard that all others will be compared to.

Fast, intuitive sonic control

The AG03MK2 is equipped with a variety of physical controls including a large 60mm fader that helps you shape and manage the audio intuitively and quickly. The newly added mute button allows you to cut your mic input at a moment's notice if your situation demands it. Reverb and Mute can even be controlled by the optional FC5 foot switch, freeing up your hands for other tasks.

Flexible connectivity and LOOPBACK function expand your streaming capabilities

In addition to a microphone input for the condenser microphone of your choice, the AG03MK2 also features a 1/4 inch jack input for connecting a guitar or line instrument, and an upgraded 4-pole mini jack (TRRS) for smartphone input and output capabilities.

Flexible connectivity and LOOPBACK function expand your streaming capabilities

In addition to a microphone input for the condenser microphone of your choice, the AG03MK2 also features a 1/4 inch jack input for connecting a guitar or line instrument, and an upgraded 4-pole mini jack (TRRS) for smartphone input and output capabilities.

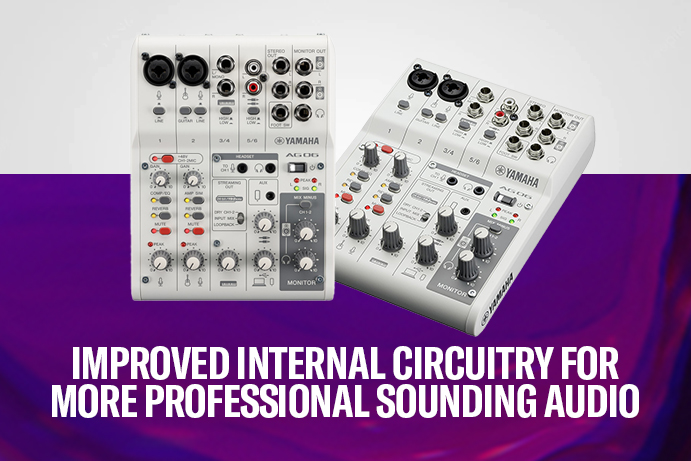

Improved internal circuitry for more professional sounding audio

The AG03MK2 sees a marked improvement in sound quality as a result of adopting USB-C connectivity and enhanced internal circuitry that will take your streaming audio to a more professional level. The high transfer rate and power supply of USB-C provide more stable operation.

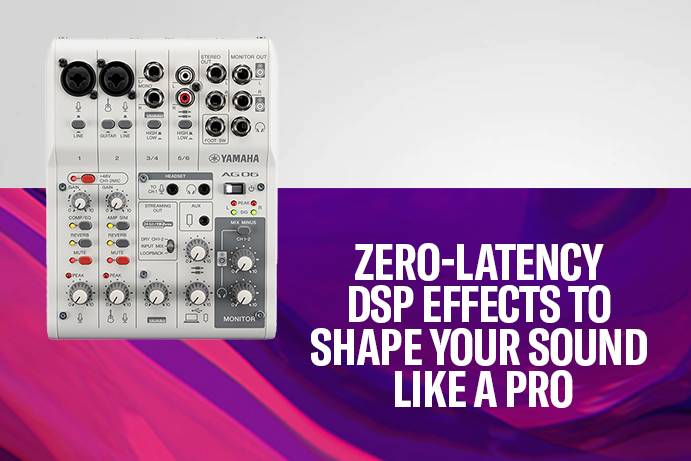

Zero-latency DSP effects to shape your sound like a pro

Regardless of your particular streaming application, you’ll likely want to add some depth and dimension to the audio you’re broadcasting to add professionalism to your streaming content. The AG03MK2 is equipped with optimized 1-TOUCH COMP/EQ and REVERB controls to dial in the sound that best suits your style, and an amp simulator to add authenticity and punch to your guitar input.

Zero-latency DSP effects to shape your sound like a pro

Regardless of your particular streaming application, you’ll likely want to add some depth and dimension to the audio you’re broadcasting to add professionalism to your streaming content. The AG03MK2 is equipped with optimized 1-TOUCH COMP/EQ and REVERB controls to dial in the sound that best suits your style, and an amp simulator to add authenticity and punch to your guitar input.

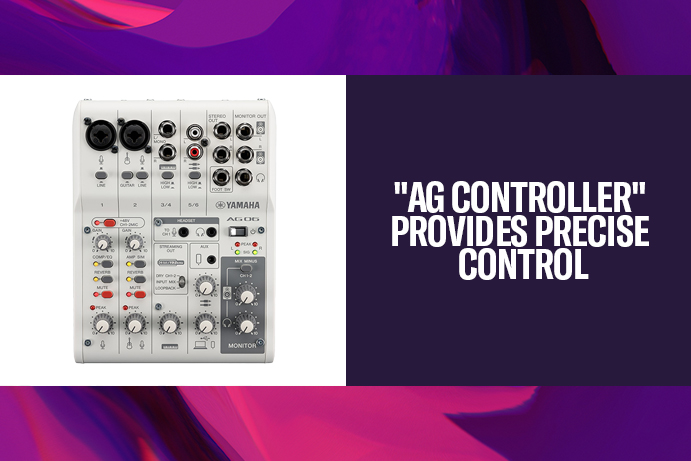

"AG Controller" provides precise control

AG Controller software allows users to easily and precisely check and configure the DSP audio processing inside the AG. Offering two modes of operation, "Simple" and "Detail", AG Controller gives users of varying music production experience detailed management of their audio from any Windows/Mac or iOS device connected to the AG03MK2 via USB.

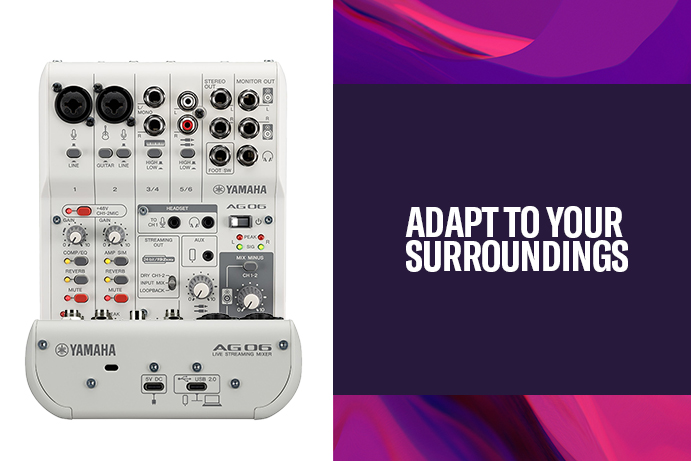

Adapt to your surroundings

The sleek, slim, and compact body of the AG03MK2 can be placed on virtually any flat surface.

By combining it with the optional BMS-10A adaptor, it can be installed on a microphone stand. It can also be connected to a mobile battery to configure a minimalistic, mobile streaming station anywhere.

*For stable operation of the AG03MK2, a power supply of DC 5V 900mA or more is required.

*BMS-10A and mobile battery are sold separately.

Adapt to your surroundings

The sleek, slim, and compact body of the AG03MK2 can be placed on virtually any flat surface.

By combining it with the optional BMS-10A adaptor, it can be installed on a microphone stand. It can also be connected to a mobile battery to configure a minimalistic, mobile streaming station anywhere.

*For stable operation of the AG03MK2, a power supply of DC 5V 900mA or more is required.

*BMS-10A and mobile battery are sold separately.

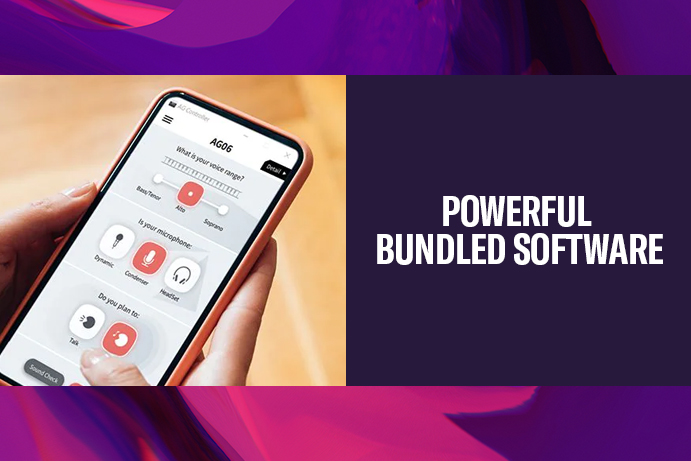

Powerful bundled software

The AG03MK2 comes bundled with Cubase AI music production software, as well as WaveLab Cast for audio production and editing. The AG03MK2 is also compatible with Rec'n'Share and Cubasis LE applications for iOS devices which are available free of charge from Yamaha and Steinberg to support and inspire your audio content creation.

Country of origin: Malaysia
Importer Details: Yamaha Music India Pvt. Ltd ; Unit No. 601∼608, 6th Floor, Tower-D,Global Business Park, Sector-26,Mehrauli-Gurgaon Road,Gurugram-122002 Haryana, India
More Information
Technical Specifications
AG03MK2
Outline
Outline
Input ChannelsMono[MIC/LINE] 1 - Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power) *CH1 input and Headset mic cannot be used simultaneously
Stereo[LINE] 1 - Stereo Line / Guitar Input (Mono)
Smartphone 1 - 4-pole mini input/output (TRRS)
USB 1
Output ChannelsPHONES 1 - PHONES / HEADSET PHONES *Cannot be used simultaneously
Smartphone 1 - 4-pole mini input/output (TRRS)
MONITOR OUT 2 - L/R Stereo: Phone, RCA
USB 1
Bus 1 Stereo
Functions MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
On-board processorsDSP COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller
USBUSB Audio 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
USB DC Power input 1 - Type-C, 5 V DC, 900 mA
General specifications
Power requirements 5 V DC, 900 mA
Power consumption Max. 4.5 W
DimensionsW 126 mm (5.0")
H 63 mm (2.5")
D 201 mm (7.9")
Net weight 0.8 kg (1.8 lbs)
Included Accessories USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
Others Operating Temperature: 0 to + 40 ℃
