Yamaha AG03MK2 Live Streaming Mixer Black

Yamaha AG03MK2 Live Streaming Mixer Black

Yamaha AG03MK2 LSPK Live Streaming Pack Black

Yamaha AG03MK2 LSPK Live Streaming Pack Black

Yamaha AG03MK2 LSPK Live Streaming Pack White

Home Audio Streaming Yamaha AG03MK2 LSPK Live Streaming Pack White
₹33,000

Inclusive of all taxes

No Cost EMI available for this product - T&Cs

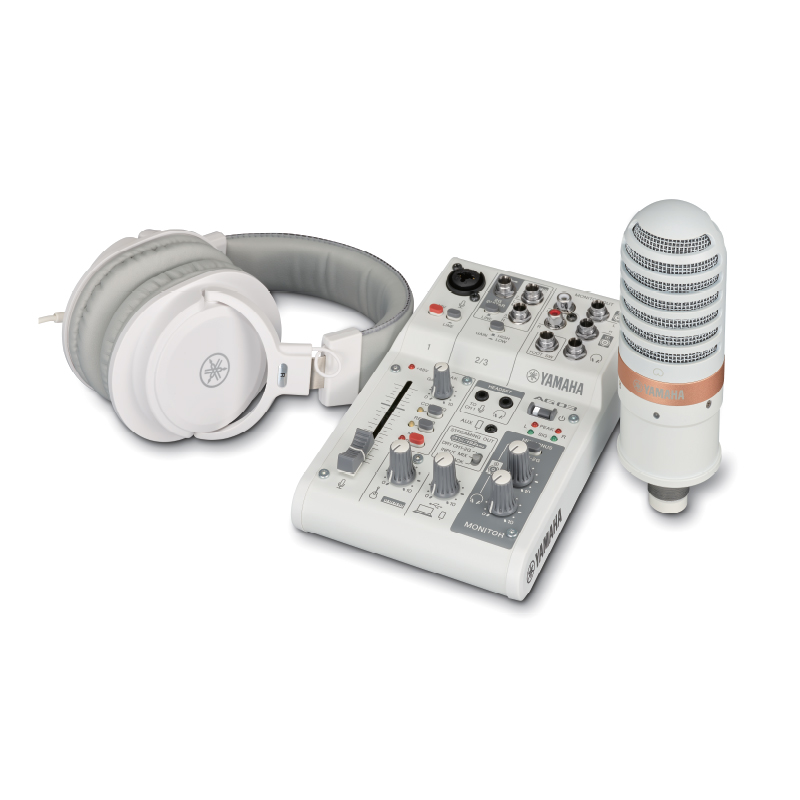

A comprehensive package of the AG03MK2 that includes all the products you need to get started with live streaming right away.

  • New design with two models in black and white
  • AG03MK2: 3-channel Live Streaming mixer with USB audio interface
  • YCM01: Studio-quality condenser microphone (XLR, Cardioid type)
  • YH-MT1: Studio-quality headphones
  • XLR microphone cable (3 m, Black)

Your Audience Awaits

The AG03MK2 LSPK (Live Streaming Package) is a full streaming setup that includes, and centers around an AG03MK2 3-channel mixer— the successor to the AG03 console that has become a mainstay of the personal live streaming market. The package also includes a YCM01 cardioid condenser microphone ideal for live vocal or instrument performances, as well as YH-MT1 high-fidelity headphones, and an XLR mic cable to complete this simple yet powerful streaming station.

Ideal for beginners or users building a new system from scratch, LSPK packages and their respective products come in either black or white, for a unifying aesthetic that makes it easier to adapt your new system to your particular streaming environment.

Country of origin: Malaysia
Importer Details: Yamaha Music India, P 401, JMD Megapolis, Sohna Rd, Sector 48, Gurugram, Haryana 122018
More Information
Technical Specifications
AG03MK2
Outline
Outline
Input ChannelsMono[MIC/LINE] 1 - Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power) *CH1 input and Headset mic cannot be used simultaneously
Stereo[LINE] 1 - Stereo Line / Guitar Input (Mono)
Smartphone 1 - 4-pole mini input/output (TRRS)
USB 1
Output ChannelsPHONES 1 - PHONES / HEADSET PHONES *Cannot be used simultaneously
Smartphone 1 - 4-pole mini input/output (TRRS)
MONITOR OUT 2 - L/R Stereo: Phone, RCA
USB 1
Bus 1 Stereo
Functions MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
On-board processorsDSP COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller
USBUSB Audio 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
USB DC Power input 1 - Type-C, 5 V DC, 900 mA
General specifications
Power requirements 5 V DC, 900 mA
Power consumption Max. 4.5 W
DimensionsW 126 mm (5.0")
H 63 mm (2.5")
D 201 mm (7.9")
Net weight 0.8 kg (1.8 lbs)
Included Accessories USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
Others Operating Temperature: 0 to + 40 ℃



YCM01
Microphone Unit Back electret condenser type
Polar Pattern Cardioid
Adress Type Side
Frequency Response 30 Hz - 20 kHz
Max Input SPL 130 dB (THD ≦ 1.0 % at 1 kHz)
Sensitivity -37 dB ± 3 dB (0 dB=1V/Pa, at 1kHz)
Connector XLR
Dimensions (Microphone Only) Ø55 x 166 mm (Ø2.2" x 6.5")
Weight (Microphone Only) 0.4 kg (0.9 lbs)
Included Accessories Microphone stand adaptor x 1, Microphone pouch x 1, Owner’s manual, Technical specifications
