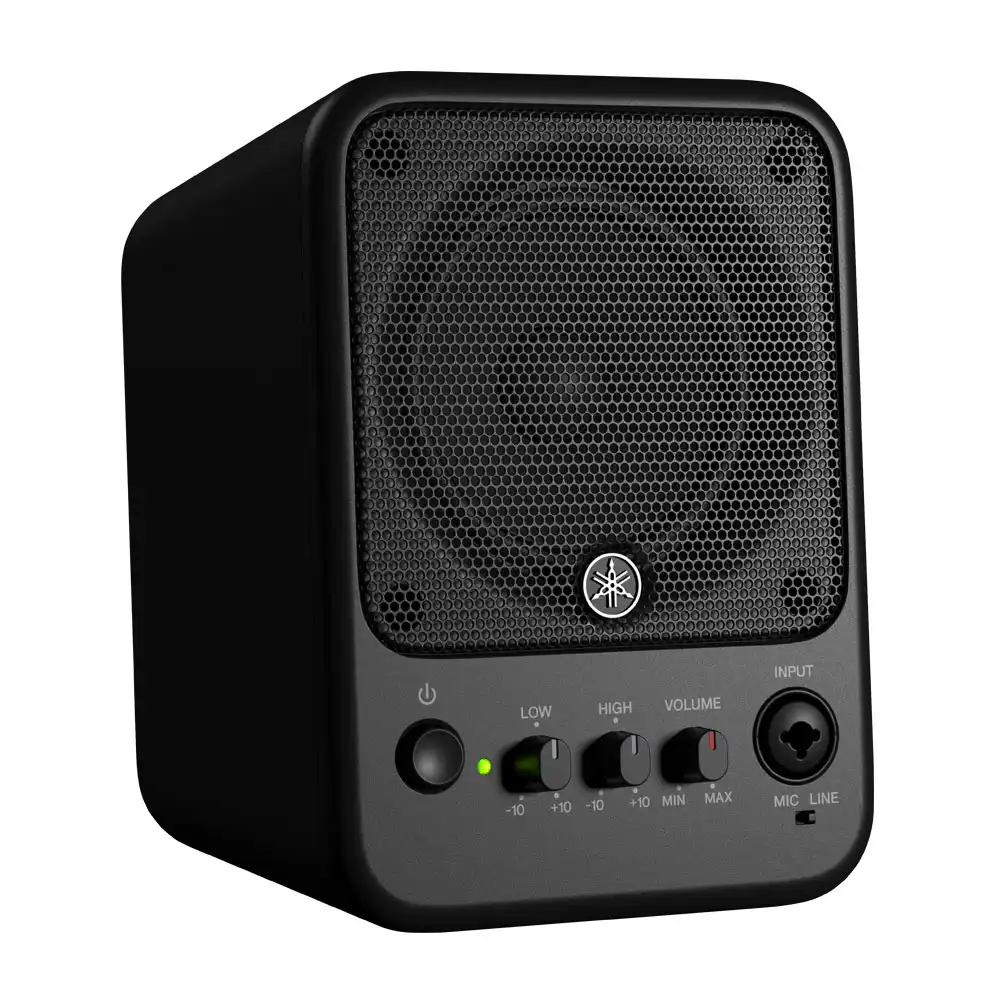

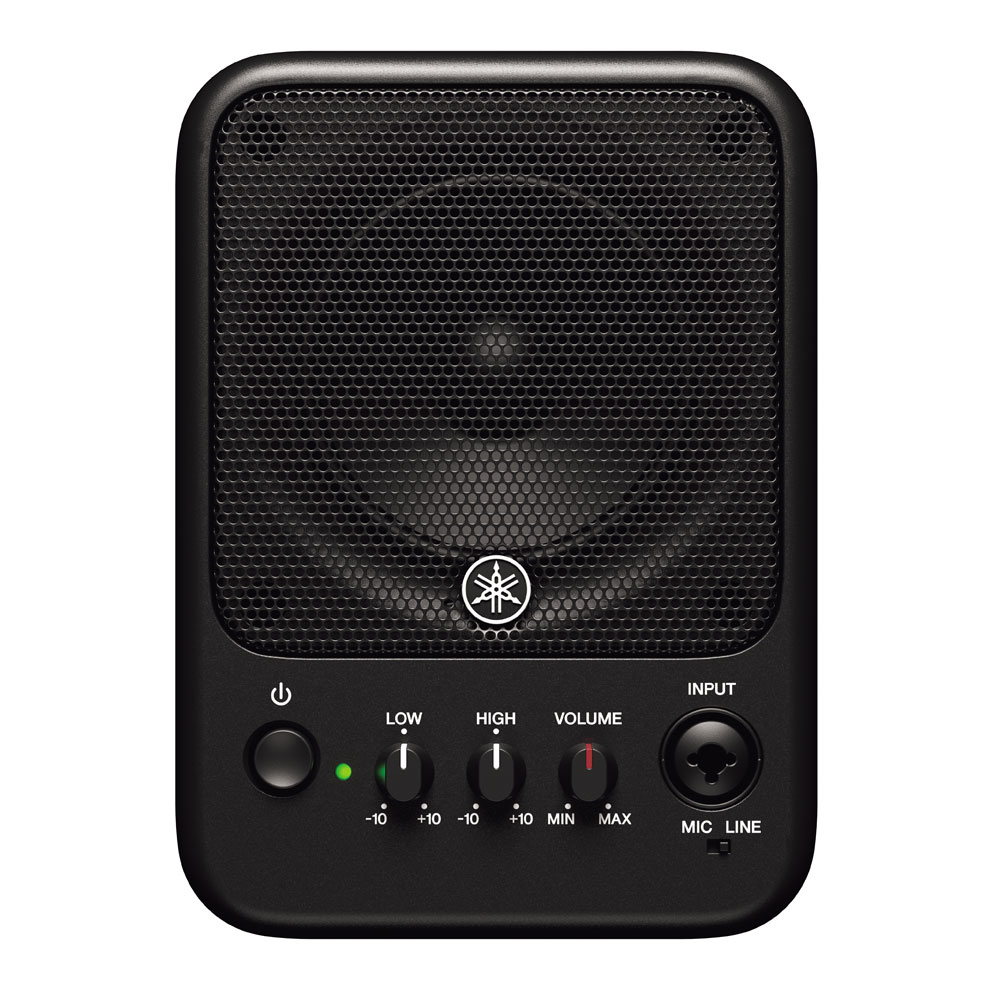

MS101-4 Powered Monitor Speaker

Name: MS101-4 Powered Monitor Speaker
Brand: Yamaha
SKU: VEQ4430
Price: 13100 INR
Availability: OutOfStock

MS101-4 Powered Monitor Speaker

MRP

₹ 13,100

Inclusive of all taxes

Offers

Bank Offer No Cost EMI is available on cart value

Save ₹4,995 Offer Details

Check Delivery

Highlights

30W of amplifier power provides clean, high output sound.
Redesigned enclosure for an even lower profile.
Combo Input jack accepts both XLR and 1/4" connectors.
Directly mountable on Euro microphone stands (Optional mic stand adaptor BMS-10A is available for adjusting tilt angle)

Description
Technical Specification

MS101-4 is a standard model in our range of desktop utility powered monitors, It offers portability in a compact design and simple but comprehensive functions for outstanding usability.

MS101-4
General specifications
Speaker type	Full range Powered Speaker, Bass-reflex Type
Frequency range (-10dB)	77 Hz–20 kHz
Maximum output level (1m; on axis)	115 dB SPL *1
Components	LF-HF	4" Cone, 1" Voice coil, Ferrite magnet
Dimensions	W	142 mm
	H	196 mm
	D	187 mm
Net weight		2.1 kg (4.6 lbs)
Flying and mounting hardware		Screw threads (bottom): 2 x M5 depth 11 mm pitch 60 mm (for 2, M5 x 6-10 mm screws), 1 x 3/8" depth 12 mm (for 1 x 3/8" x 9-11 mm screw)
Amplifier class		Class-D
Power rating	Dynamic	30 W
Power rating	Continuous	20 W
Cooling		Natural cooling (no fan)

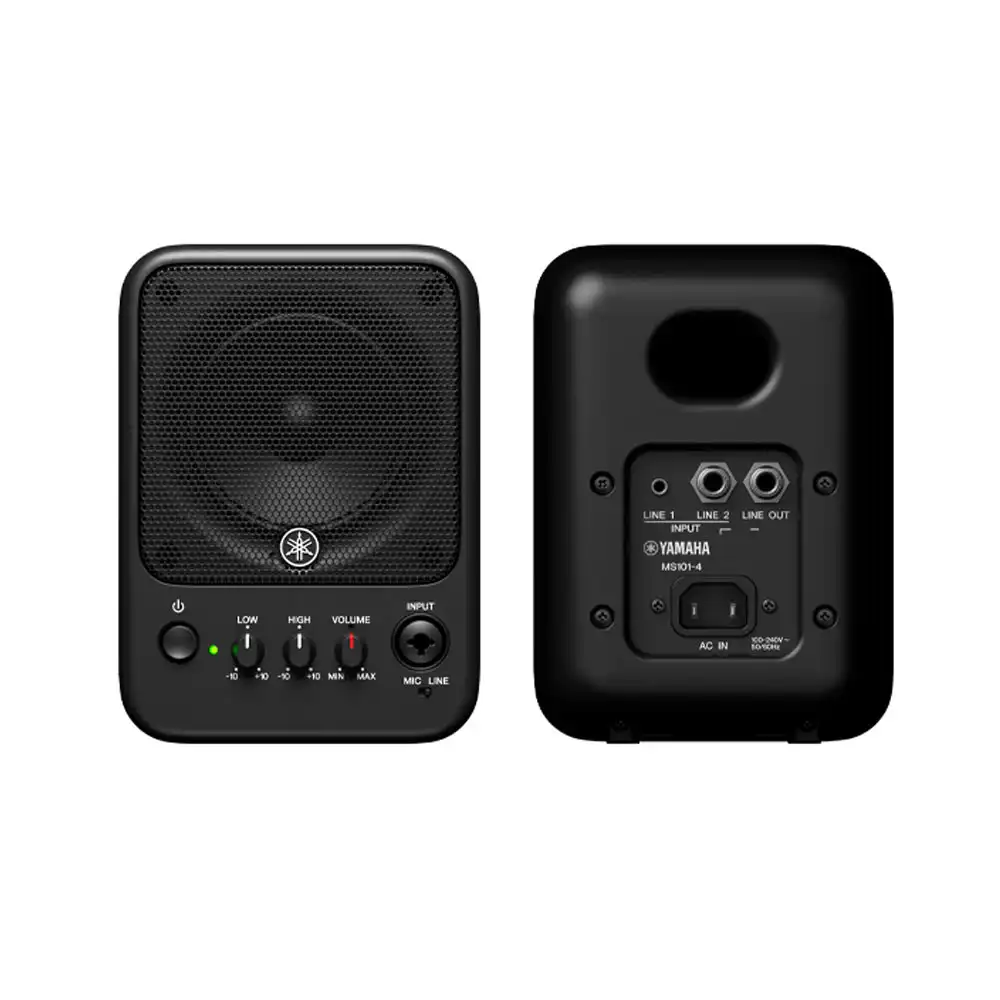

I/O Connectors	Mic Input	[Front] INPUT: Combo, [Rear] INPUT LINE 1: Stereo Mini, INPUT LINE 2: Phone (TRS)
	Line Out	1 x Phone (TRS)
	AC	1 x AC inlet
Input impedance		[Front] INPUT: LINE=5.4 kΩ / MIC= 5.4 kΩ, [Rear] INPUT LINE 1,2: 10 kΩ
Input sensitivity		[Front] INPUT: LINE=-10 dBu / MIC=-40 dBu, [Rear] INPUT LINE 1, 2: -10 dBu (VOLUME: Maximum)
Input Level		[Front] INPUT: LINE=+5 dBu / MIC=-25 dBu, [Rear] INPUT LINE 1, 2: +5 dBu (Nominal Input Level / VOLUME: Center), [Front] INPUT: LINE=+20 dBu / MIC=-10 dBu, [Rear] INPUT LINE 1, 2: +20 dBu (Maximum Input Level)
Others		Controls: 1 x VOLUME, 1 x LOW CONTROL, 1 x HIGH CONTROL, POWER
Indicators		POWER (Green LED)
Power consumption		1/8 Power Consumption: 10 W, Idle Power Consumption: 3 W
Power requirements		100 V - 240 V, 50/60 Hz
Options		Mic stand adaptor BMS-10A, Free-angle clamp BAS-10, Wall mounting bracket BWS20-190, Ceiling bracket BCS20-150 / BCS20-210
*1: Measured peak SPL with pink noise @1m.

Country of origin: China

Importer Details: Yamaha Music India Pvt. Ltd ; Unit No. 601∼608, 6th Floor, Tower-D,Global Business Park, Sector-26,Mehrauli-Gurgaon Road,Gurugram-122002 Haryana, India
