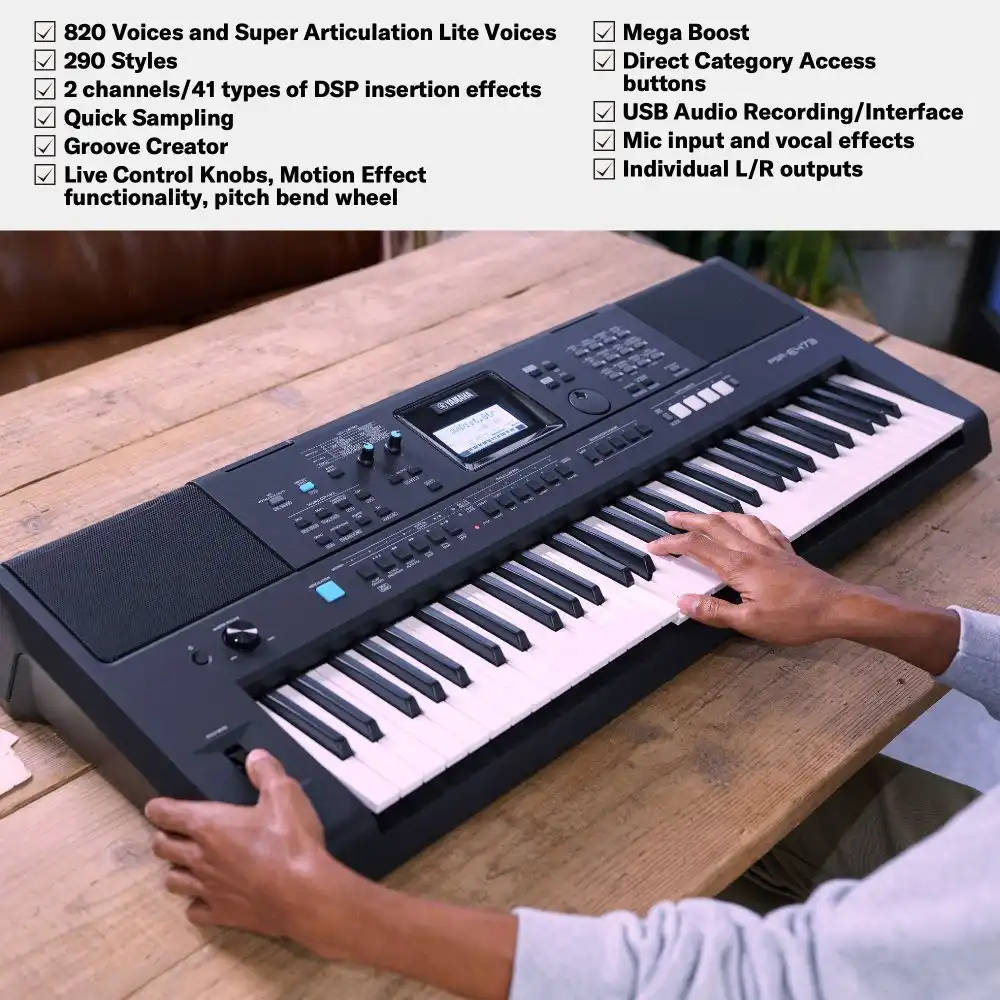

Enjoy 820 realistic, expressive instrument sounds from here and around the world with pro-level sound quality.

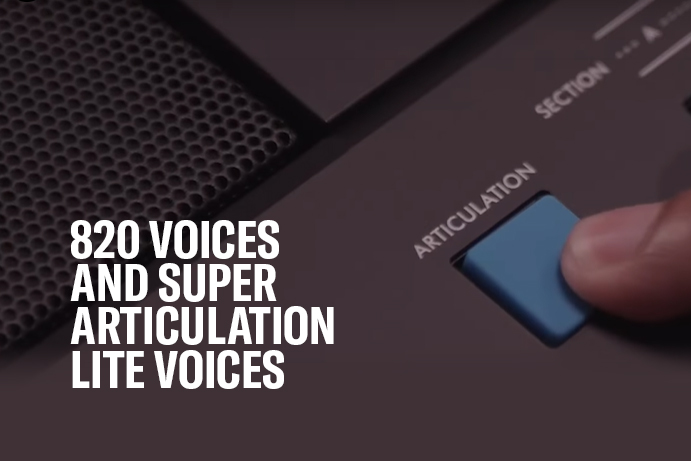

The PSR-E473 is equipped with Super Articulation Lite, a function that realistically simulates the distinct ways each instrument is played—for example, the scratch sound of a distorted electric guitar or the harmonics of a nylon-string guitar.

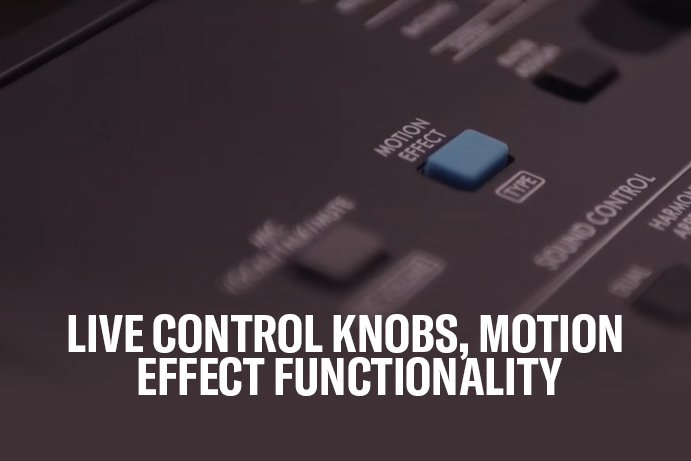

The Motion Effect function lets you instantly add effects while you play that can, morph the sound with a filter, create pitch risers, add tape stop effects & slices, or other new dynamic sound effects. All by simply holding down the button!
The two Live Control Knobs make it easy to manipulate and interact with the sound you produce as you play.

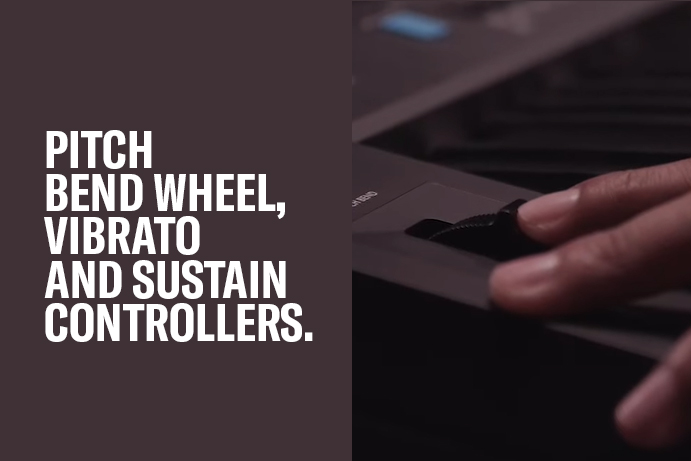

Moving the pitch bend wheel up or down changes the note you're playing smoothly, bringing instrument Voices like guitars, sax and trumpet and synthesizers to life, widening your range of expression.

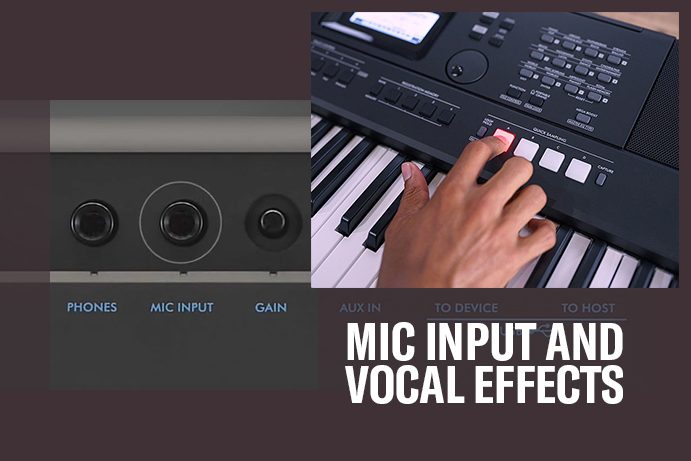

Connect a microphone and sing along with your playing while using built-in studio-quality vocal effects, giving you everything you need for a pro-sounding performance.

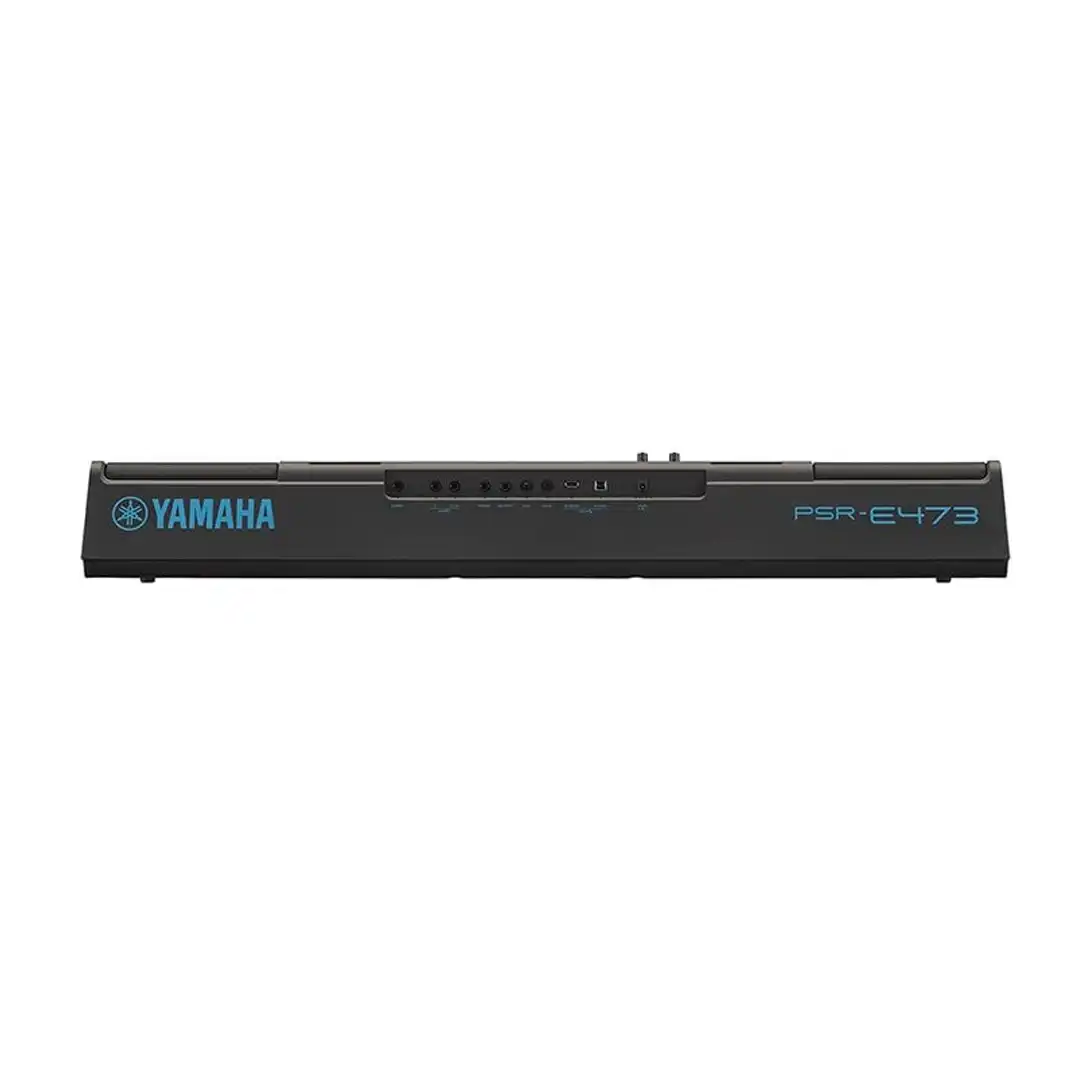

The PSR-E473 comes equipped with left and right audio outputs that allow you to easily connect to PA systems and studio equipment - separate from the headphones jack.
| PSR-E473 | ||
|---|---|---|
| Color/Finish | ||
| Size/Weight | ||

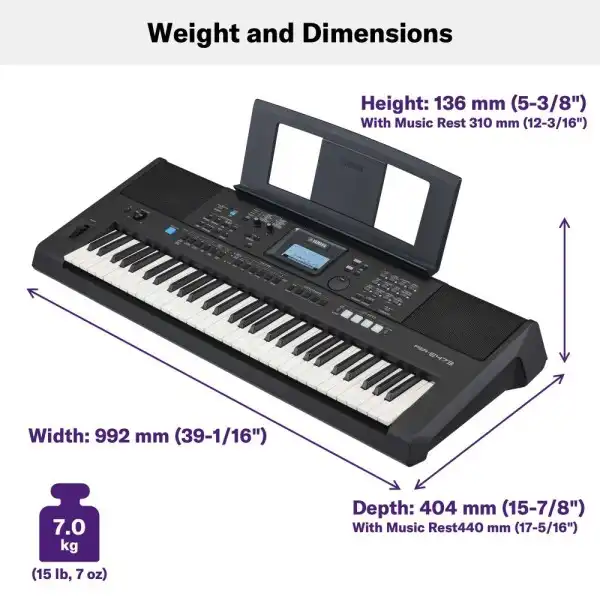

| Dimensions | Width | 992 mm (39-1/16”) |
| Height | 136 mm (5-3/8”) | |
| Depth | 404 mm (15-7/8”) | |
| Weight | Weight | 7.0 kg (15 lb, 7 oz) (not including batteries) |

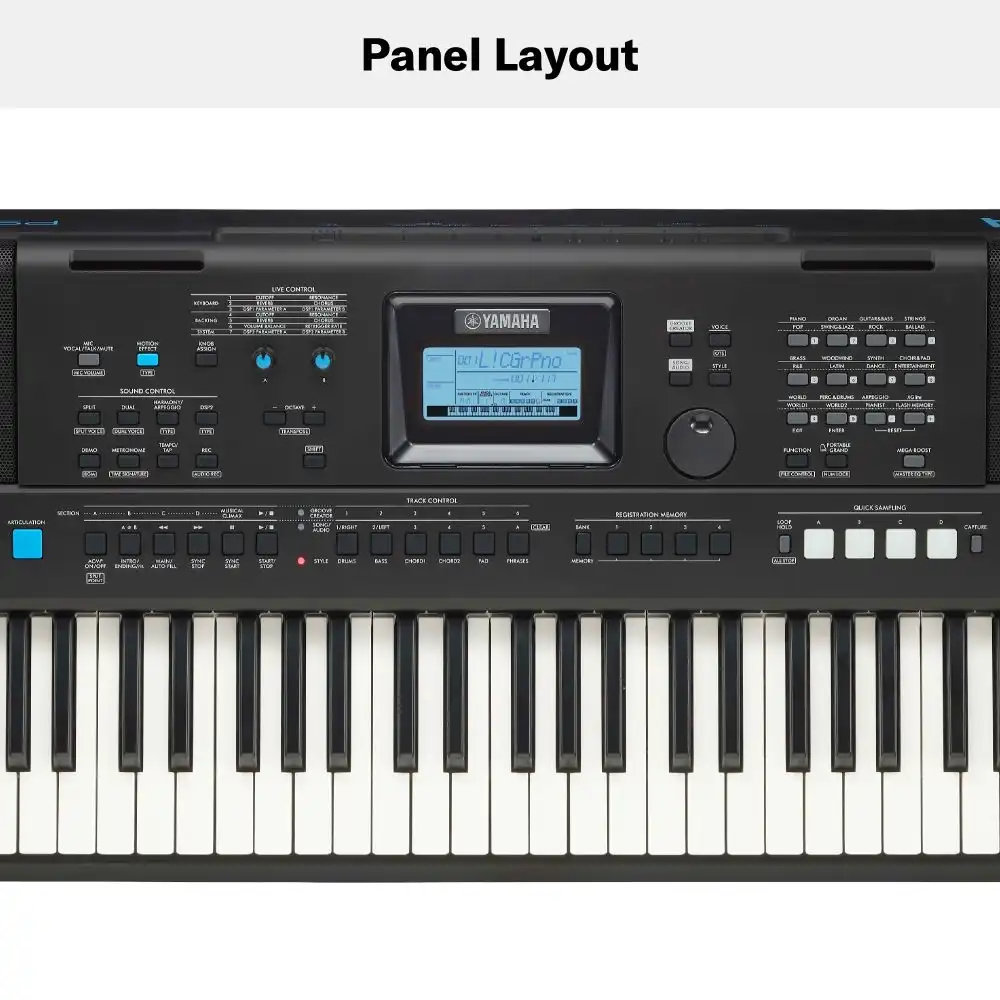

| Control Interface | ||

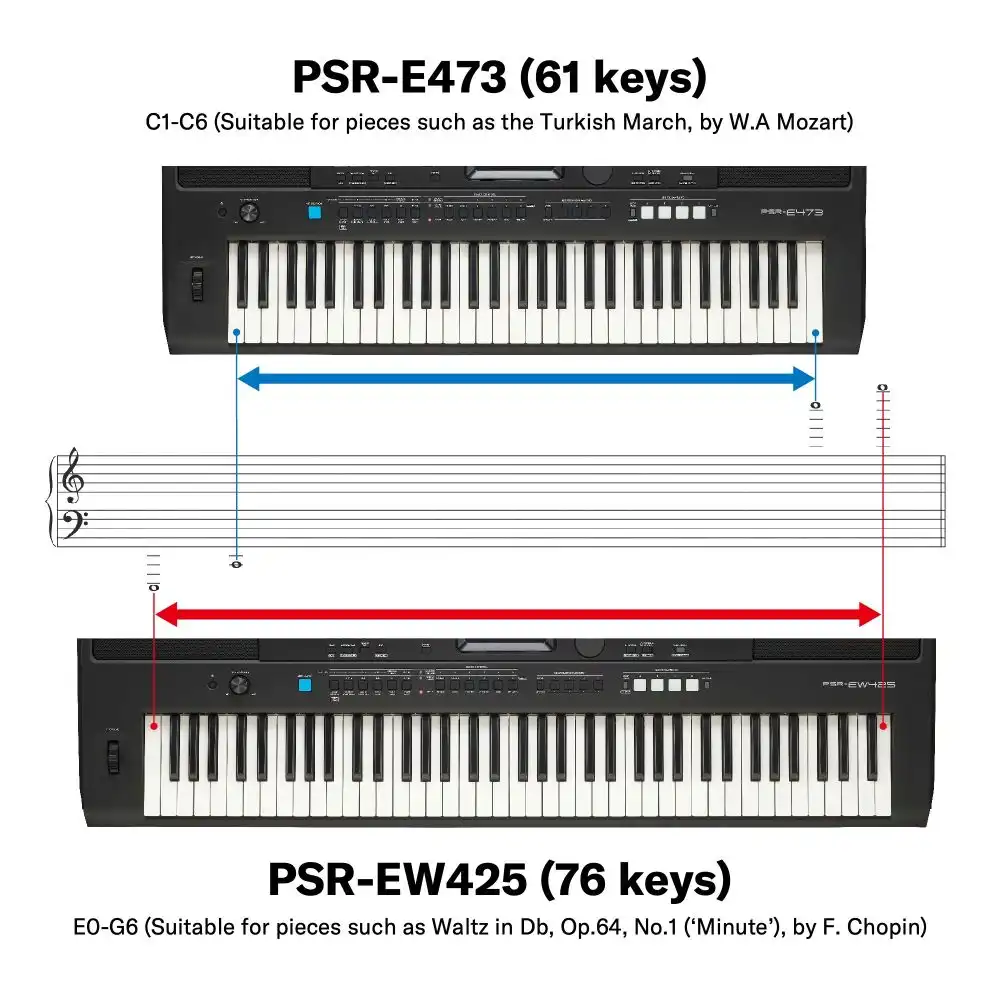

| Keyboard | Number of Keys | 61 |
| Type | Organ-style | |
| Touch Response | Yes (Soft, Medium, Hard, Fixed) | |
| Other Controllers | Pitch Bend | Yes |
| Art. Switches | Yes | |
| Control Knobs | 2 | |
| Display | Type | LCD |
| Backlight | Yes | |
| Panel | Language | English |
| Voices | ||
| Tone Generation | Tone Generating Technology | AWM Stereo Sampling |
| Polyphony | Number of Polyphony (Max.) | 64 |
| Preset | Number of Voices | 820 (294 Panel Voices + 28 Drum/SFX kits + 40 Arpeggio + 458 XGlite Voices) |
| Featured Voices | 3 Live! Voices, 9 Sweet! Voices, 6 Cool! Voices, 14 Super Articulation Lite Voices | |
| Compatibility | GM | Yes |
| XGlite | Yes | |
| Effects | ||
| Types | Reverb | 12 types |
| Chorus | 5 types | |

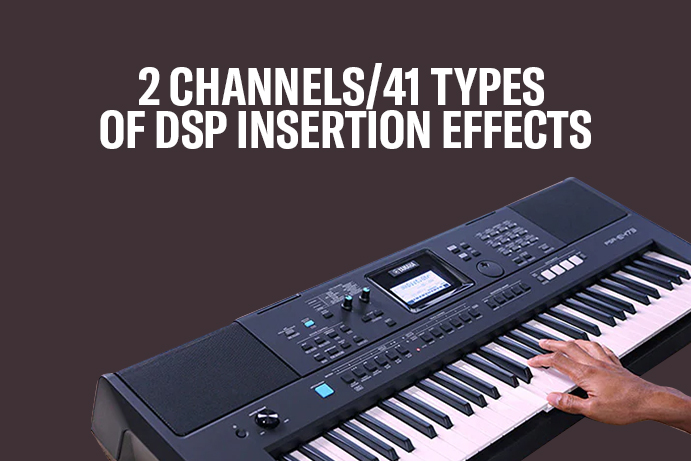

| DSP | DSP1: 41 types, DSP2: 12 types | |
| Master EQ | 4 types | |
| Functions | Dual/Layers | Yes |
| Split | Yes | |
| Melody Suppressor | Yes (w/ pan adjustment) | |
| Crossfade | Yes (between Internal Sound and External Audio) | |
| Accompaniment Styles | ||
| Preset | Number of Preset Styles | 290 |
| Fingering | Multi finger, Smart Chord | |
| Style Control | ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, TRACK ON/OFF | |
| Other Features | One Touch Setting (OTS) | Yes |
| Expandability | Expansion Style | 10 |
| Compatibility | Style File Format (SFF) | |
| Groove Creator | ||
| Preset | Number of Groove | 35 |
| Number of Sections | 5 (4 Sections + 1 Musical Climax/Ending) | |
| Songs | ||
| Preset | Number of Preset Songs | 30 |
| Recording | Number of Tracks | 6 (5 Melody + 1 Style/Groove Creator) |
| Number of Songs | 10 | |
| Data Capacity | Approx. 19,000 notes (when only “melody” tracks are recorded) | |
| Compatible Data Format | Playback | SMF (Formats 0 & 1) |
| Recording | Original File Format (SMF 0 conversion function) | |
| USB Audio Recorder | ||
| Recording Time (max.) | 80 minutes (approx. 0.9 GB) per Song | |
| Format | Playback | WAV (44.1 kHz, 16 bit, stereo) |
| Recording | WAV (44.1 kHz, 16 bit, stereo) | |
| Quick Sampling | ||
| Sampling Type | One-shot, Loop | |
| Sampling Time | Approx. 9.6 sec | |
| Sampling Sources | AUX IN, MIC INPUT, USB audio interface, WAV format files | |
| Sampling Format | Original File Format (16 bit, stereo) | |
| Sampling Rate | 44.1 kHz | |
| Functions | ||
| USB audio interface | 44.1 kHz, 16 bit, stereo | |
| Registration | Number of Buttons | 4 (x 8 banks) |
| Control | Freeze | |
| Overall Controls | Metronome | Yes |
| Tempo Range | 11 – 280 | |
| Transpose | -12 to 0, 0 to +12 | |
| Tuning | 427.0 – 440.0 – 453.0 Hz (approx. 0.2 Hz increments) | |
| Octave Button | Yes | |
| Scale Type | 5 types | |
| Miscellaneous | PIANO Button | Yes (Portable Grand Button) |
| Other Functions | Mega Boost, Motion Effect (57 types) | |
| Voices | Harmony/Echo | 26 types |
| Arpeggio | 152 types | |

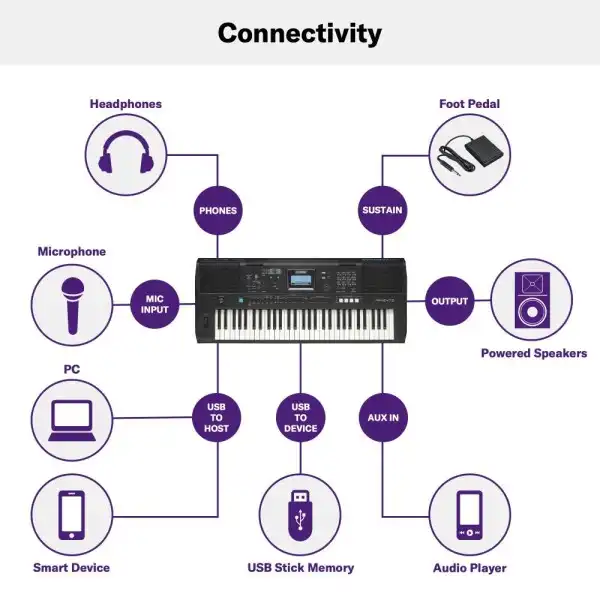

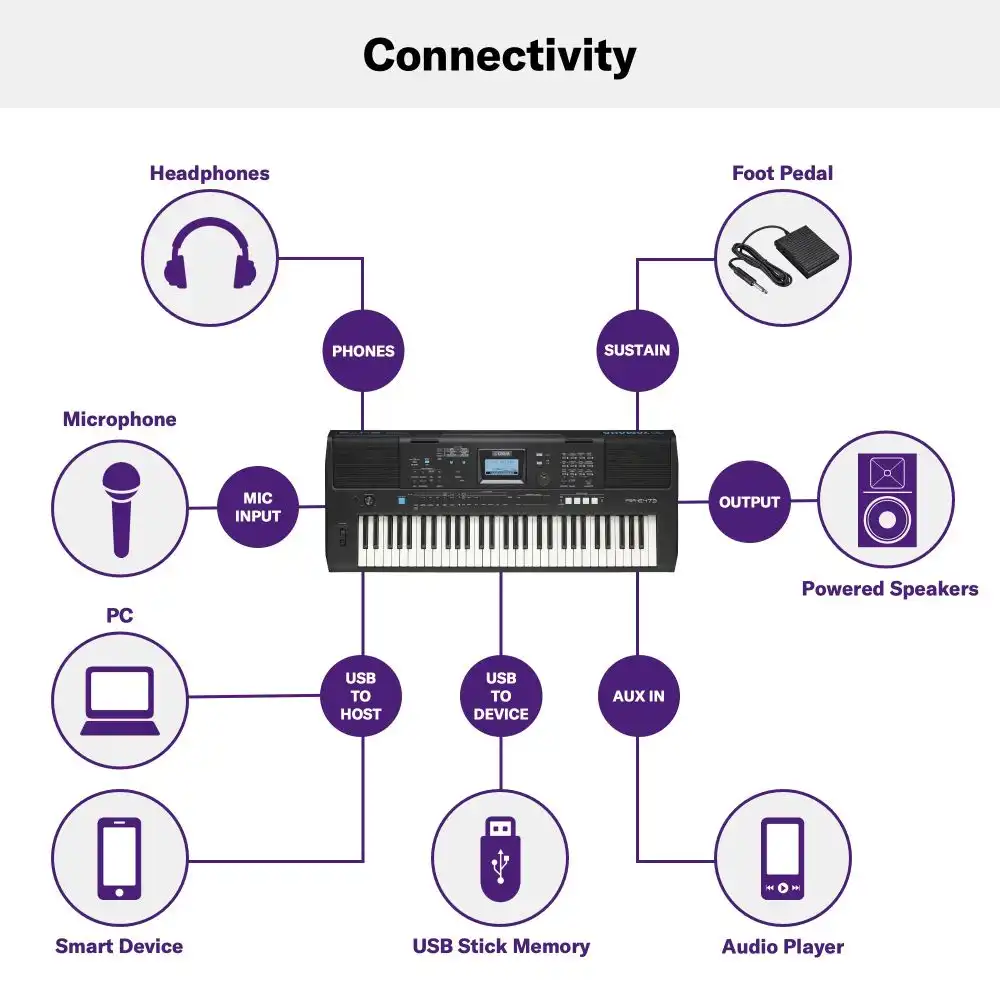

| Storage and Connectivity | ||
| Storage | Internal Memory | Approx. 1.72 MB |
| External Drives | USB flash drive | |
| Connectivity | DC IN | 12 V |
| AUX IN | Stereo mini jack x 1 | |
| Headphones | Standard stereo phone jack x 1 | |
| Sustain Pedal | Yes | |
| USB TO DEVICE | Yes | |
| USB TO HOST | Yes | |
| OUTPUT | Standard phone jack x 2 | |
| Microphone | Standard phone jack x 1 | |
| Amplifiers and Speakers | ||
| Amplifiers | 6 W + 6 W | |
| Speakers | 12 cm x 2 | |
| Power Supply | ||
| Power Supply | AC Adaptor PA-150 or an equivalent recommended by Yamaha, or six "AA" size alkaline (LR6), manganese (R6) or Ni-MH rechargeable (HR6) batteries | |
| Power Consumption | 9 W (When using PA-150 AC adaptor) | |
| Auto Power Off Function | Off/5/10/15/30/60/120 (minutes) | |

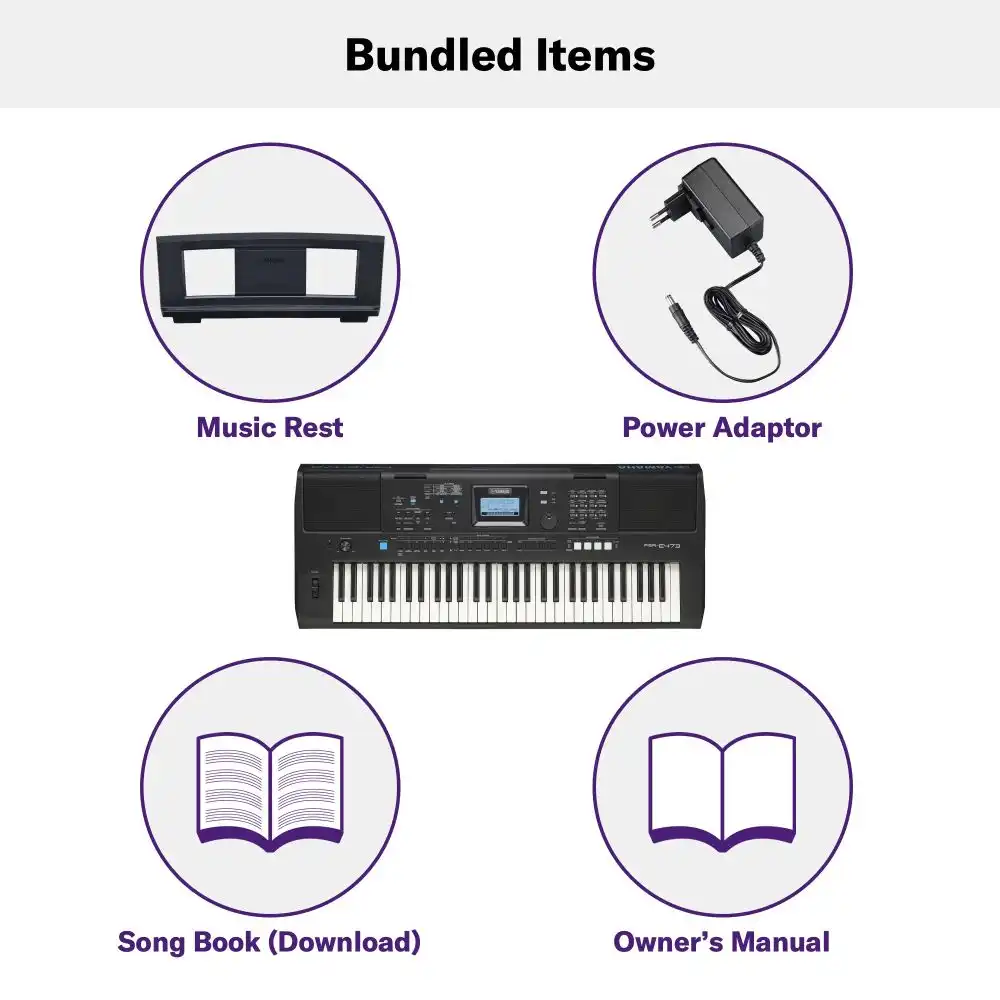

| Accessories | ||

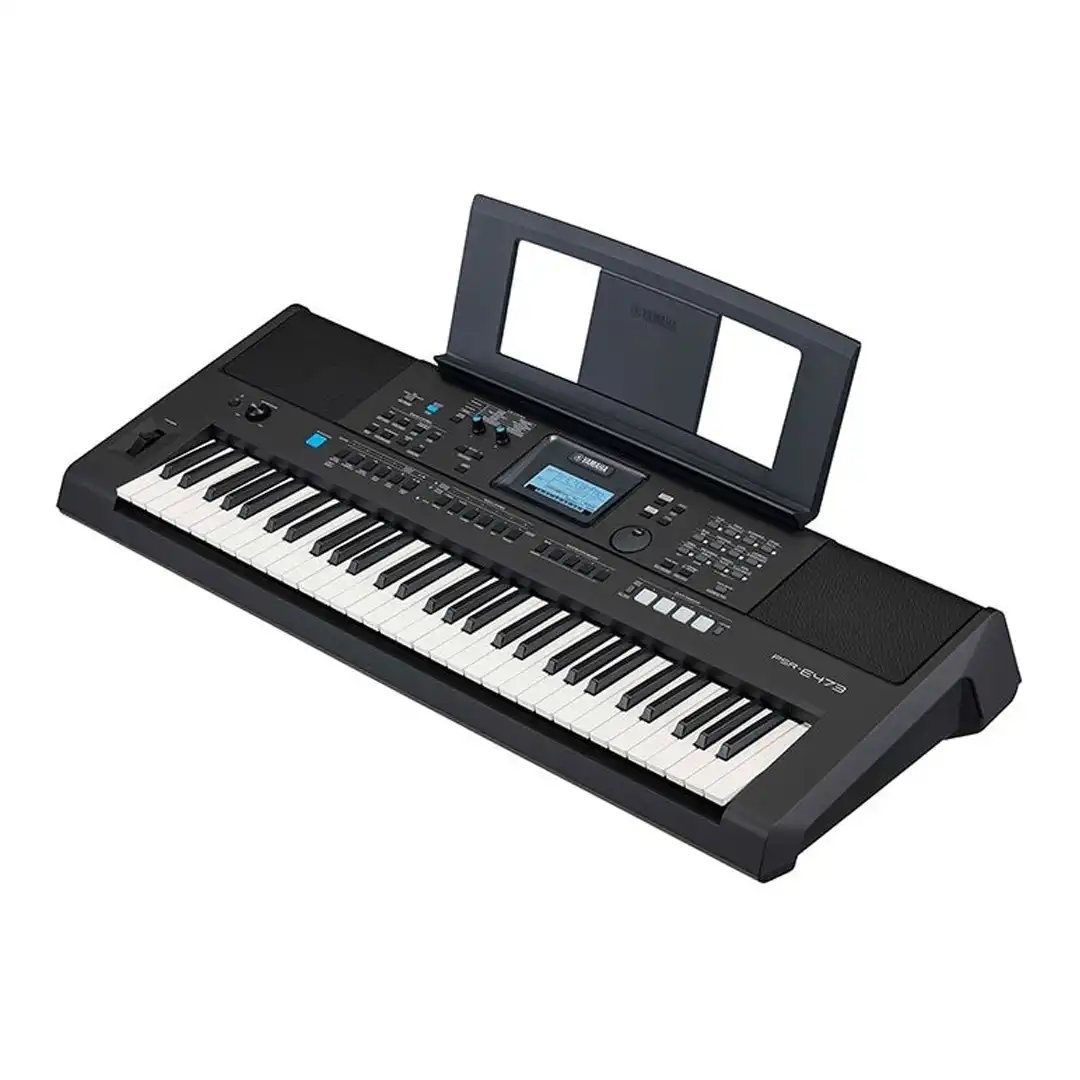

| Included Accessories | Music Rest | Yes |
| Song Book | Download from Yamaha web site | |
Country of origin: India
Importer Details: Yamaha Music India Pvt. Ltd ; Unit No. 601∼608, 6th Floor, Tower-D,Global Business Park, Sector-26,Mehrauli-Gurgaon Road,Gurugram-122002 Haryana, India
