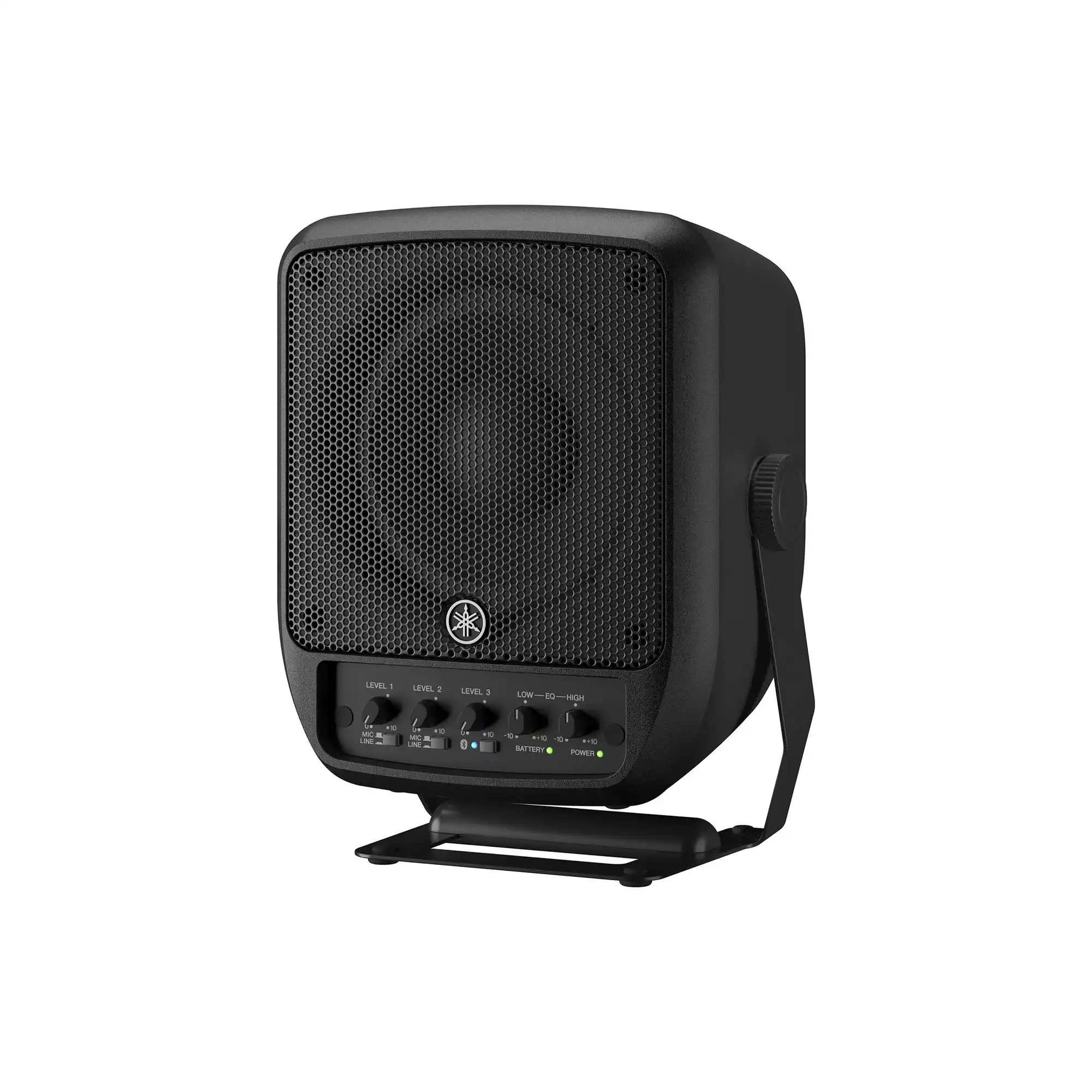

Check DeliveryThe STAGEPAS 100 portable PA system strikes a perfect balance between high-quality sound and ultimate portability that will allow you to turn virtually any location into your own intimate live stage.
The STAGEPAS 100 portable PA system strikes a perfect balance between high-quality sound and ultimate portability that will allow you to turn virtually any location into your own intimate live stage. Coming in two versions, one with a battery and one without, the lightweight yet durable design, effort-less operation, and astonishing sound of the STAGEPAS 100 will help you reach your audience with the full expression of your performance.
Far more than just a speaker that amplifies your mic or instrument inputs, the diminutive STAGEPAS 100 delivers impressive sonic performance by leveraging some of the same technologies used in our high-end professional products. A powerful, high-quality coaxial compression driver combined with Yamaha’s FIR-X filters for the HF and LF crossover deliver sound pressure, precise phase response, and a natural dispersion that will ensure every nuance of your performance is conveyed loud and clear to your audience.

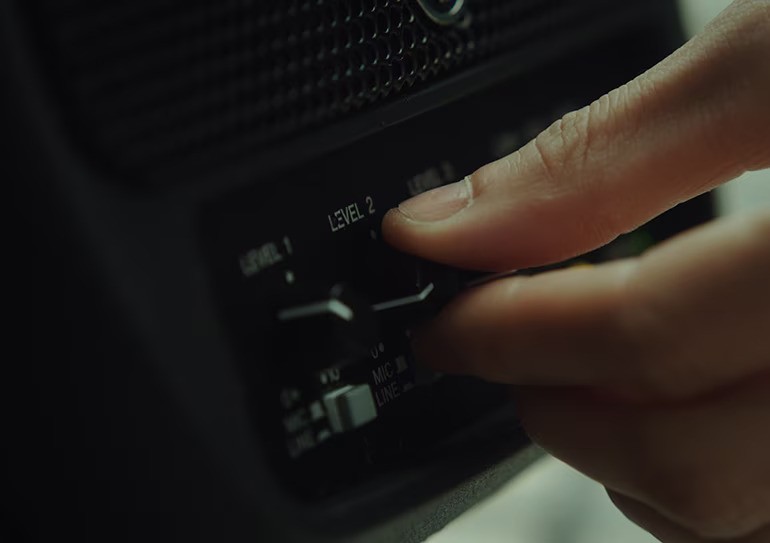

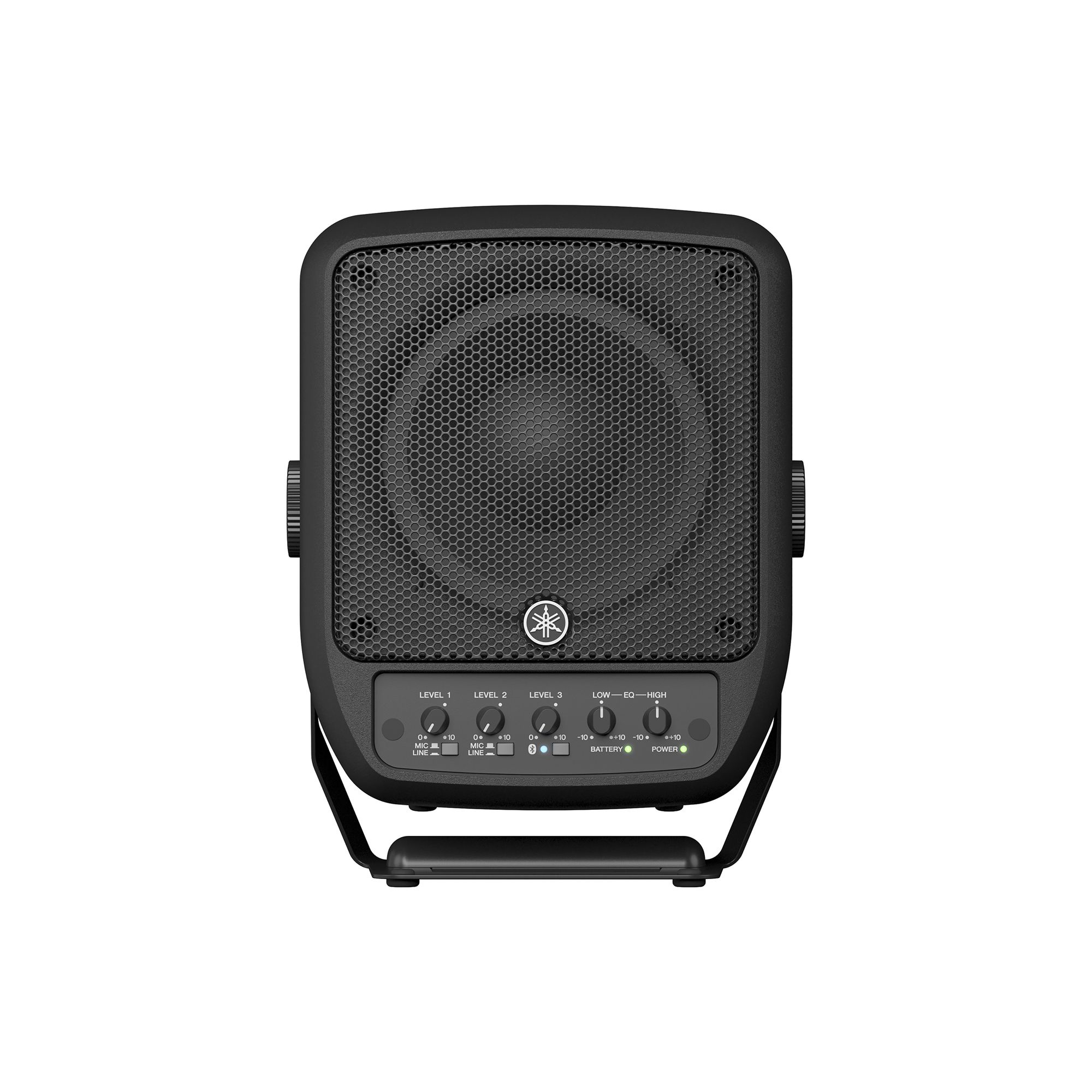

With an unrivaled ease of operation and a setup requiring mere seconds, the STAGEPAS 100 will have you sounding great and performing in an instant. Just turn the power on, connect a micro-phone and your instrument, turn the volume up, and you're ready to go. The master EQ is right on the front panel making it easy to dial in your sound or adjust settings on the fly.

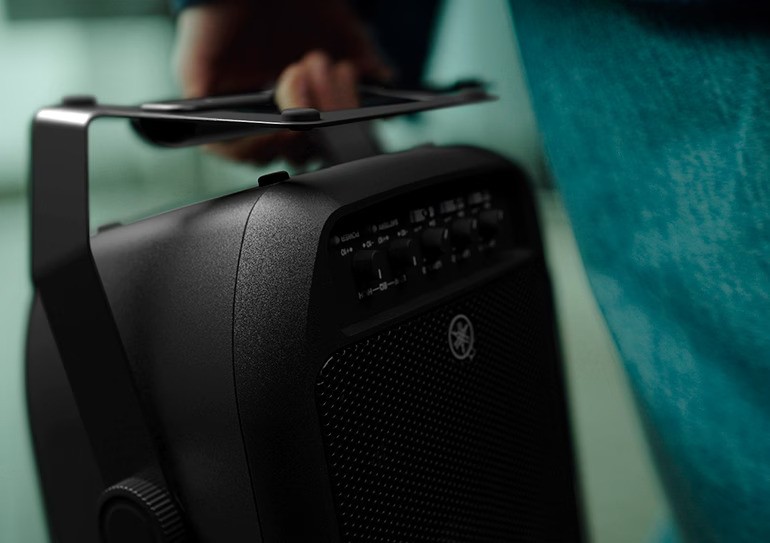

With all the essentials for a compact PA packed into a durable cabinet weighing just 5 kg, the STAGEPAS 100 takes portability to a whole new level. Having a personal live stage you can easily carry in one hand makes it possible to set up and play literally anywhere, anytime.
The STAGEPAS 100BTR is compatible with large-capacity lithium-ion batteries capable of up to 6 hours of continuous operation, delivering reliable performance in environments where there is no power source available.
The STAGEPAS 100 also comes equipped with multipoint supported Bluetooth functionality adding even more convenience to your set up and operation with wireless connection for music/ audio playback using smartphones and tablets.

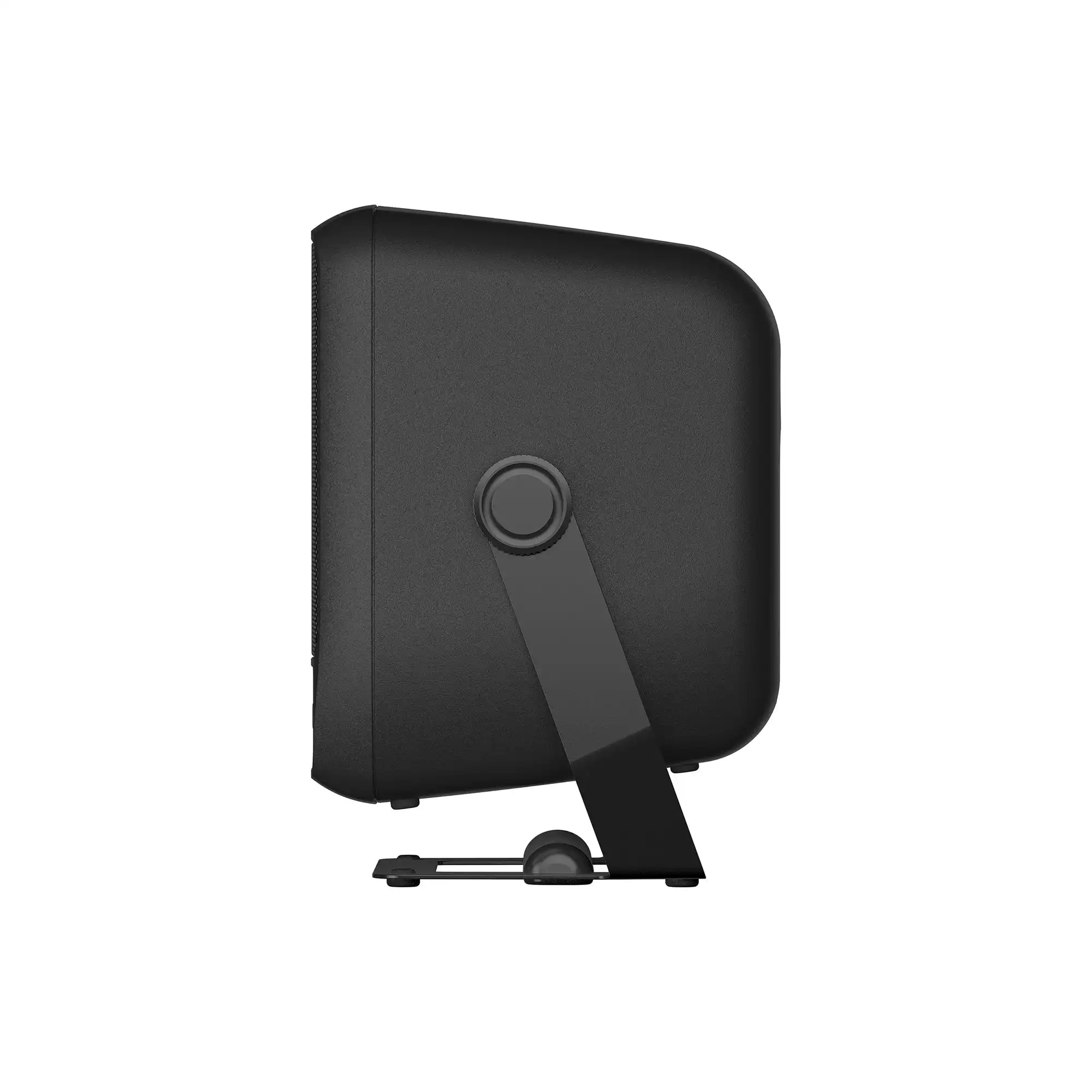

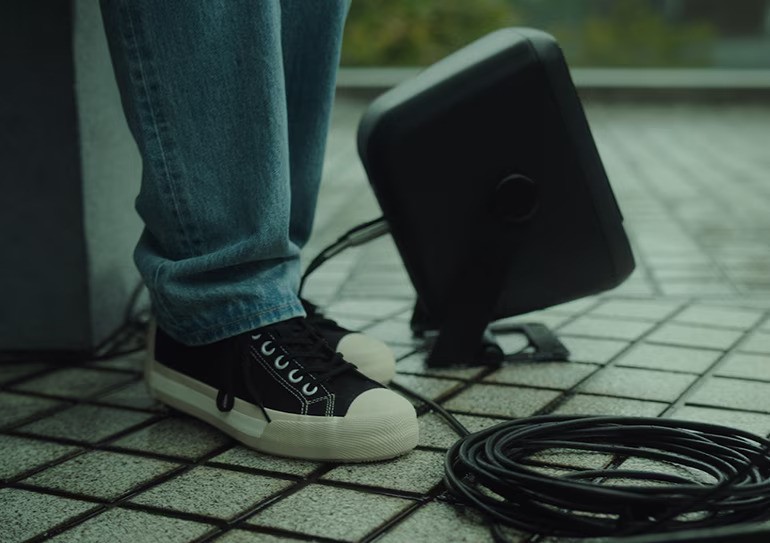

Easily control your coverage area with the carrying handle that doubles as a stand when the unit is placed on the floor. The attachment screws can be adjusted to change the angle of inclination to direct your sound exactly where it needs to go.
The handle of the STAGEPAS 100 also features a 3/8" diameter screw hole that enable mounting on a microphone stand for more versatile sound dispersion options.
The dedicated BAG-STP100 carrying bag features internal pockets for storing adapters, cables etc., as well as a padded shoulder strap for safe and easy transport to any location.
| STAGEPAS 100BTR | ||
|---|---|---|
| Outline | ||

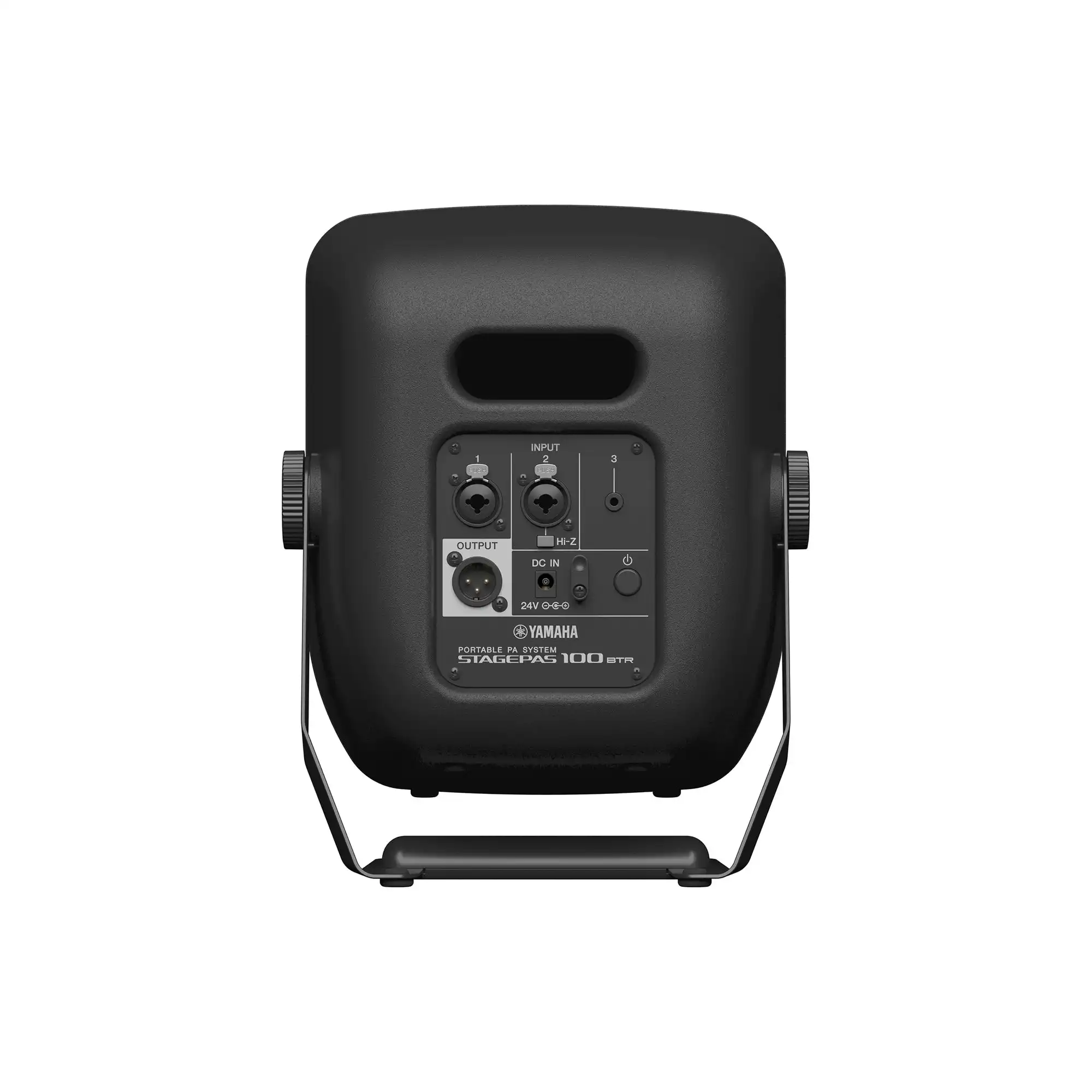

| I/O | Inputs | INPUT 1: Combo (mic/line), INPUT 2: Combo (mic/line), INPUT 3: Stereo Mini x1 (line) |
| Outputs | OUTPUT: XLR3-32 (INPUT 1-3 mix) | |
| Bluetooth | Ver.5.0, A2DP (SBC, AAC), Class 1 | |
| Type | 2-way Bi-amp Powered Speaker witd mixer | |
| Mixing capability | Mixing channels | 3 |
| Input channel functions | Hi-Z: CH2 | |
| Output channel functions | 2 Band EQ | |
| General specifications | ||
| Speaker type | Coaxial speaker witd compression driver | |
| Frequency range (-10dB) | 70 Hz 20 kHz | |
| Coverage area | H90ﾟ x V90ﾟ | |
| Crossover | 1.8 kHz (FIR-X) | |
| Maximum output level (1m; on axis) | 120 dB SPL *1 | |
| Components | LF | 6.5 Cone, 1.7 voice coil |
| HF | 1 throat compression driver, 1.4 voice coil | |
| Amplifier class | Class-D | |
| Power rating | Dynamic | 100 W (LF: 93 W, HF: 7 W) |
| Cooling | Natural convection (no fan) | |
| Power consumption | 10 W (Idle), 20 W (1/8 power) | |
| Power requirements | 100-240 V 50/60 Hz | |
| Battery | Type | Rechargeable Litdium ion battery pack |
| Capacity | 60 Wh | |
| Operating Time | Maximum 6 hours, 1/16 power continuous 5 hours | |
| Charging Time | Approx. 2.5 hours | |
| Cabinet material | Plastic (PP) | |
| Handle | Bottom x1 (Rotatable) | |
| Flying and mounting hardware | 1 × 3/8, depth 12 mm (center of handle) | |
| Dimensions (W x H x D) | 239 x 310 x 215 mm (9.5 x 12.3 x 8.5), with handle | |
| Weight | 5.5 kg (12.1 lbs), without AC adaptor | |
| Accessories | Power cord x 1, AC adaptor (PA-500) x 1 | |
| Options | Carrying bag: BAG-STP100 | |
