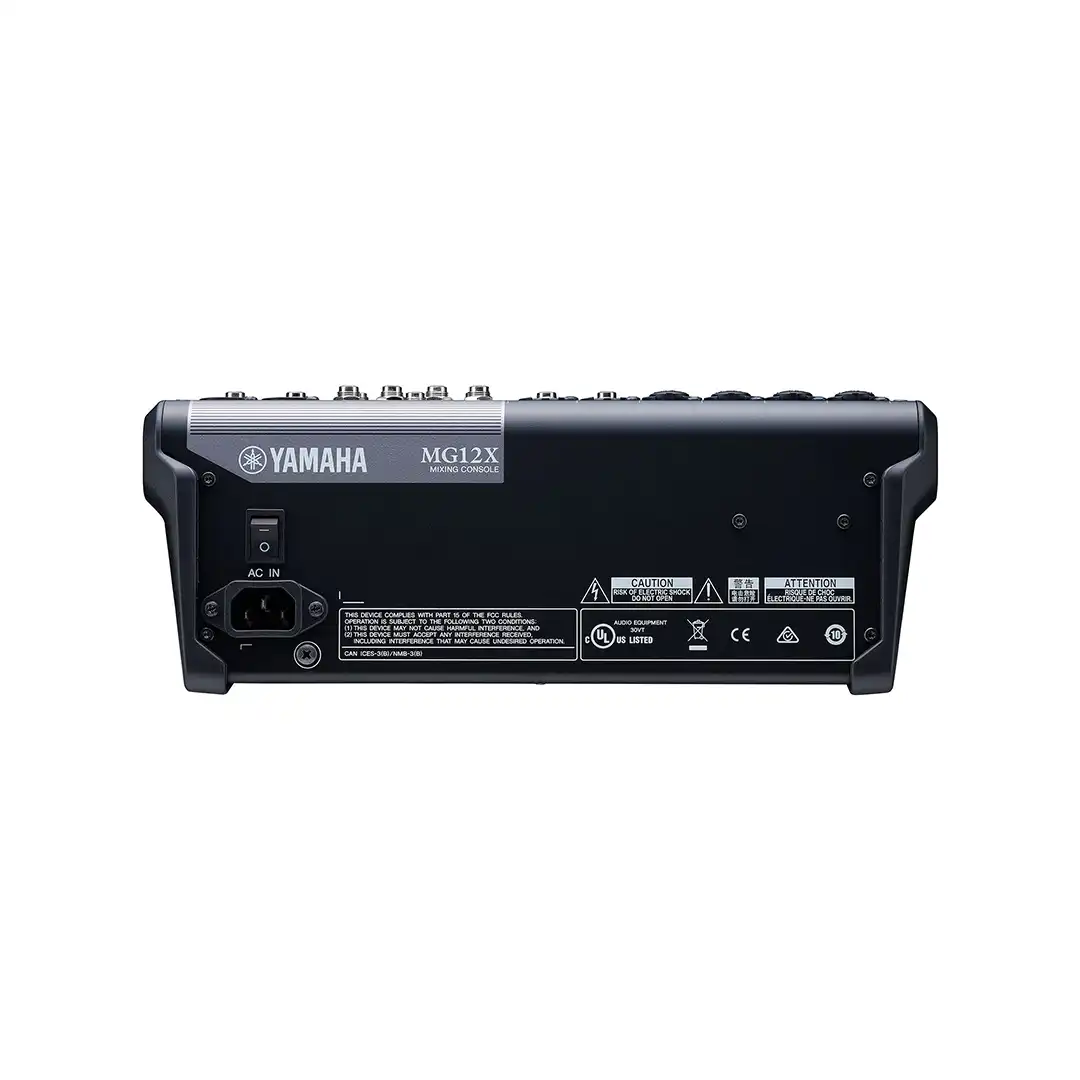

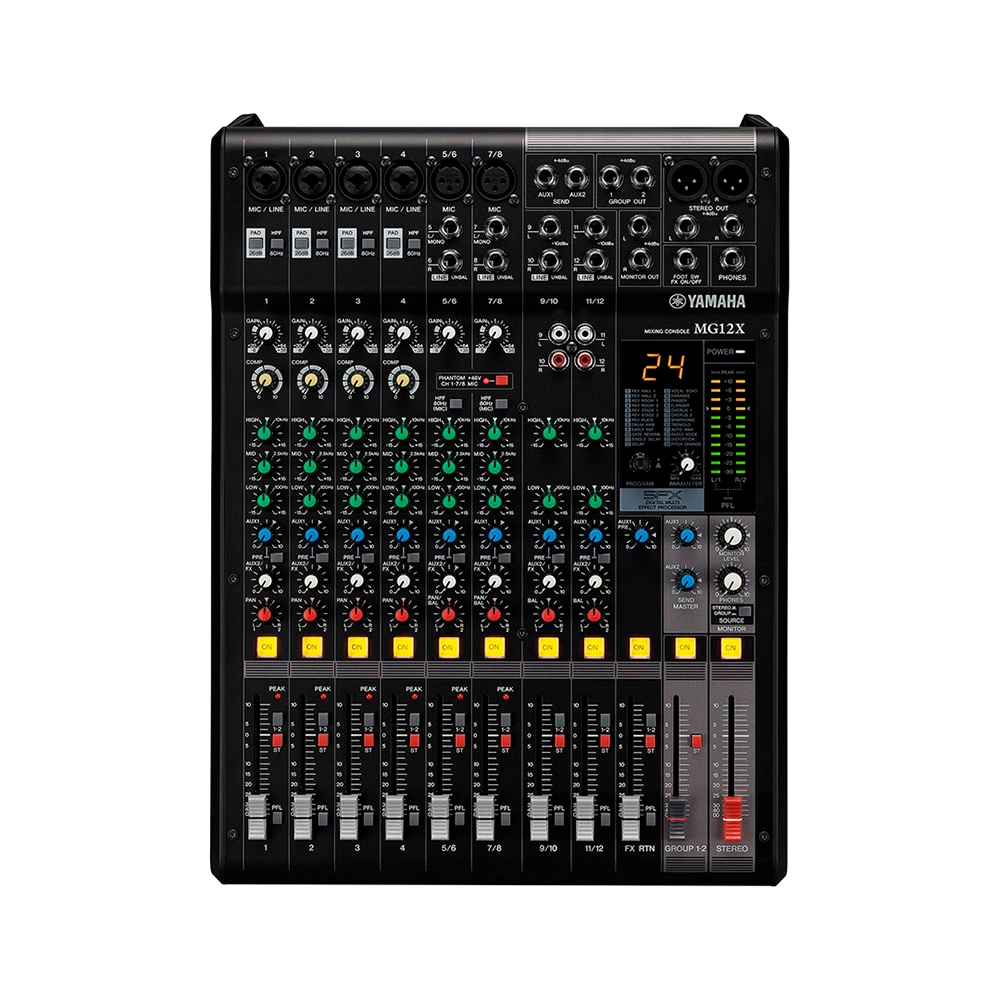

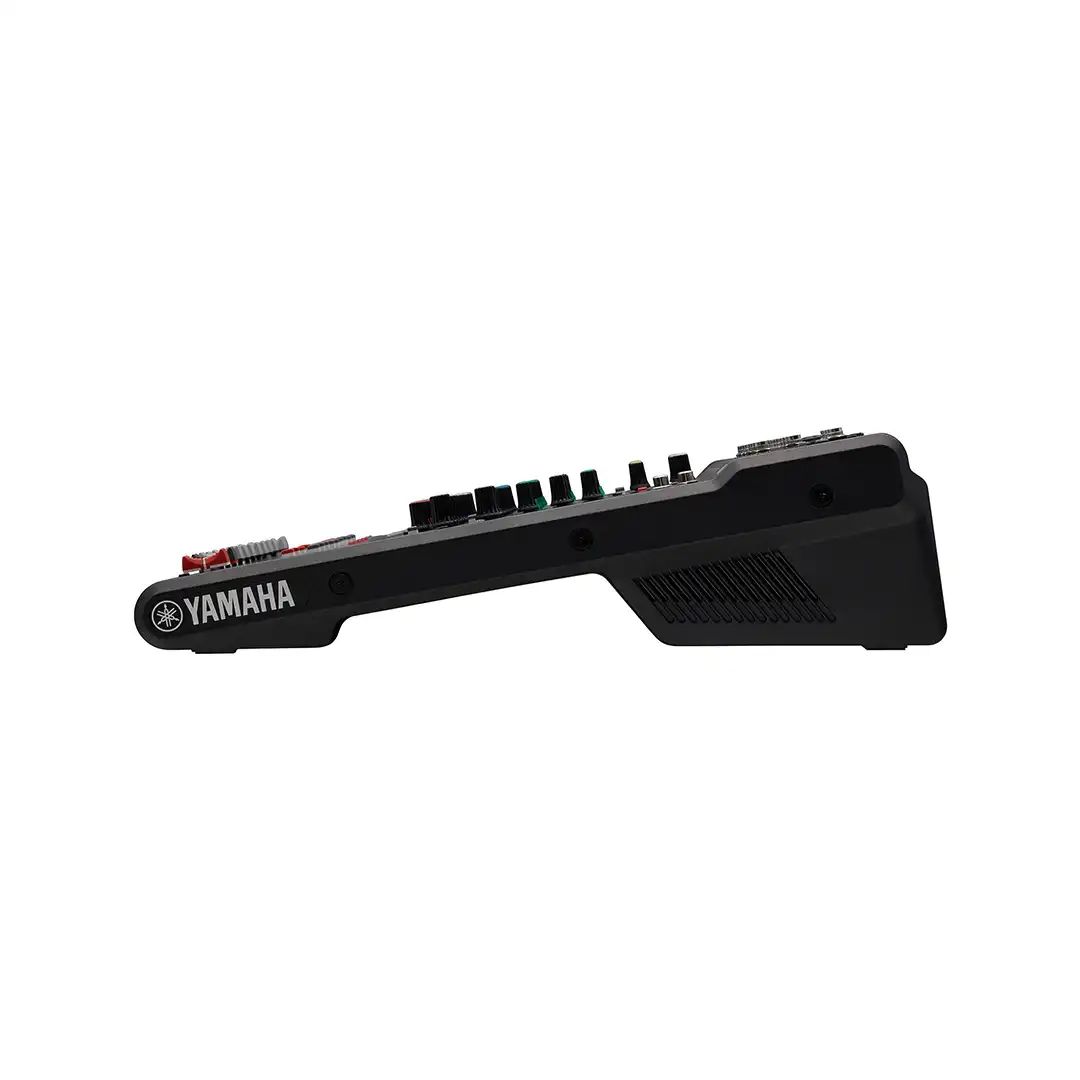

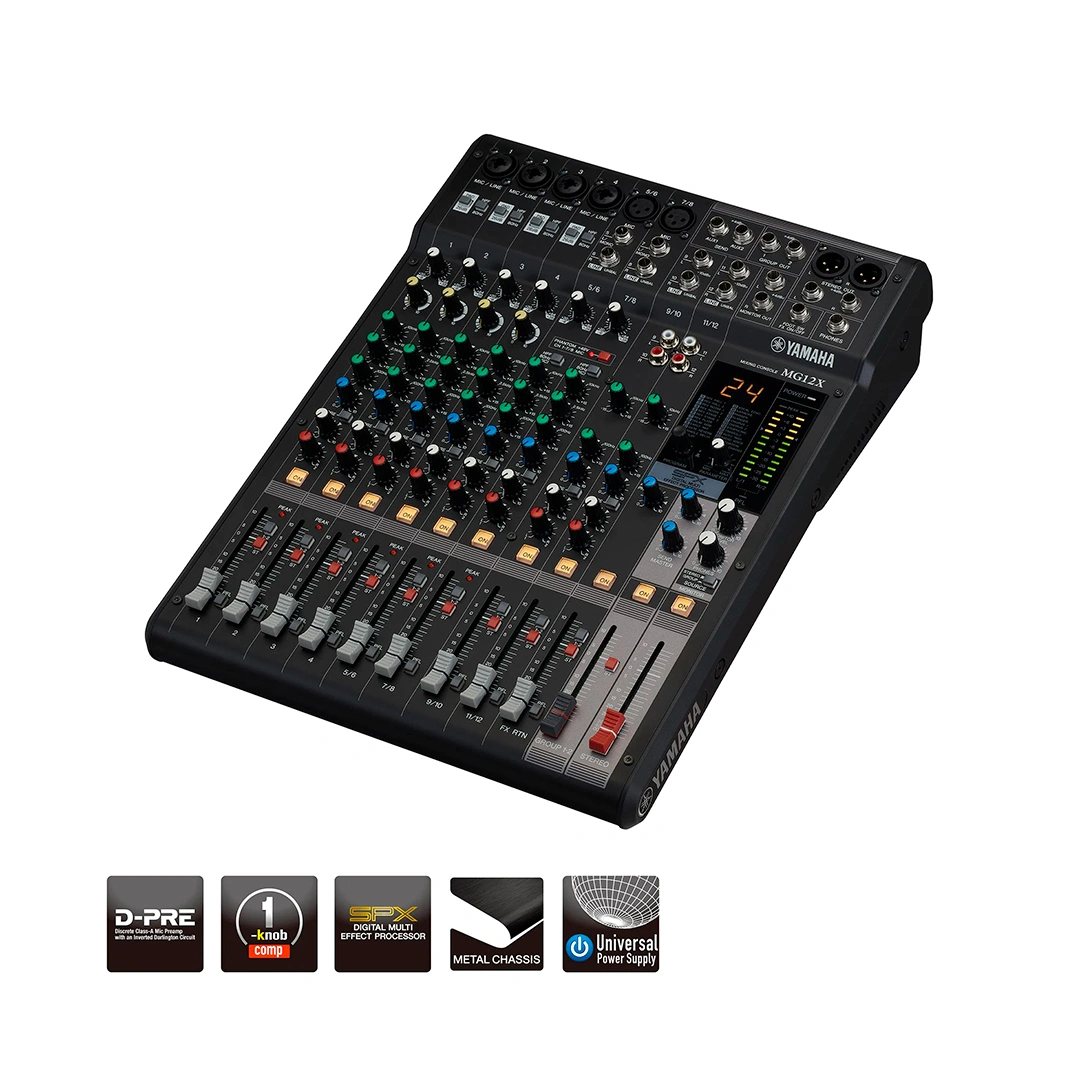

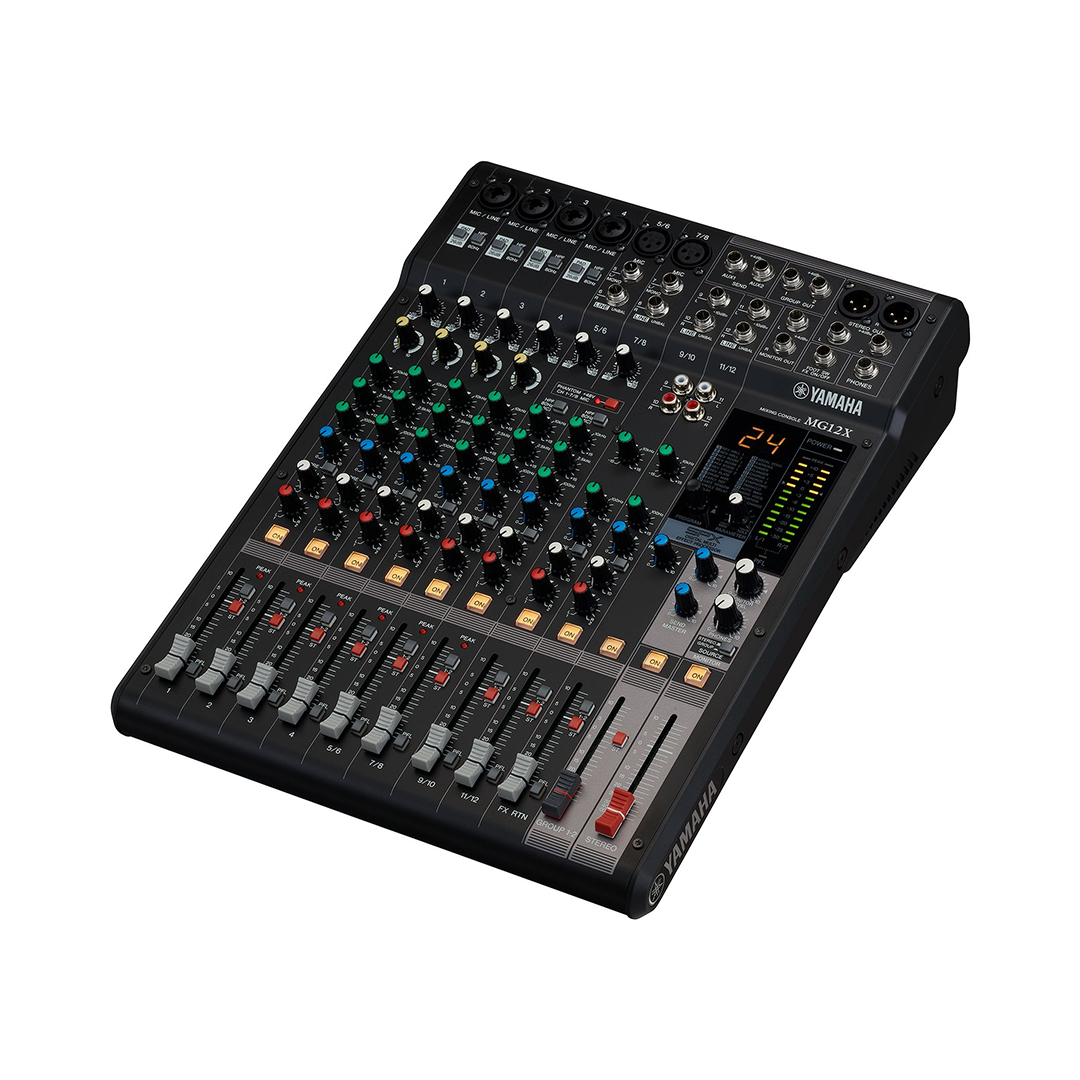

Home Professional Audio Mixing Console Yamaha MG12X Mixing Console
₹36,900

Inclusive of all taxes

No Cost EMI available for this product - T&Cs

  • 12-Channel Mixing Console
  • Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
  • 2 GROUP Buses + 1 Stereo Bus
  • 2 AUX (incl. FX)
  • Å“D-PRE mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Internal universal power supply for world-wide use
  • Optional Rack Mount Kit RK-MG12 Available
  • Metal chassis
  • Dimensions(W”H”D): 308 mm x 118 mm x 422 mm (12.1" x 4.6" x 16.6")
  • Net Weight: 4.2 kg (9.3 lbs.)

MG 12X is having 12-Channel Mixing Console: Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo) / 2 GROUP Buses + 1 Stereo Bus / 2 AUX (incl. FX). suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

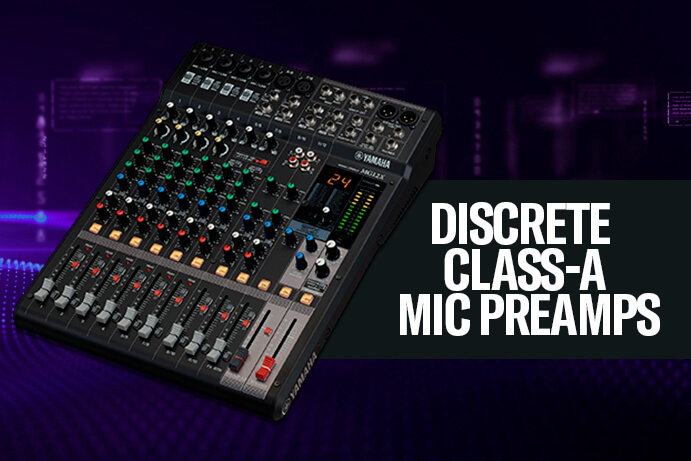

Discrete Class-A Mic Preamps:

Everything you do as a sound engineer is dependent on the quality of your preamps, which determines the direction your mix will take, and ultimately how good it is going to sound. MG Series mixing consoles feature Yamaha's studio-grade discrete class-A D-PRE preamps, which utilize an inverted Darlington circuit comprising two cascading transistors in a configuration that provides more power with lower impedance.

Discrete Class-A Mic Preamps:

Everything you do as a sound engineer is dependent on the quality of your preamps, which determines the direction your mix will take, and ultimately how good it is going to sound. MG Series mixing consoles feature Yamaha's studio-grade discrete class-A D-PRE preamps, which utilize an inverted Darlington circuit comprising two cascading transistors in a configuration that provides more power with lower impedance.

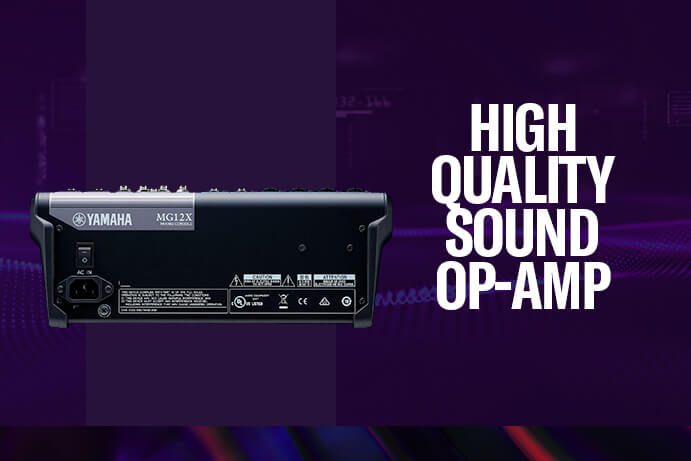

High Quality Sound Op-amp:

The head amp determines sound quality, and op-amp integrated circuits are one of the most important parts in the head amp circuit.

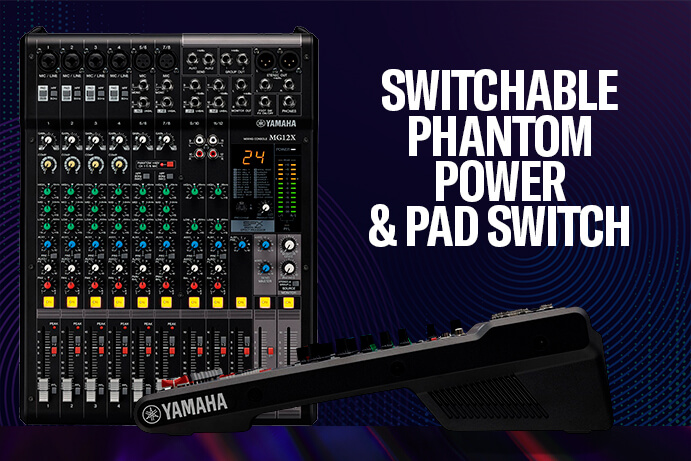

Switchable Phantom Power & PAD Switch:

With phantom power, MG Series consoles allow you to take full advantage of the greater frequency response and high sound quality of condenser microphones.

Switchable Phantom Power & PAD Switch:

With phantom power, MG Series consoles allow you to take full advantage of the greater frequency response and high sound quality of condenser microphones.

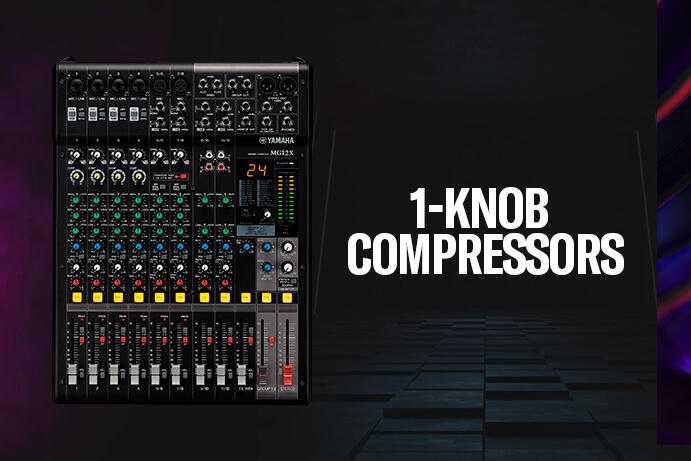

1-knob Compressors:

Originally a Yamaha innovation, 1-knob compressors are now an industry standard that gives you instant access to optimized compression settings via a single rotary control.

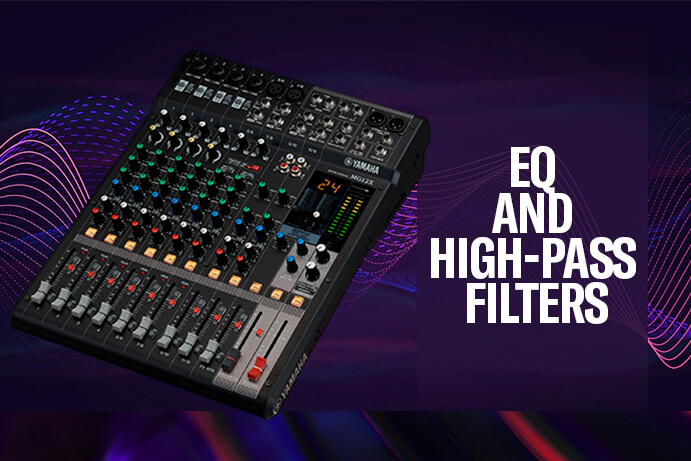

EQ and High-pass Filters:

The MG Series benefits from Yamaha's unparalleled experience in designing pro audio gear, featuring 3-band equalizers on all mono channels for precise control of your sound. High-pass filter allows you to eliminate unwanted low-frequency noise, for a smoother, cleaner mix.

* MG06 / 06X feature 2-band equalizers on all mono channels.

EQ and High-pass Filters:

The MG Series benefits from Yamaha's unparalleled experience in designing pro audio gear, featuring 3-band equalizers on all mono channels for precise control of your sound. High-pass filter allows you to eliminate unwanted low-frequency noise, for a smoother, cleaner mix.

Country of origin: Malaysia
Importer Details: Yamaha Music India Pvt. Ltd ; Unit No. 601∼608, 6th Floor, Tower-D,Global Business Park, Sector-26,Mehrauli-Gurgaon Road,Gurugram-122002 Haryana, India
More Information
Technical Specifications
Mixing capability On-board processors SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
I/O Phantom power +48 V
Digital I/O -
Input Channels Mono[MIC/LINE] 4
Mono/Stereo[MIC/LINE] 2
Stereo[LINE] 2
Output Channels STEREO OUT 2
MONITOR OUT 1
PHONES 1
AUX SEND 2
GROUP OUT 2
Bus Stereo: 1, GROUP: 2, AUX: 2 (incl. FX)
Input Channel Function PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
Total harmonic distortion 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk -78 dB
Power requirements AC 100 – 240 V, 50 / 60 Hz
Power consumption 22 W
Dimensions W 308 mm (12.1")
H 118 mm (4.6")
D 422 mm (16.6")
Net weight 4.2 kg (9.3 lbs.)
Accessories Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Optional Accessory: Rack-mount kit RK-MG12, Foot Switch FC5
Others Operating Temperature: 0 to +40˚C



  • 0 dBu = 0.775 Vrms Output impedance of signal generator (Rs) = 150Ω
  • All level controls are nominal if not specified.
  • Hum & noise level: Noise is measured with A-weighting filter.
  • Crosstalk: Measured with 1 kHz band pass filter.
