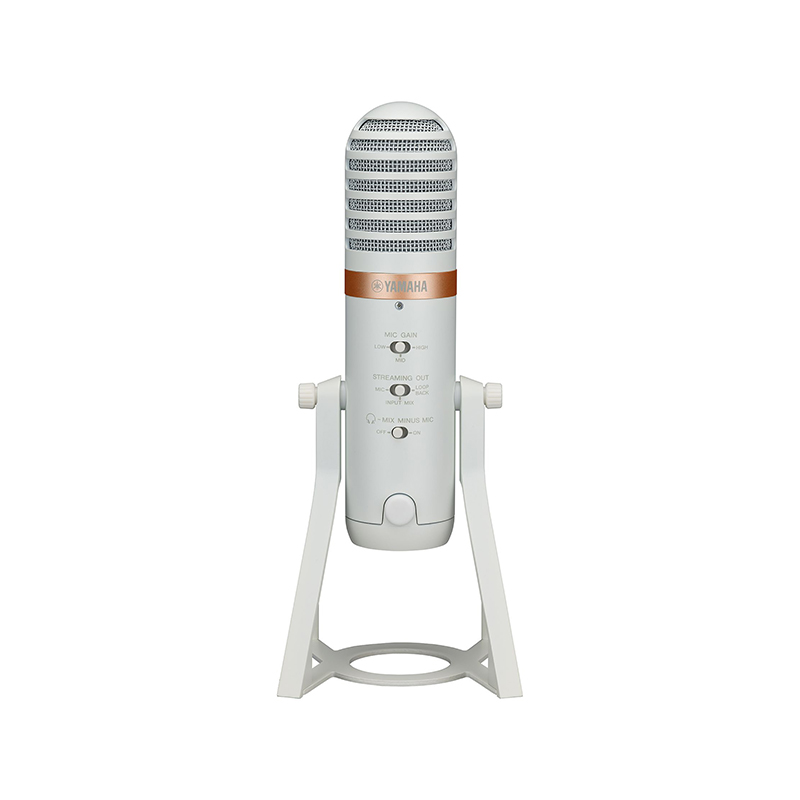

Check DeliveryAG01 is a Live Streaming USB microphone integrated with high performance mixer. The minimalist design of the AG01 takes this into account by combining a high-quality condenser microphone with onboard DSP effects, a LOOPBACK function, flexible input connectivity, and a simple, intuitive mixer for effortless management of your audio and stress-free operation of your streaming solution.

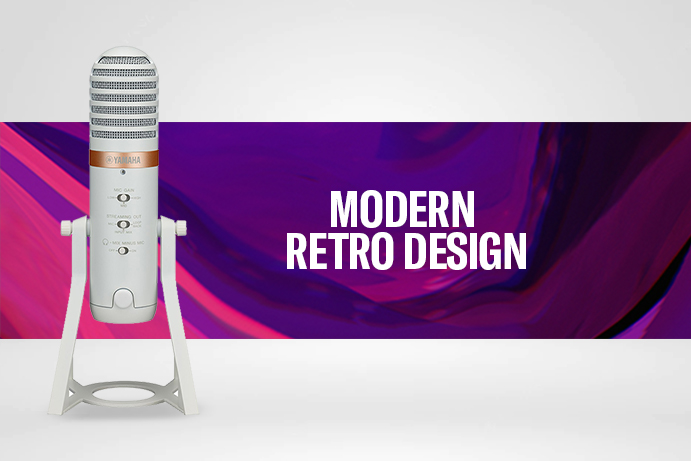

In most streaming applications your microphone is likely to feature prominently onscreen so it is important for it to complement your overall vision. With a unique and iconic design that blends classic and contemporary aesthetics, the AG01 looks as good as it sounds, offering both black and white-based models to suit your preference.

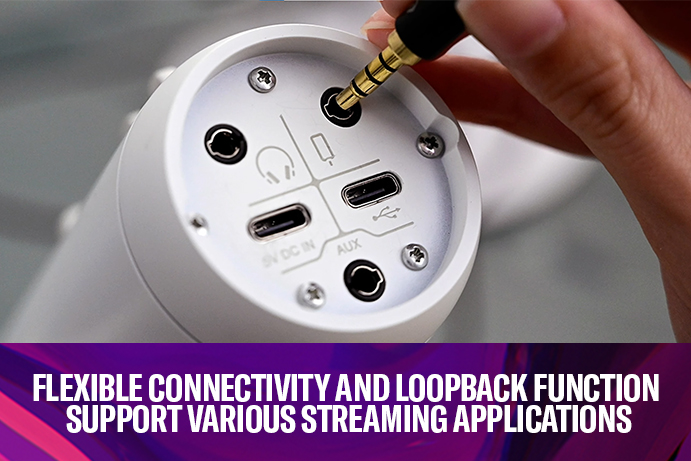

In addition to the condenser microphone audio input, the AG01 is equipped with a mini stereo line input jack, and an upgraded 4-pole mini jack (TRRS) for smartphones that allows input and output. You can also add audio from devices connected via USB in LOOPBACK mode. Combined with these features, this microphone-type model can cover a wide variety of streaming styles that could not be achieved in the past without a separate mixing device.

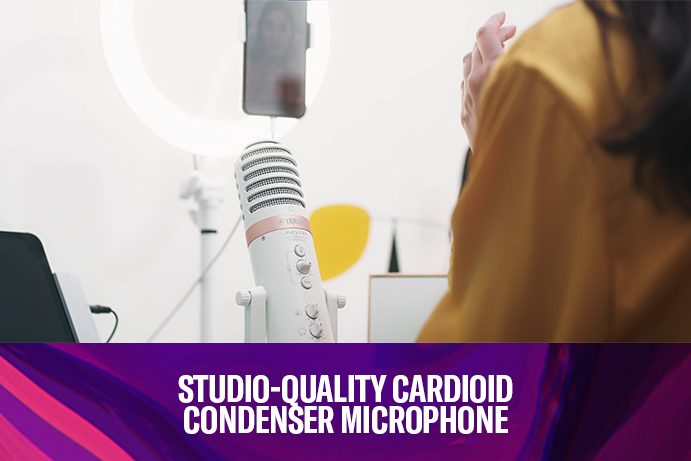

The AG01's high-performance condenser microphone utilizes a cardioid polar pattern that captures your voice or musical instrument performance precisely, and converts it into high resolution audio (192kHz, 24bit) while blocking out unwanted ambient noise from the rear or sides.

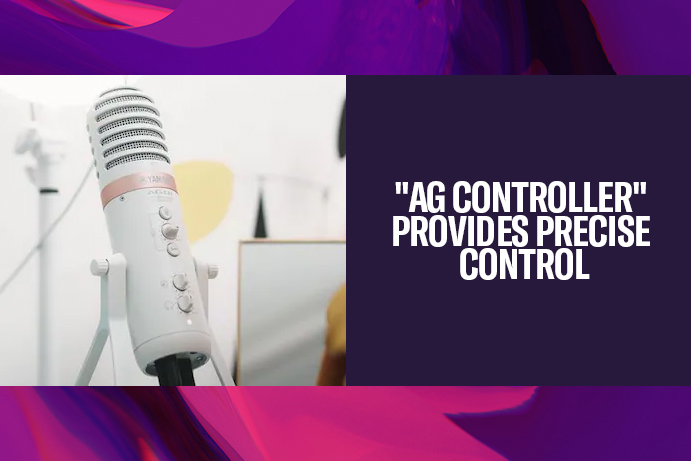

AG Controller offers two modes, "Simple" and "Detail," which allow users with varying degrees of audio engineering experience to easily and precisely check and adjust the AG’s DSP processing from any Windows/Mac or iOS device connected via USB.
The AG01 can be easily placed on a desk or any flat surface with its dedicated stand, or mounted on a desk arm, making it adaptable to almost any environment.
It can also be used in combination with a mobile battery allowing you to take your fully functioning streaming station anywhere you like.
*For stable operation of the AG01, a power supply of DC 5V 900mA or more is required.
AG01 comes bundled with Cubase AI music production software, as well as WaveLab Cast for audio production and editing. The AG01 is also compatible with Rec'n'Share and Cubasis LE applications for iOS devices which are available free of charge from Yamaha and Steinberg to support and inspire your audio content creation.
| AG01 | ||
|---|---|---|
| Microphone | ||
| Microphone Unit | Back electret condenser type | |
| Polar Pattern | Cardioid | |
| Adress Type | Side | |
| Frequency Response | 30 Hz - 20 kHz | |
| Max Input SPL | 110 dB (THD ≦1.0% at 1 kHz) | |
| Sensitivity | -34 dB ± 3 dB (0 dB=1 V/Pa, at 1 kHz) | |
| Connector | USB Type-C | |
| Outline | ||
| Input Channels | Microphone | 1 (Mono condenser microphone) |
| AUX | 1 - Stereo mini | |
| Smartphone | 1 - 4-pole mini input/output (TRRS) | |
| USB | 1 | |
| Output Channels | PHONES | 1 - Stereo mini |
| Smartphone | 1 - 4-pole mini input/output (TRRS) | |
| USB | 1 | |
| Bus | 1 Stereo | |
| Functions | MIC GAIN (HIGH / MID / LOW), MUTE button x 1, STREAMING OUT (MIC / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF) | |
| On-board processors | DSP | COMP/EQ, REVERB (SPX Reverb) *Detail is Controlled on AG Controller |
| USB | USB Audio | 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C |
| USB DC Power input | 1 - Type-C, 5 V DC, 900 mA | |
| General specifications | ||
| Power requirements | 5 V DC, 900 mA | |
| Power consumption | Max. 4.5 W | |
| Dimensions | W | 116 mm (4.6") |
| H | 281 mm (11.1") | |
| D | 118 mm (4.6") | |
| Net weight | 1.2 kg (2.6 lbs) | |
| Included Accessories | USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information | |
| Others | Operating Temperature: 0 to + 40 ℃ | |
Country of origin: Malaysia
