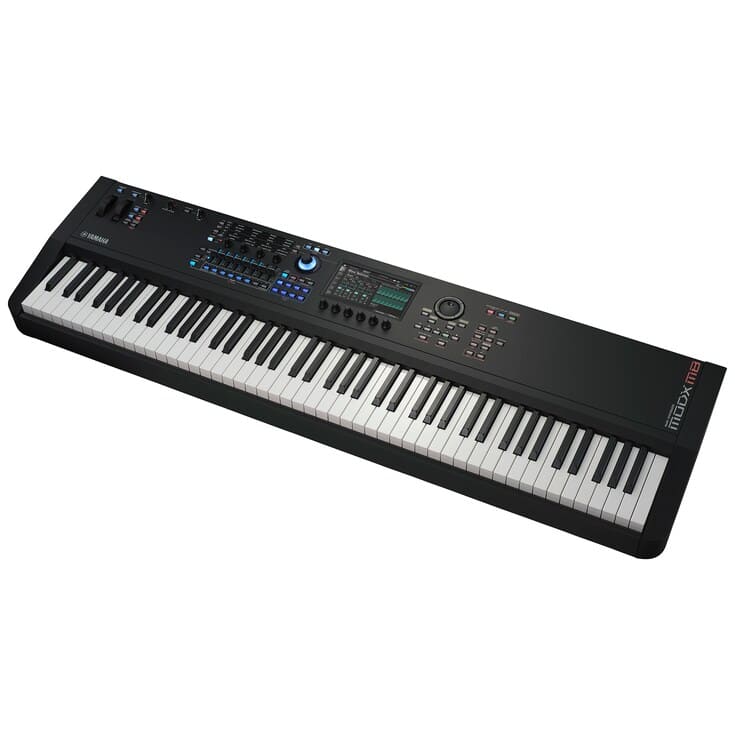

Built for working pianists, the 88-key MODX M8 synthesizer delivers exceptional sound, expressive control, streamlined workflow, and realistic graded-hammer action in a compact, lightweight design. Featuring three engines that create a stunning variety of sounds, as well as shared DNA from our flagship MONTAGE M, MODX M elevates expression everywhere.
Integrated into the Motion Control system, the AN-X Engine allows you to create expressive, unique analog sounds.
Experience realism and detail with the MODX M Advanced Wave Memory (AWM2). Offering up to 128 Elements per Part, AWM2 allows for more layers and articulations, giving you an expansive canvas for sound creation, especially for “nameable” sounds such as piano and strings.
MODX M offers up to 268 notes of polyphony across its three engines:
You’ll find dedicated Part and Scene Selection buttons to control 8 Parts per Performance. Particularly beneficial for live performances, this intuitive control improves overall usability and adds dimension to each Performance.
The MODX M Knobs, Super Knob, Pitch Bend, Mod Wheel, and Sound Engine – are now High Resolution. Because of the fine resolution, you’ll find the MODX M performs smoother than its predecessors.
Experience a new level of sound design with this groundbreaking engine. You’ll interact with sound like never before using powerful tools such as:
Free for all registered MODX M owners, the Expanded Softsynth Plugin (ESP) replicates MODX M in your favorite Digital Audio Workstation (DAW). ESP lets you to create, edit and mix performances anywhere you happen to be – without the hardware – offering an unprecedented level of stage and studio integration.
*ESP for MODX M will be available from JAN 2026.
Upgraded navigation enables quick, intuitive sound editing and operation. You’ll find features like a color touch screen, 6 display knobs, and Stereo A/D input with 2 insertion effects.
Simplifying your studio setup, MODX M offers a USB MIDI and multichannel 10 output/4 input audio interface in 44.1kHz. Streamline MIDI recording, virtual instrument monitoring, and multi-track audio recording through a single USB cable, so you can spend more time being creative.
MIDI 2.0 delivers high resolution data for note velocity, Super Knob, pitch bend, modulation.
Cubase AI provides the basic tools for recording, editing and mixing - from the initial idea to the final masterpiece. It’s the perfect entry into the world of Digital Audio Workstations (DAW), offering powerful, yet easy-to-use software tools for all genres.
DEDICATED DAW REMOTE BUTTON: Use your MODX M as a hardware controller for DAWs such as Cubase, Logic, ProTools and Live. Control the mixer, transport, Softsynth plugins and more.
| MODX M8 | |||
|---|---|---|---|
| Dimensions | Width | 1,310 mm (51-9/16") | |
| Height | 152 mm (5-15/16") | ||
| Depth | 391 mm (15-3/8") | ||
| Weight | Weight | 13.6 kg (29 lb, 15 oz) | |
| Keyboard | Number of Keys | 88 | |
| Type | GHS Keyboard | ||
| Initial Touch | Yes | ||
| Aftertouch | No | ||
| Tone generator | Tone Generator | Motion Control Synthesis Engine AMW2: 128 Elements (max.), FM-X: 8 Operators, 88 Algorithms, AN-X: 3 Oscillators, 1 Noise | |
| Maximum Polyphony | AWM2: 128 (max.; stereo/mono waveforms), FM-X: 128 (max.), AN-X: 12 (max.) | ||
| Multi Timbral Capacity | 16 Parts (internal), Audio Input Parts (A/D*1, USB*1) *1 stereo Part | ||
| Wave | Preset: 10.7 GB (when converted to 16-bit linear format), User: 1.9 GB | ||
| Performance | 3,427 | ||
| Filter | 18 types | ||
| Effects | Reverb x 13 types, Variation x 88 types, Insertion A x 88 types*2, Insertion B x 89 types*3, Master Effect x 26 type, *2 A/D part insertion x 83 types *3 Part 2~16: 88 type, A/D part insertion x 83 types (Preset settings for parameters of each effect type are provided as templates) Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands) | ||
| Performance Recorder | Note Capacity | 1 Song/Pattern: Approx. 130,000 notes, Store area: Approx. 520,000 notes (Pattern); approx. 520,000 notes (Song) | |
| Note Resolution | 480 ppq (parts per quarter note) | ||
| Tempo (BPM) | 5 – 300 | ||
| Sequence formats | MONTAGE M/MODX M original format, SMF formats 0, 1 | ||
| Arpeggio | Parts: 8 Parts simultaneous (max.), Preset: 10,922 types or more, User: 256 types | ||
| Sequencer | Patterns | 128 patterns | |
| Pattern tracks | 16 Sequence tracks | ||
| Pattern Recording type | Real time replace, Real time overdub | ||
| Songs | 128 songs | ||
| Song tracks | 16 Sequence tracks, Tempo track, Scene track | ||
| Song recording type | Real time replace, Real time overdub, Real time punch in/out | ||
| Functions | USB audio interface | [Sampling Frequency = 44.1 kHz] Input: 4 channels (2 stereo channels), Output: 10 channels (5 stereo channels) [Sampling Frequency = 44.1kHz / 48kHz / 96kHz] Input: 2 channels (1 stereo channel), Output: 2 channels (1 stereo channel) | |
| Other | Controllers | Master Volume, A/D Input Gain knob, Pitch Bend wheel, Modulation wheel, Control Slider x 8, Knob x 4, Super knob, Display knob x 6, Portament knob, Data Dial, Assignable swich x 2, MSEQ trigger switch, Portamento switch, Keyboard hold switch | |
| Display | 7" TFT Color Wide VGA LCD touch screen | ||
| Connectors | USB [TO DEVICE], USB [TO HOST], MIDI [IN]/[OUT], FOOT CONTROLLER [1]/[2], FOOT SWITCH [SUSTAIN]/[ASSIGNABLE], OUTPUT [L/MONO]/[R] (6.3 mm, standard phone jacks), [PHONES] (6.3 mm, standard stereo phone jack), A/D INPUT [L/MONO]/[R] (6.3 mm, standard phone jacks) | ||
| Power Consumption | 19 W (When using PA-300C AC adaptor) | ||
| Accessories | AC adaptor: PA-300C, Quick guide, Cubase AI Download Information, Expanded Softsynth Plugin for MONTAGE M/MODX M Download Information, About downloading manuals, Welcome card | ||
| Live Sets | Preset: 256, User: 2,048 | ||
Country of origin: China
