Yamaha Stagepas 200 BTR Portable PA System

Yamaha Stagepas 200 BTR Portable PA System

MRP
₹ 69,400
Inclusive of all taxes

Offers

Bank Offer No Cost EMI is available on cart value
Save ₹4,995 Offer Details

free-shipping.pngCheck Delivery

Highlights

  • 180 W (HF: 30 W + LF: 150 W) Class-D amplifier
  • 1.4” HF + 8” LF high-quality coaxial compression driver
  • 5-channel digital mixer (3 monaural mic/line + 1 stereo line)
  • Main output multi-band compressor “MODE”
  • 1-knob EQ/preset for each channel
  • High-grade SPX digital reverb (4 program, parameter control), delay, chorus
  • Hi-Z input
  • Equipped with link-out/monitor out
  • Supplied rubber stand allows inclining at 30 or 60 degrees
  • Compatible with audio streaming via Bluetooth
  • Can be controlled remotely via an iOS or Android device using the dedicated STAGEPAS Controller app
  • Optional BTR-STP200 battery included
  • Optional CASE-STP200 carry case for convenient carrying

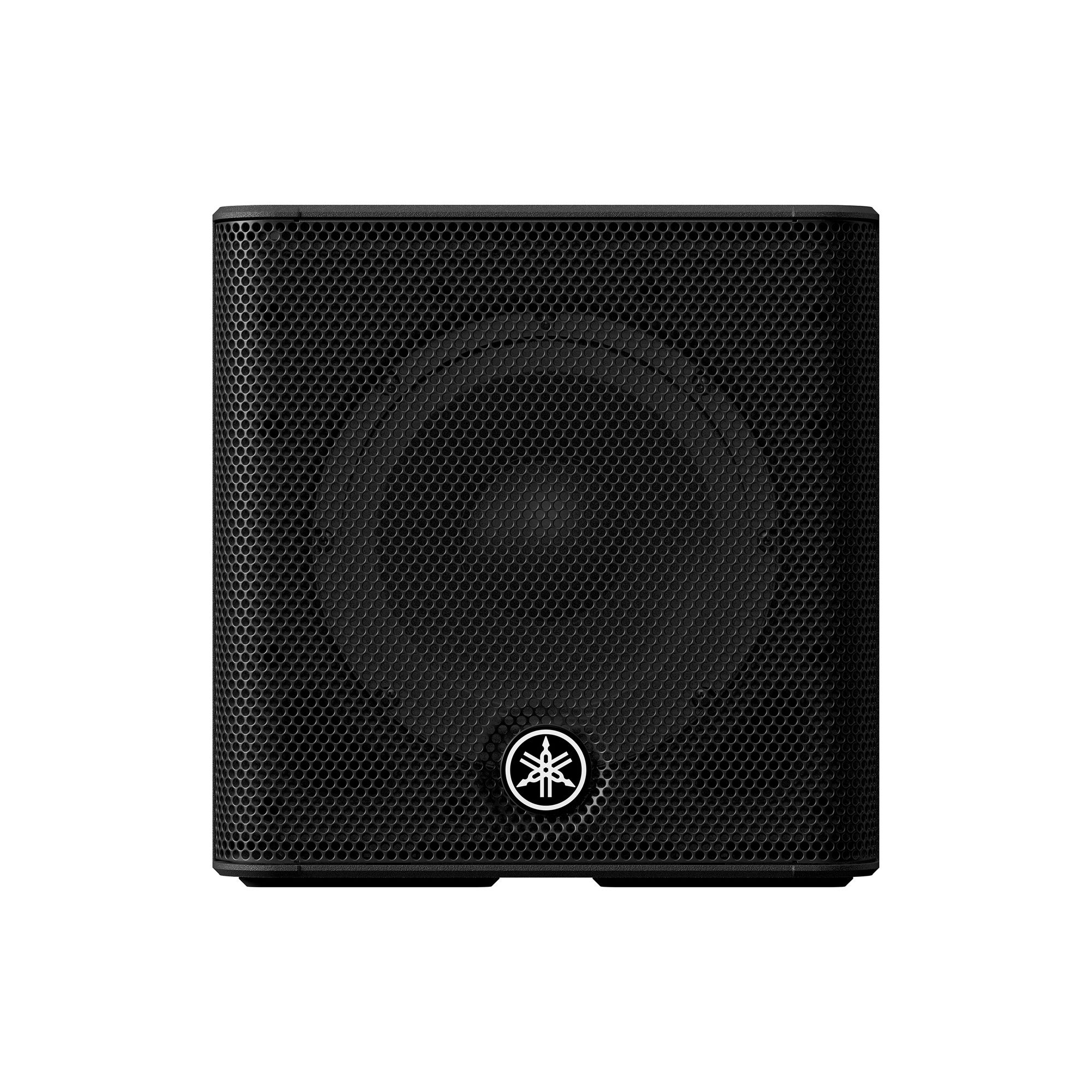

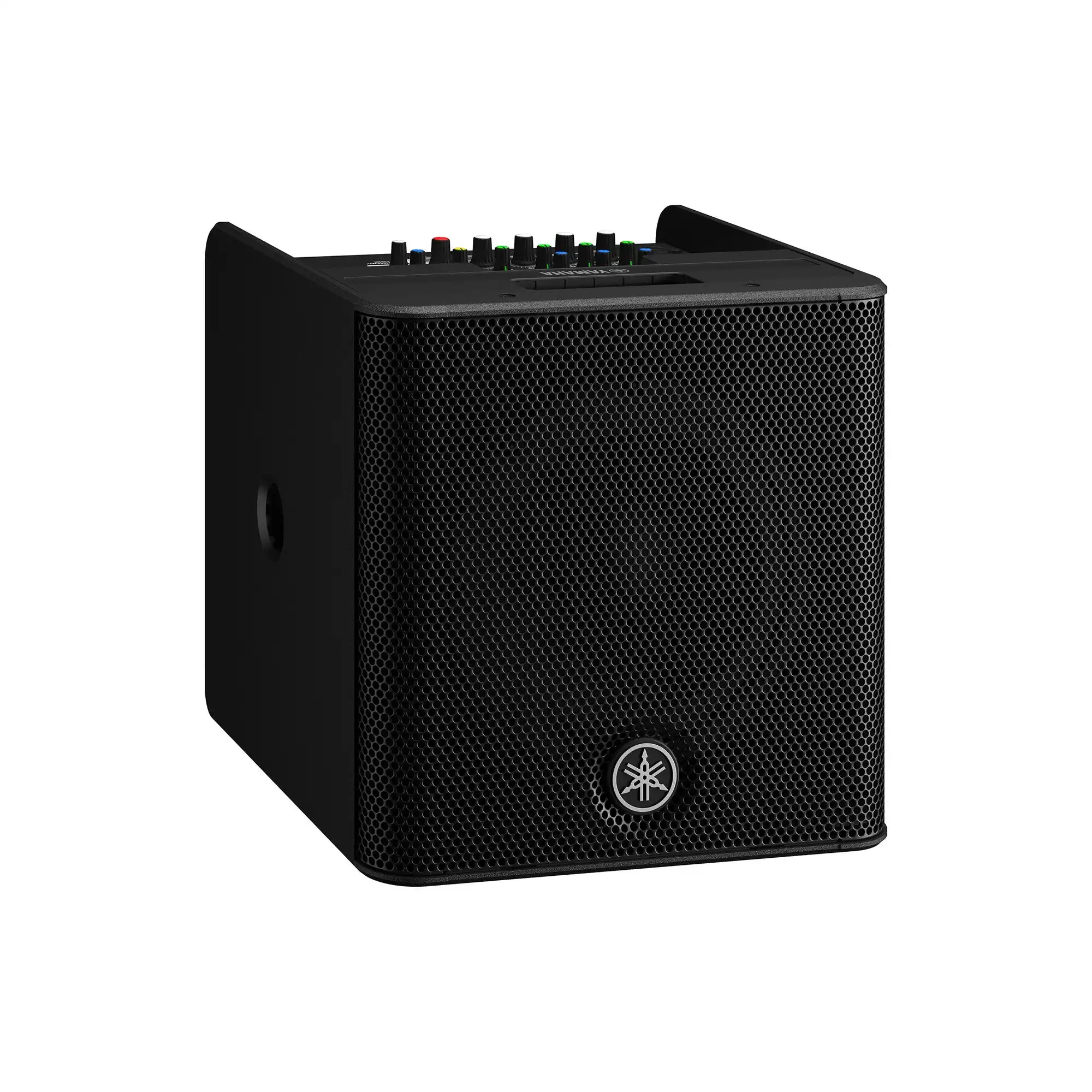

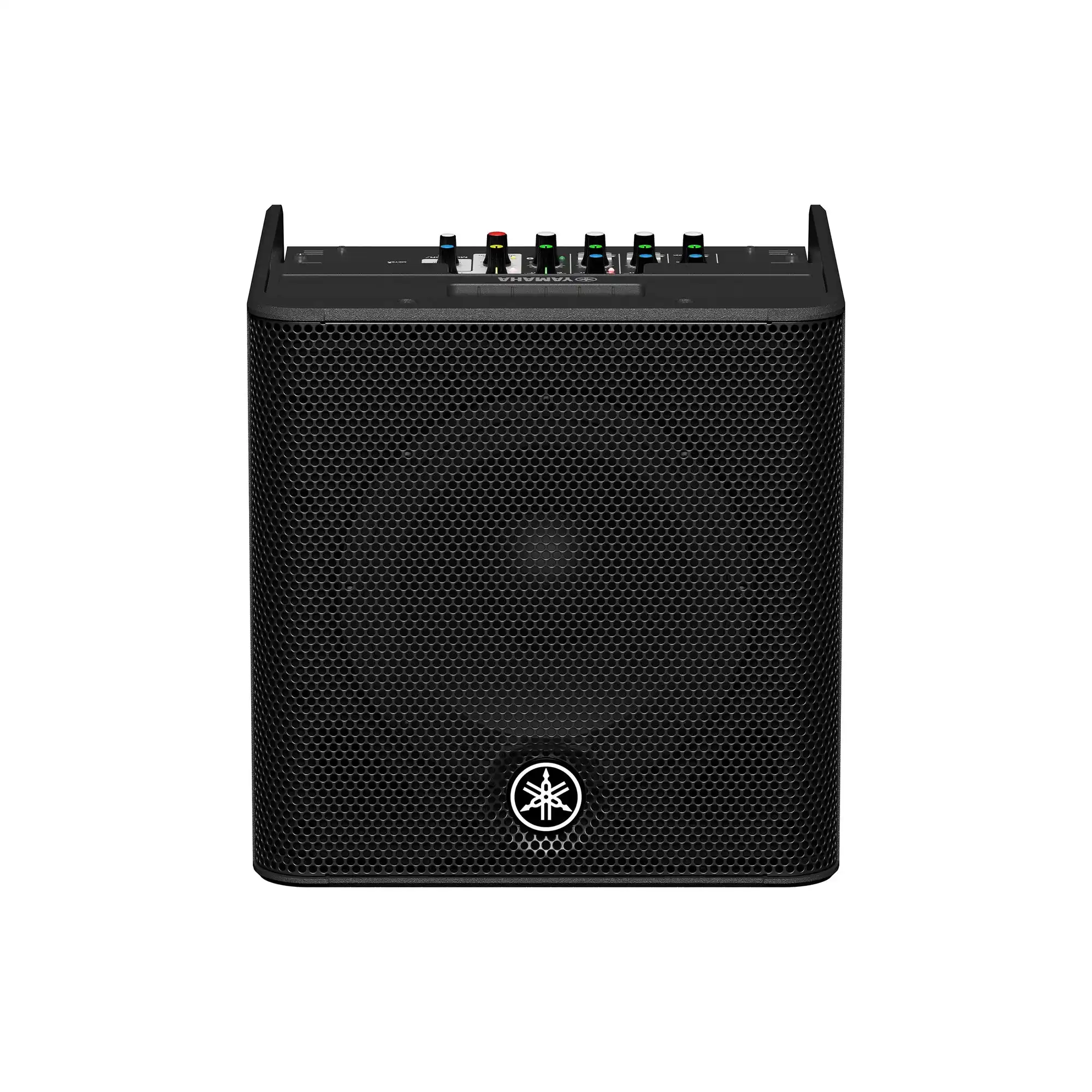

Yamaha portable PA system STAGEPAS 200 Overview

With astonishing high-quality sound and mixing capability far beyond what you would expect from its minimalist design, the STAGEPAS 200 is a premium portable PA system that performs well above its weight class. With fast, intuitive operation of crucial live sound features, and superb overall performance, your audience will be stunned by your sound, and likely puzzled by your diminutive setup.

MOVE THE AIR, MOVE YOUR AUDIENCE

MOVE THE AIR, MOVE YOUR AUDIENCE

With astonishing high-quality sound and mixing capability far beyond what you would expect from its minimalist design, the STAGEPAS 200 is a premium portable PA system that performs well above its weight class. With fast, intuitive operation of crucial live sound features, and superb overall performance, your audience will be stunned by your sound, and likely puzzled by your diminutive setup. The STAGEPAS 200 comes in two models— one with a high-capacity lithium-ion battery, the other compatible with optional batteries, giving you the flexibility to inspire performers and audiences alike in virtually any environment you choose, from street performances with 1-3 performers, to events, parties, and speeches.

Sound that astounds

Sound that astounds

Featuring a high-quality coaxial transducer design, the STAGEPAS 200 is capable of delivering best-in-class sound pressure, precise phase response, and a very natural dispersion of high frequencies. Adopting some of the same expertise used in our high-end Professional Audio gear, this mighty yet minimalistic powerhouse will stun your audience with the full dynamic range and response of your performance.

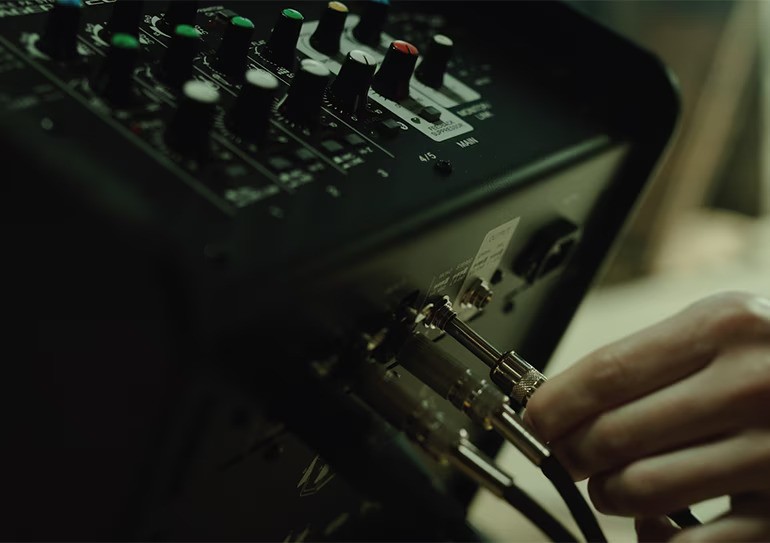

Mix it up

Mix it up

The STAGEPAS 200 puts a strong emphasis on its “all-in-one” designation offering all the connectivity, performance functions, and mixing capability you would ever need for small-scale duo or trio performances— all packed into a compact 300 mm cube-style cabinet. Equipped with a digital mixer that can be controlled remotely for up to 5 channels, 3 mic preamps, and a comprehensive range of practical functions you’ll be thankful to have at your disposal, the STAGEPAS 200 is without peer in the compact all-in-one PA market.

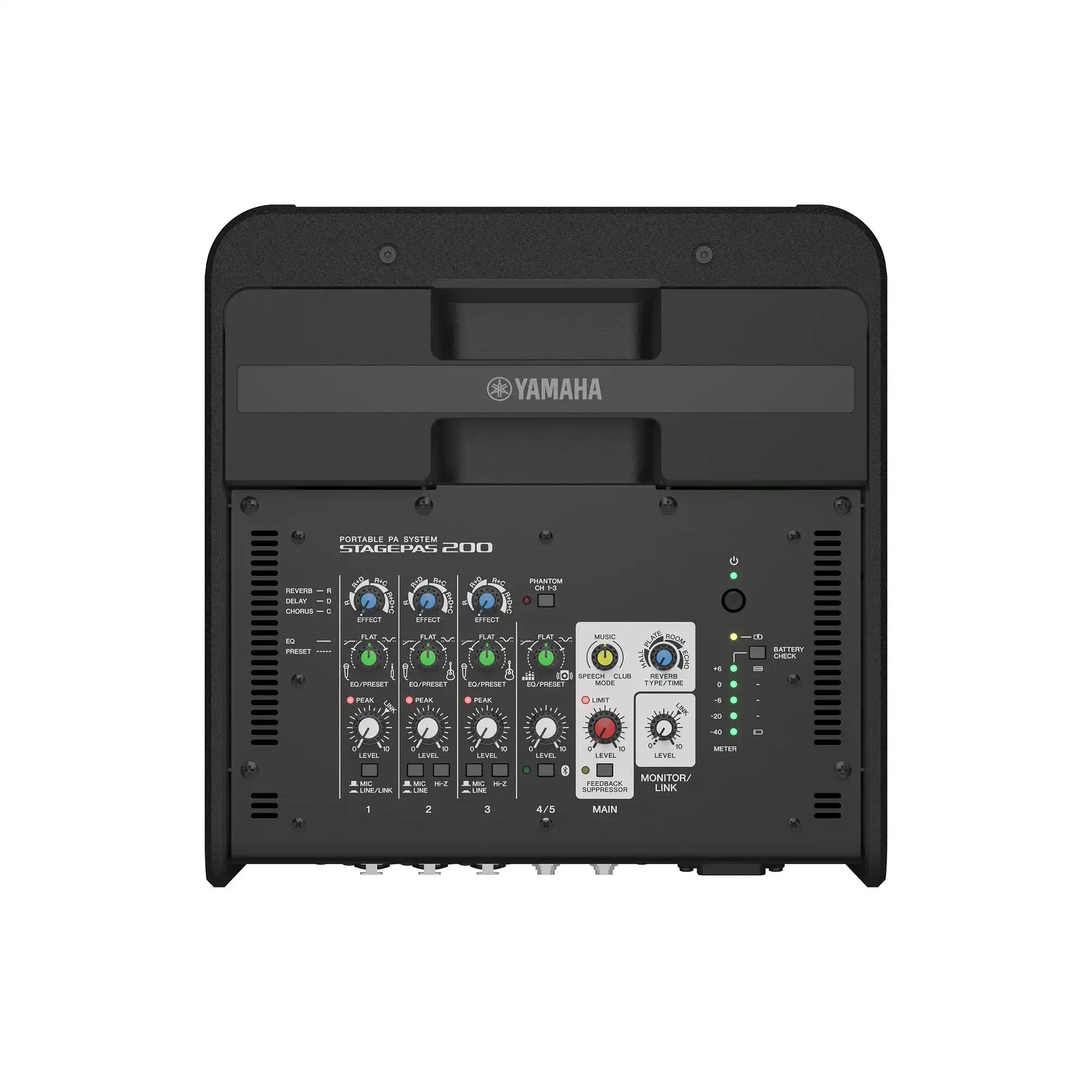

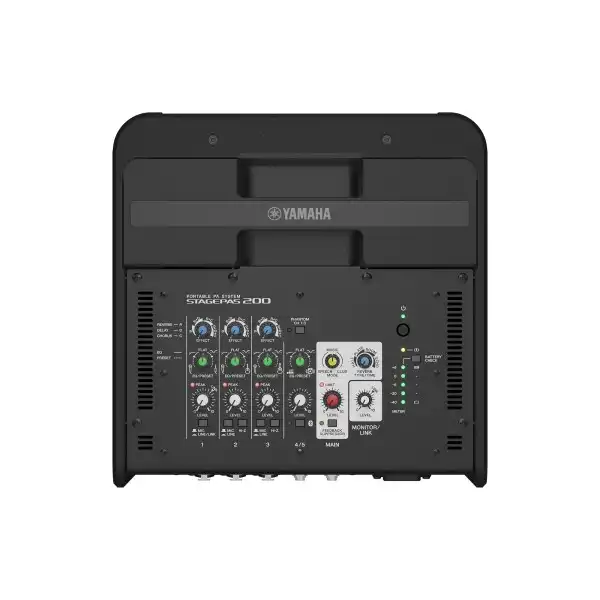

Dial in and vibe out

Dial in and vibe out

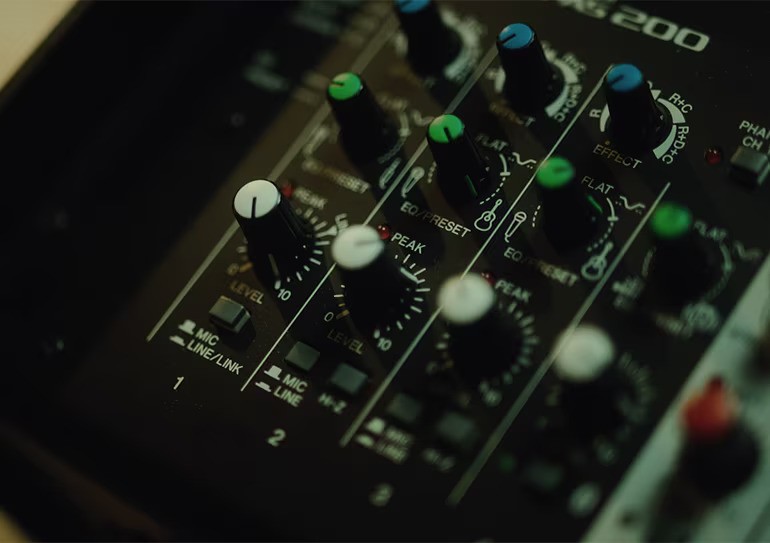

The simple, intuitive operation of the STAGEPAS 200 makes dialing in your ideal sound a painless— even enjoyable process. Each channel is equipped with a 1-knob EQ/preset and SPX digital effects, along with the master output MODE compressor, enabling fast yet powerful adjustments to your sound, while channels 2-3 feature microphone simulators included in 1-knob EQ/preset can also add instantaneous authenticity to acoustic guitars.

Smooth operator

Smooth operator

The STAGEPAS 200 is equipped with adaptive functions that will help alleviate anxiety about your sound and let you focus on performing your absolute best.

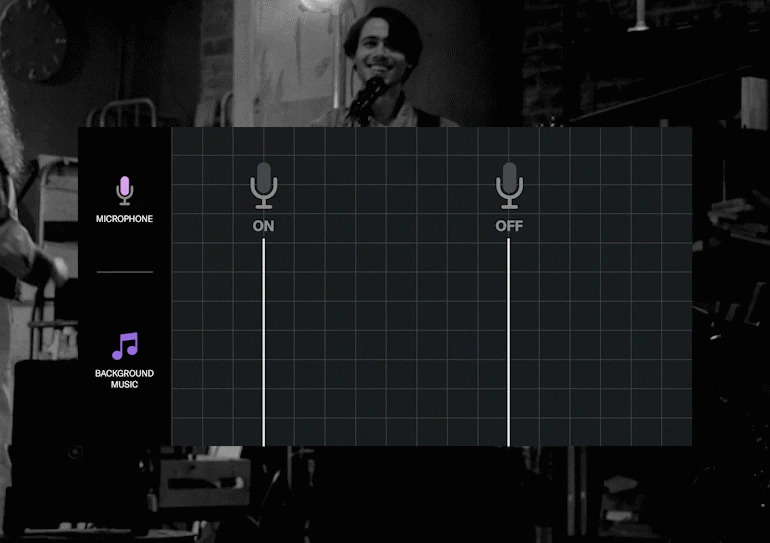

The onboard Priority Ducker will automatically attenuate background music or secondary signals when inputs from a primary microphone or a specific sound source is detected. Additionally, the intelligent feedback suppressor function will automatically eliminate unpleasant feedback that can be caused when a microphone picks up sound from a speaker, ensuring a more comfortable sonic experience for both you and your audience.

Convenient, creative remote control

Convenient, creative remote control

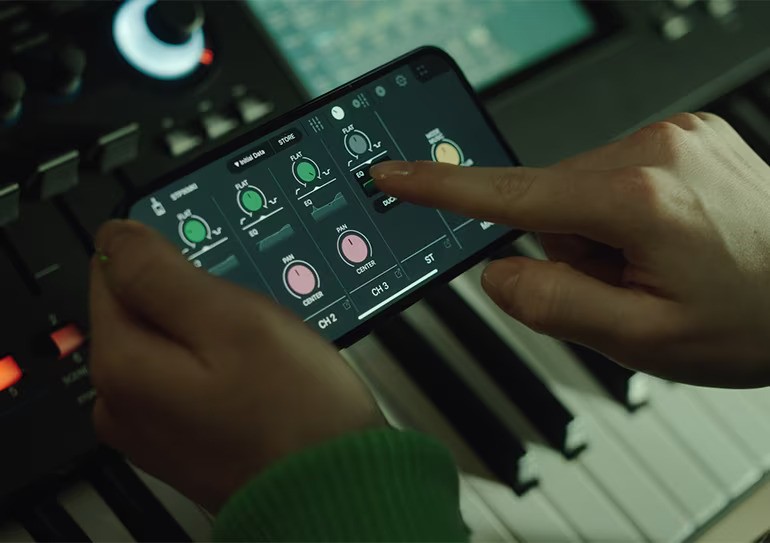

The STAGEPAS Controller app, for both iOS and Android devices, gives you real-time remote control of both volume and EQ. Additionally, the app allows for more precise adjustment detail than the main unit’s interface such as EQ, Reverb, Compressor, Microphone simulators, Ducker, etc. to maximize the capabilities of your STAGEPAS 200. You can save these settings in “scenes” stored on the app to be recalled any time for consistent sound and reduced setup time.

10 Hours of non-stop performance

10 Hours of non-stop performance

Compatible with a large-capacity lithium-ion battery allowing up to 10 hours of continuous operation, the STAGEPAS 200 reliably delivers excellent performance even in remote locations where no power source is available. The BTR-STP200 battery ships with the STAGEPAS 200BTR. It is also available separately.

Bluetooth® Connectivity

Bluetooth® Connectivity

Bluetooth functionality enables wireless connection for easy audio playback via smartphones and tablets. It also allows use of the dedicated STAGEPAS Controller app for mixer control and adjustment.

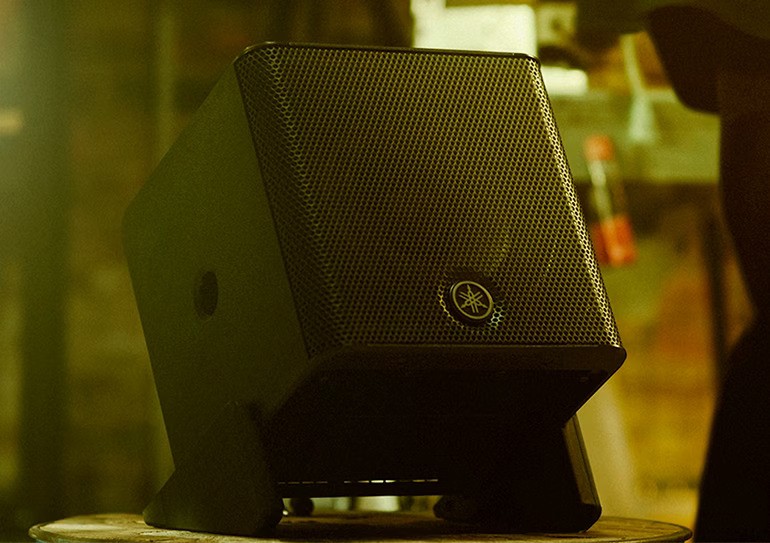

The right direction

The right direction

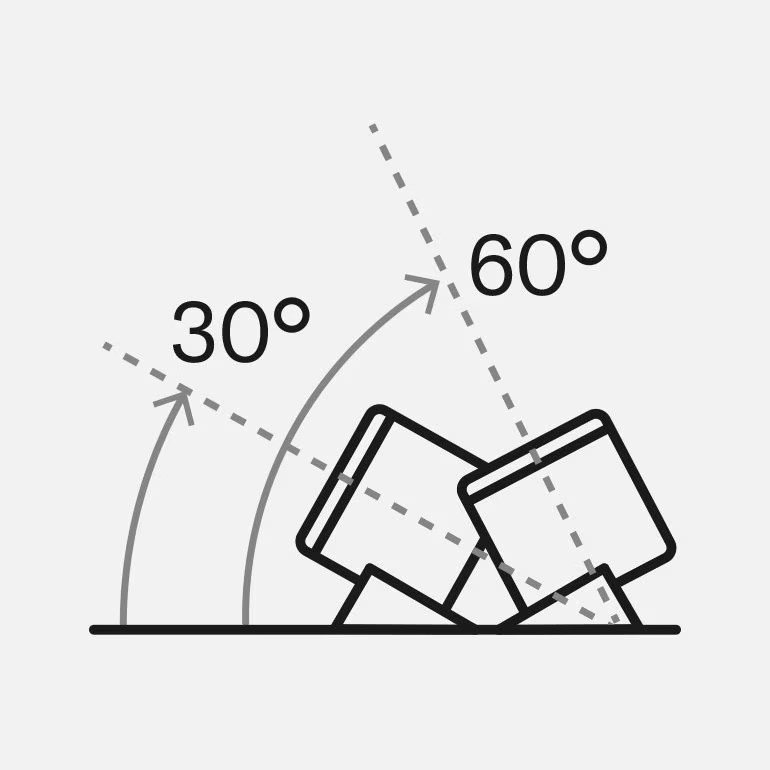

The rubber stand on the base of the cabinet lets you incline the unit at a 30 or 60 degrees tilt angle to adapt to your chosen performance environment or application. This allows placement of the STAGEPAS 200 facing the audience as a fill speaker, or towards the performers when using as a floor monitor.

Mounting possibilities

Mounting possibilities

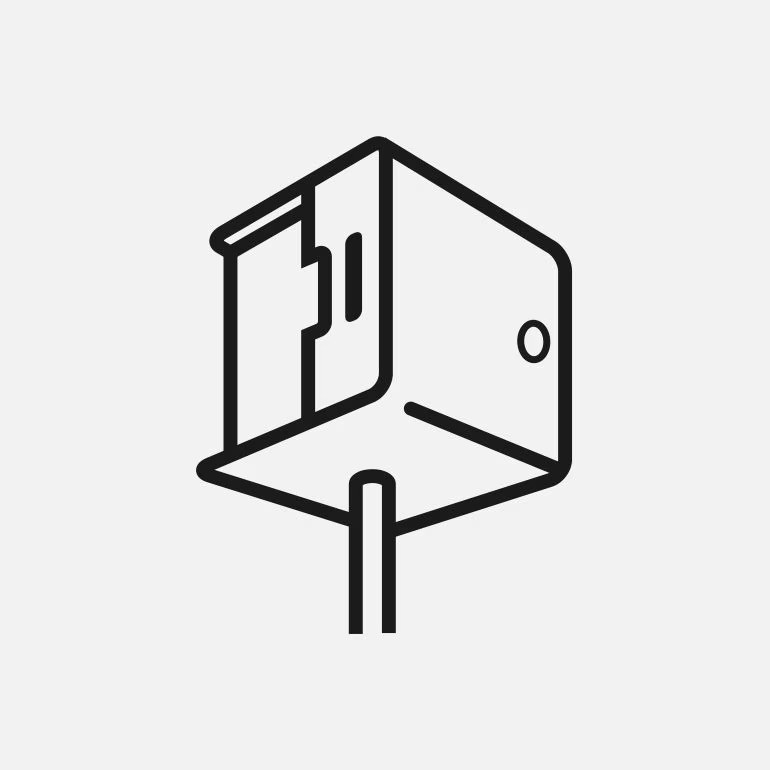

The bottom of the cabinet houses a 35 mm diameter pole mounting socket, allowing the STAGEPAS 200 to be mounted on a speaker stand or used in an installation with a subwoofer using a distance rod.

Whenever. Wherever.

Whenever. Wherever.

The optional dedicated CASE-STP200 carrying case is equipped with casters and large-capacity pockets for convenient transport to any location safely and easily.

STAGEPAS 200BTR
Outline
Type 2-way Bi-amp Powered Speaker witd mixer
Mixing capability Mixing channels 5 (Mono x3 + Stereo x1)
Input channel functions Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST
Output channel functions MODE (SPEECH/MUSIC/CLUB)

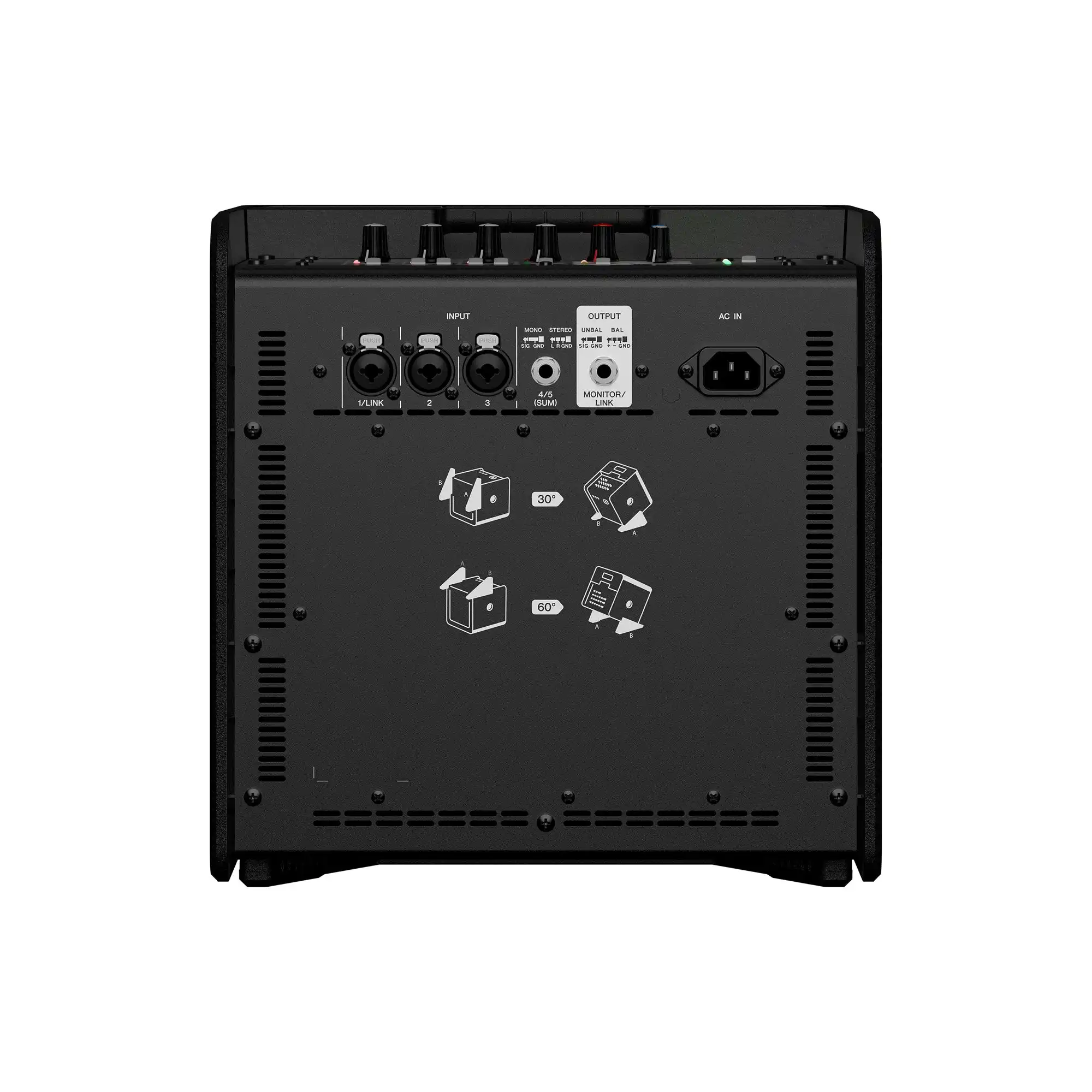

I/O Inputs Mono x3 (mic/line) + Stereo/Mono x1 (line)
Outputs Monitor/Link out x1
Bluetootd Ver.5.0, A2DP (SBC, AAC), Class 1
Control and otders STAGEPAS Controller (iOS/Android app)
On-board processors DSP SPX digital reverb (4 program, parameter control), delay, chorus
General specifications
Speaker type Coaxial speaker witd compression driver
Frequency range (-10dB) 60 Hz – 20 kHz
Coverage area H90゚ x V90゚
Crossover 2.0 kHz
Maximum output level (1m; on axis) 125 dB SPL *1
Components LF 8" Cone, 2.0" voice coil
HF 1" tdroat compression driver, 1.4" voice coil
Amplifier class Class-D
Power rating Dynamic 180 W (LF: 150 W, HF: 30 W)
Cooling Natural convection (no fan)
Power consumption 10 W (Idle), 20 W (1/8 power)
Power requirements 100-240 V 50/60 Hz, or 29.6 Vdc
Battery Type Rechargeable Litdium ion battery pack
Capacity 79.92 Wh (2700 mAh, 29.6 V)
Operating Time Maximum 10 hours, 1/16 power continuous 8 hours
Charging Time Approx. 4 hours
Cabinet material Plastic (ABS)
Handle Top x1
Pole socket Φ35 mm x1 (Side)
Floor Monitor Angle 30° or 60°
Dimensions (W x H x D) 300 x 308 x 301 mm (11.8" x 12.1" x 11.9")
Weight 12.5 kg (27.6 lbs) (Including battery)
Accessories Power cord x 1, Battery x 1
Options Battery: BTR-STP200, Carry case: CASE-STP200

Country of origin: China
